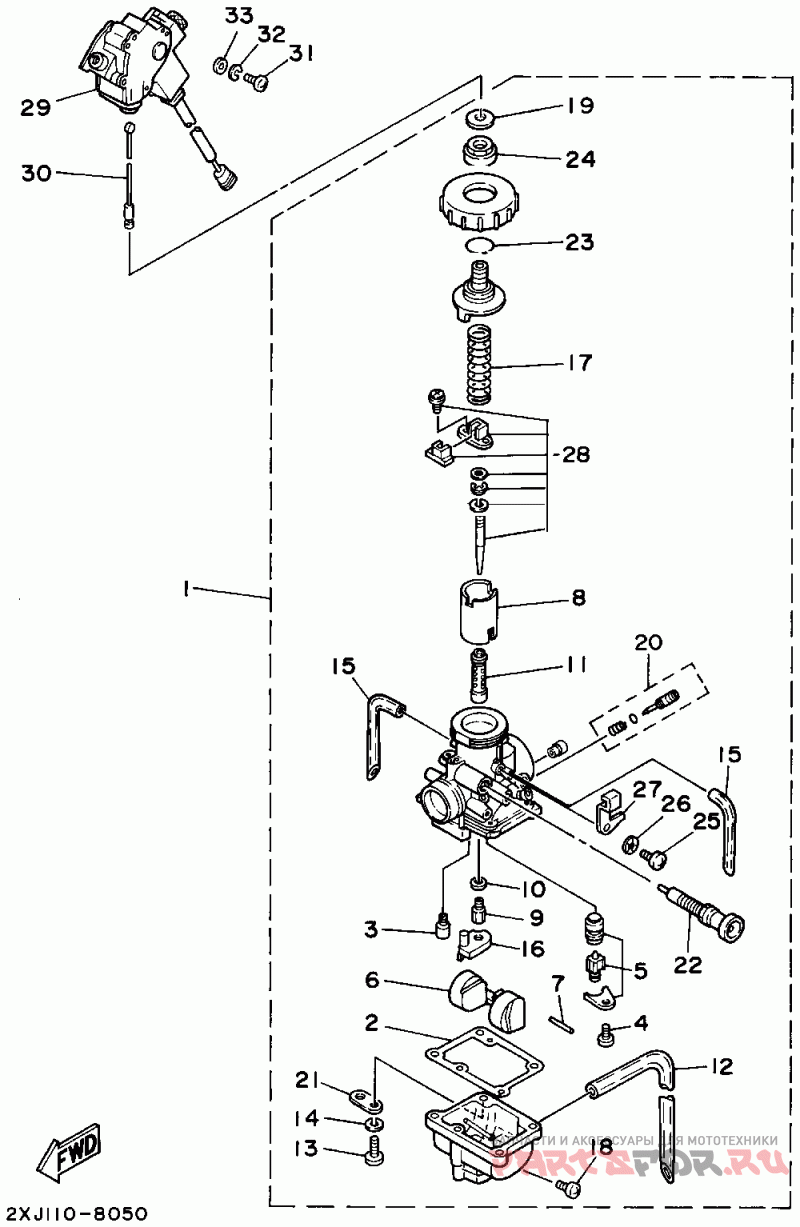

Карбюратор

Yamaha Blaster

Yamaha
#oem кодцена
1
2XJ-14101-01-00
Carburetor Assy 1 (u49)
2
304-14184-00-00
Gasket, Float Chmbr (u49)
3
260-14142-32-00
Jet, Pilot (32.5) (u49)
4
98580-04008-00
Screw, Pan Head (u49)
5
2MA-14107-28-00
Needle Valve Set (u49)
6
4L0-14185-00-00
Float (u49)
7
537-14186-00-00
Pin, Float (u49)
8
2XJ-14112-20-00
Valve, Throttle 1 (u49)
9
137-14143-46-A1
Jet, Main #230 (u49)
10
137-14153-00-00
Washer, Main Jet (u49)
11
4L0-14141-46-00
Nozzle, Main (u49)
12
90445-08684-00
Hose (u49)
14
92990-04100-00
Washer, Spring (u49)
15
4L0-14197-00-00
Pipe, Airvent (u49)
16
2GU-14153-00-00
Ring (u49)
17
248-14131-00-00
Spring, Thrtl Valve (u49)
18
12R-14191-00-00
Plug, Drain (u49)
19
256-14954-00-00
Washer (u49)
20
10W-14104-00-00
Air Screw Set (u49)
21
500-14146-00-00
Plate (u49)
22
2GU-14171-00-00
Plunger, Starter (u49)
23
558-14147-00-00
O-ring (u49)
24
2GU-14161-00-00
Nut, Cable Adjust. (u49)
25
98507-05008-00
Screw, Panhead(jn2 (u49)
26
92990-05100-00
Washer, Spring (u49)
27
2GU-14243-00-00
Plate, (left) For Left(u49)
28
2XJ-1490J-00-00
Needle Set (u49)
29
3JM-8259E-00-00
Switch Assy (u49)
30
2GU-2633K-00-00
Wire, Inner 1 (u49)
31
98507-03010-00
Screw, Panhead(3hhj (u49)
33
92907-03600-00
Washer(3sx) (u49)
