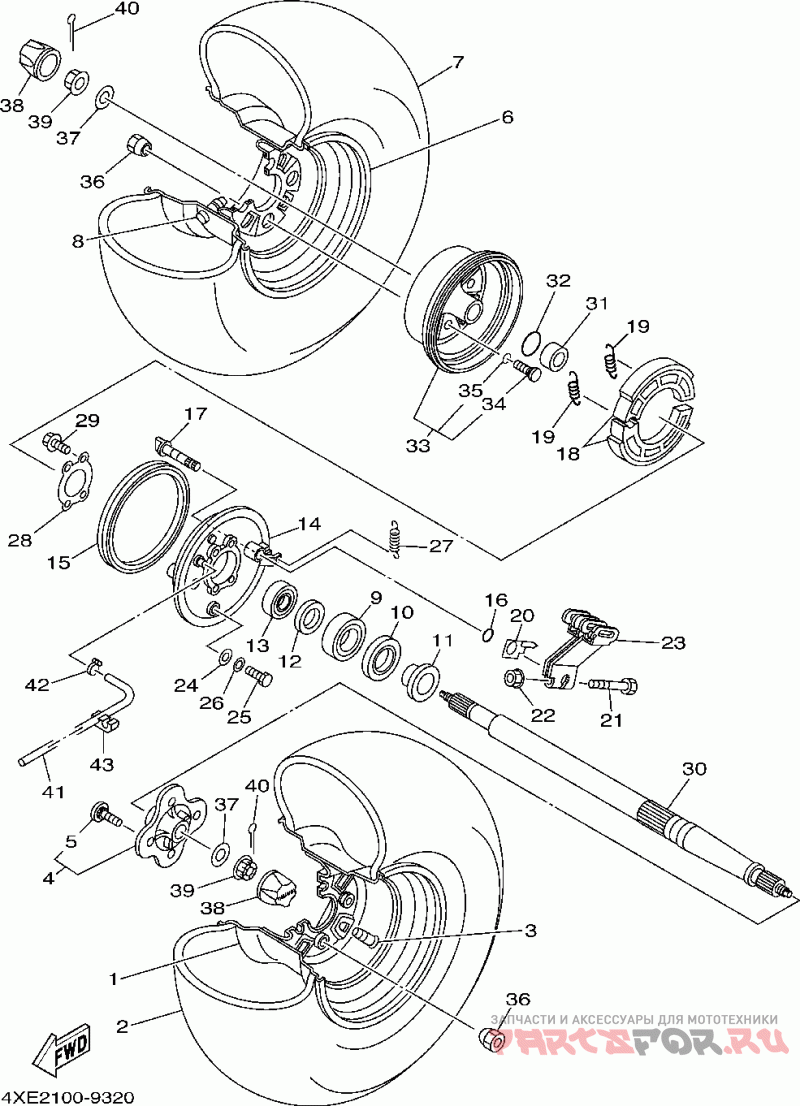

Заднее колесо

Yamaha BEAR TRACKER REALTREE-YFM250XP/YFM250XHP

Yamaha
#oem кодцена
1
4XE-F5390-20-00
Rear Rim (dk Silver) (usa)
2
94110-102Y3-00
At22x10-10* Dun Kt70 Ur Carlisle(usa)
3
93900-00810-00
Valve, Rim Ur Dunlop,carlsle(usa)
3
93900-00812-00
Valve, Rim Ur Cheng Shin(usa)
4
2HR-25383-01-00
Collar, Wheel (usa)
5
90114-10010-00
Bolt, (for Atv Wheel (usa)
9
93306-008Y0-00
Bearing (usa)
10
93106-47040-00
Oil Seal, Dd-type (usa)
11
4SH-25367-01-00
Cover, Hub Dust (usa)
12
93101-35097-00
Oil Seal, S-type (usa)
13
93306-278Y0-00
Bearing (usa)
14
4XE-F5321-00-00
Plate, Brake Shoe (r (usa)
15
4XE-F5129-00-00
Seal, Plate Dust (fro (usa)
16
4XE-F5816-00-00
Seal, Dust (usa)
17
4XE-F5351-00-00
Camshaft, Brake (usa)
18
4BD-W2536-01-00
Brake Shoe Set (usa)
19
4XE-F5133-00-00
Spring, Return (usa)
20
4XE-F513A-00-00
Plate, Indicator (usa)
21
4XE-F5833-00-00
Bolt, Fitting (usa)
22
95780-06500-00
Nut, Flange (usa)
23
4XE-F5355-00-00
Lever, Camshaft (usa)
24
4XE-F5898-00-00
Gasket (usa)
25
4XE-F5818-00-00
Bolt, Caliper (usa)
26
4XE-F5153-00-00
Shim, Camshaft (usa)
27
90506-12403-00
Spring, Tension (usa)
28
4XE-G6513-00-00
Retainer (usa)
29
90105-088A4-00
Bolt, Flange (usa)
30
4XE-F5381-01-00
Axle, Wheel (usa)
31
90387-284T0-00
Collar (usa)
32
93210-26662-00
O-ring (usa)
33
4XE-F5310-00-00
Hub Assy (rear Brake (usa)
34
90114-10802-00
Bolt, Serration (usa)
35
93210-12131-00
O-ring (usa)
36
90179-10540-00
Nut, Spec'l Shape (at (usa)
37
90201-16804-00
Washer, Plate (usa)
38
52H-2512A-00-00
Cap, Wheel (usa)
39
90171-16001-00
Nut, Castle (usa)
40
91490-30030-00
Pin, Cotter (usa)
41
90445-07810-00
Hose (usa)
42
90467-07093-00
Clip, Scissor (usa)
43
90468-15020-00
Clip (usa)
5
90114-10014-00
Bolt, Serration (usa)
