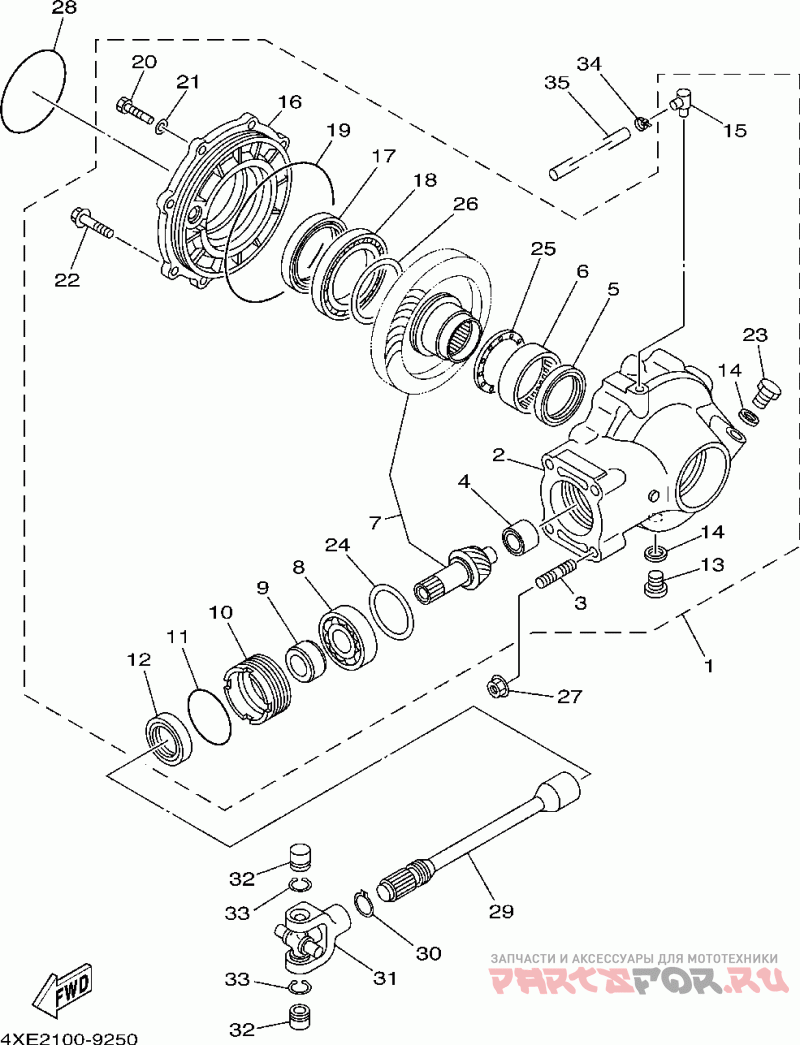

Ведущий вал

Yamaha BEAR TRACKER REALTREE-YFM250XP/YFM250XHP

Yamaha
#oem кодцена
1
4XE-G6101-01-00
Rear Axle Gear Cas (usa)
2
4XE-G6151-01-00
Housing, Drive Shaft (usa)
3
90116-10840-00
Bolt, Stud (usa)
4
4XE-G6102-00-00
Bearing Assy (usa)
5
93101-52116-00
Oil Seal, S-type (63 (usa)
6
93317-855Y9-00
Bearing (usa)
7
4XE-Y4612-00-00
Ring Gear Set (usa)
8
93306-305Y6-00
Bearing (usa)
9
90387-255H9-00
Collar (usa)
10
29U-46125-00-00
Retainer, Bearing (usa)
11
93210-59531-00
O-ring (usa)
12
93101-38098-00
Oil Seal, S-type (usa)
13
90340-14046-00
Plug, Straight Scrw (usa)
14
214-11198-01-00
Gasket (usa)
15
5UG-15371-00-00
Breather (usa)
16
4XE-G6152-01-00
Housing, Bearing (usa)
17
93102-65277-00
Oil Seal, Sd-type (85 (usa)
18
93316-013Y0-00
Bearing (usa)
19
93211-54698-00
O-ring (usa)
20
97527-08525-00
Bolt, With Washer (usa)
21
92907-08600-00
Washer (6ta) (usa)
22
9581P-10045-00
Bolt, Flange (usa)
23
90340-14029-00
Plug, Straight Scrw (usa)
24
4XE-E7537-15-00
Shim, Thrust (.15mm) Ur(usa)
24
4XE-E7537-30-00
Shim, Thrust (.30mm) Ur(usa)
24
4XE-E7537-40-00
Shim, Thrust (.40mm) Ur(usa)
24
4XE-E7537-45-00
Shim, Thrust (.45mm) Ur(usa)
24
4XE-E7537-50-00
Shim, Thrust (.50mm) Ur(usa)
25
4XE-G6118-10-00
Washer, Thrust (1.0m Ur(usa)
25
4XE-G6118-11-00
Washer, Thrust (1.1m Ur(usa)
25
4XE-G6118-12-00
Washer, Thrust (1.2m Ur(usa)
25
4XE-G6118-13-00
Washer, Thrust (1.3m Ur(usa)
25
4XE-G6118-14-00
Washer, Thrust (1.4m Ur(usa)
25
4XE-G6118-15-00
Washer, Thrust (1.5m Ur(usa)
25
4XE-G6118-16-00
Washer, Thrust (1.6m Ur(usa)
25
4XE-G6118-17-00
Washer, Thrust (1.7m Ur(usa)
25
4XE-G6118-18-00
Washer, Thrust (1.8m Ur(usa)
25
4XE-G6118-19-00
Washer, Thrust (1.9m Ur(usa)
25
4XE-G6118-20-00
Washer, Thrust (2.0m Ur(usa)
25
4XE-G6118-21-00
Washer, Thrust (2.1m Ur(usa)
25
4XE-G6118-A3-00
Washer, Thrust (1.35 Ur(usa)
25
4XE-G6118-A4-00
Washer, Thrust (1.45 Ur(usa)
25
4XE-G6118-A5-00
Washer, Thrust (1.55 Ur(usa)
26
4XE-G6117-25-00
Shim, Ring Gear (.25 Ur(usa)
26
4XE-G6117-30-00
Shim, Ring Gear (.30 Ur(usa)
26
4XE-G6117-35-00
Shim, Ring Gear (.35 Ur(usa)
26
4XE-G6117-40-00
Shim, Ring Gear (.40 Ur(usa)
26
4XE-G6117-45-00
Shim, Ring Gear (.45 Ur(usa)
26
4XE-G6117-50-00
Shim, Ring Gear (.50 Ur(usa)
27
95707-10500-00
Nut, Flange (8ab) (usa)
28
93210-85706-00
O-ring (usa)
29
4XE-G6172-00-00
Shaft, Drive (usa)
30
93410-22039-00
Circlip, S-type (usa)
31
4X7-46180-00-00
Cross Joint (usa)
32
93399-99926-00
Bearing, Special (usa)
33
93440-20088-00
Circlip, Outer (usa)
34
90467-07029-00
Clip, Scissor (usa)
35
90445-078C4-00
Hose (usa)
