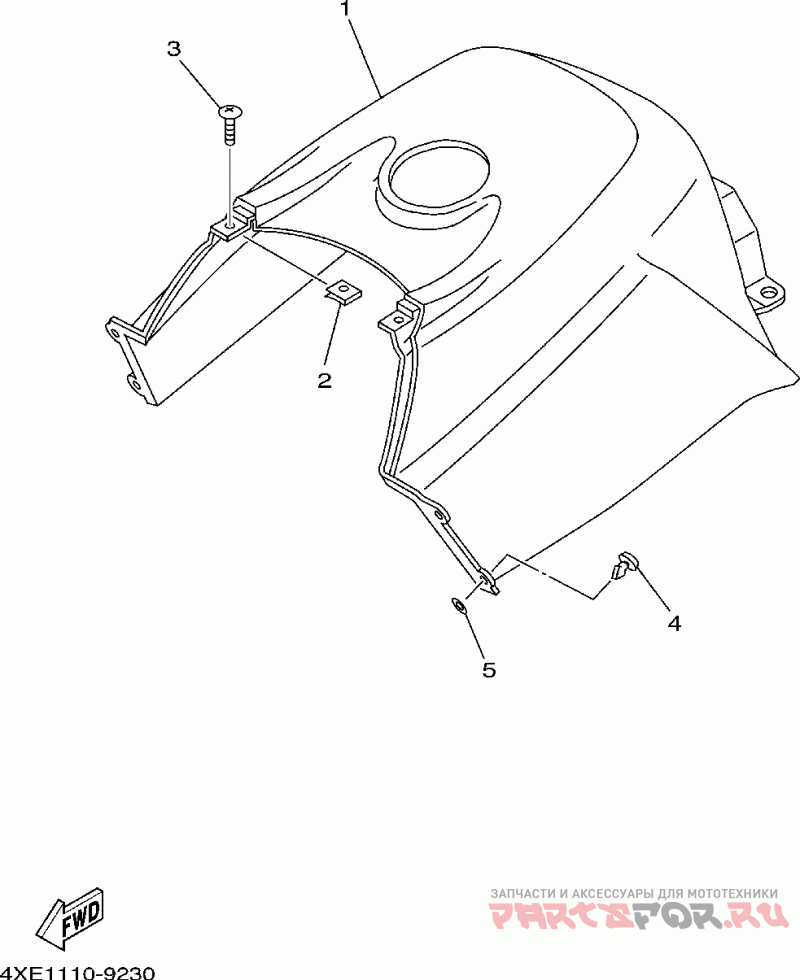

Боковая панель
Yamaha BEAR TRACKER REALTREE-YFM250XP/YFM250XHP
| # | oem код | название | цена |
|---|---|---|---|
1 | 4XE-F171A-00-00 Top Cover Assy (rtr) Ur For Rtr(usa) | Top Cover Assy (rtr) Ur For Rtr(usa) | |
1 | 4XE-F171A-10-00 Top Cover Assy (pdg) Ur For Pdg(usa) | Top Cover Assy (pdg) Ur For Pdg(usa) | |
1 | 4XE-F171A-20-00 Top Cover Assy (dnys Ur For Dnys1(usa) | Top Cover Assy (dnys Ur For Dnys1(usa) | |
2 | 90183-05042-00 Nut, Spring (usa) | Nut, Spring (usa) | |
3 | 9770P-50012-00 Screw, Tapping (usa) | Screw, Tapping (usa) | |
4 | 90269-08813-00 Rivet, Plastic Mat Ma (usa) | Rivet, Plastic Mat Ma (usa) | |
5 | 90201-088E5-00 Washer, Plate (usa) | Washer, Plate (usa) |
