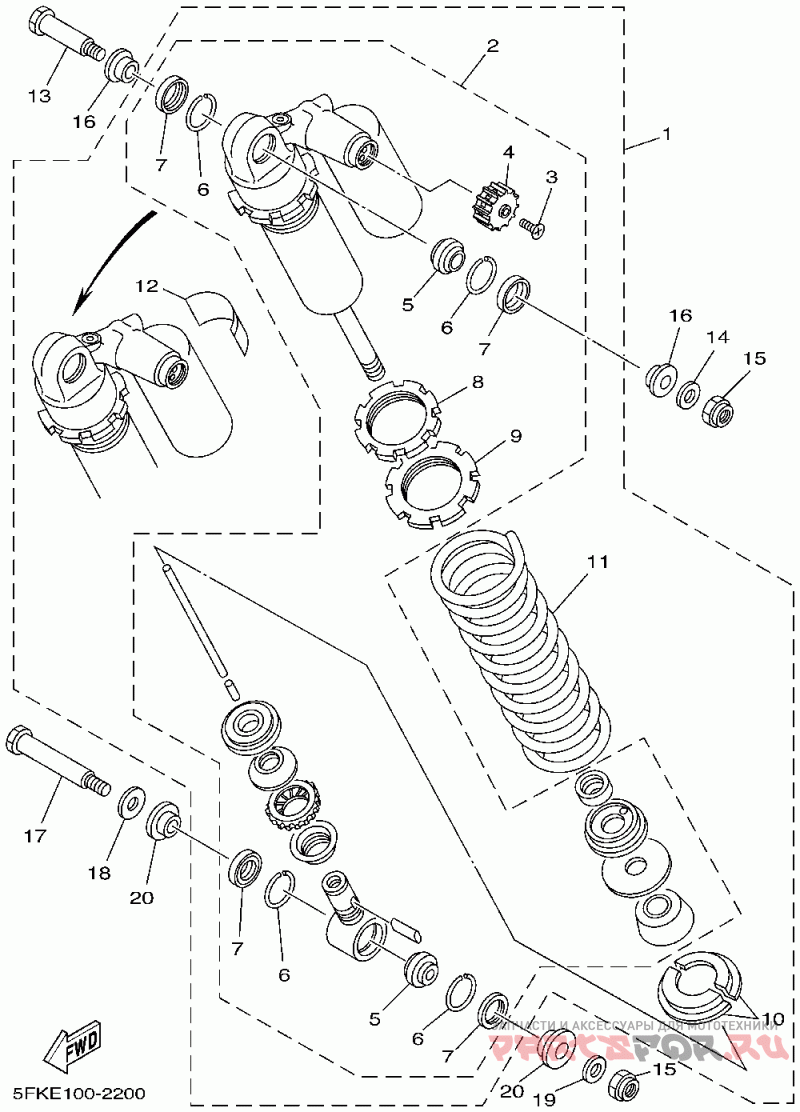

Задняя подвеска

Yamaha Banshee

Yamaha
#oem кодцена
1
3GG-22210-42-36
Shock Absorber Assy, Ur For Dpbse(u49)
1
3GG-22210-42-P1
Shock Absorber Assy, Ur For Yb(u49)
2
3GG-22201-41-00
Damper Sub Assy (u49)
3
98517-04006-00
Screw, Pan Head (u49)
4
CA4-22464-00-00
Knob, Control (u49)
5
93399-999T3-00
Bearing (3et1) (u49)
6
93440-30113-00
Circlip, Outer (u49)
7
93104-18077-00
Oil Seal, So-type (u49)
8
1RK-22215-00-00
Ring, Cover (u49)
9
38W-22223-00-00
Seat, Spring Lower (u49)
10
22W-22214-01-00
Guide, Spring 1 (u49)
11
38W-22212-10-36
Spring (ww) Ur For Dpbse(u49)
11
38W-22212-10-P2
Spring-yellow Ur For Yb(u49)
12
4AA-22259-80-00
Label, Warning (u49)
13
90109-10704-00
Bolt (u49)
14
90201-100F7-00
Washer, Plate (u49)
15
90185-10120-00
Nut, Self-locking (u49)
16
90387-127G8-00
Collar (u49)
17
90109-102A6-00
Bolt (u49)
18
90201-12027-00
Washer, Plate (u49)
20
90387-126H8-00
Collar (u49)
10
3P6-22214-00-00
Guide, Spring 1 (u49)
19
90201-10M05-00
Washer, Plate (u49)
