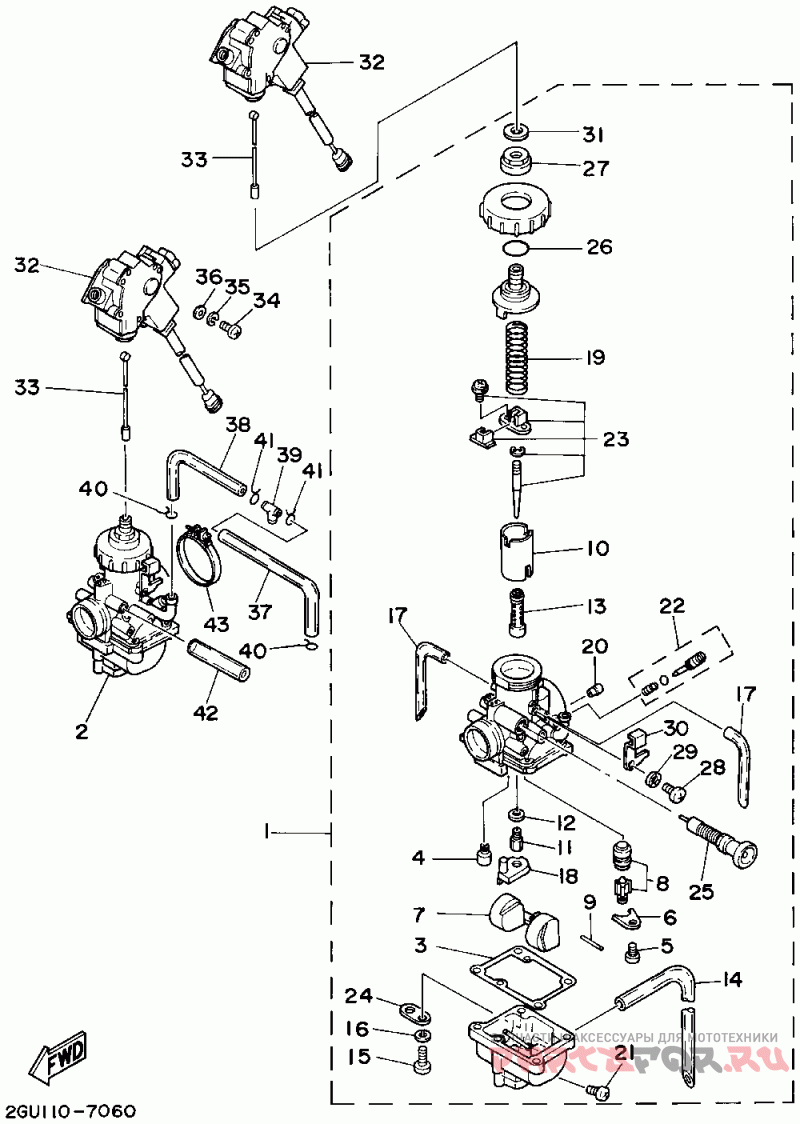

Карбюратор

Yamaha Banshee

Yamaha
#oem кодцена
1
2GU-14101-01-00
Carburetor Assy 1 (u49)
2
2GU-14102-01-00
Carburetor Assy 2 (u49)
3
304-14184-00-00
Gasket, Float Chmbr (u49)
4
260-14142-25-00
Jet, Pilot #25 (u49)
5
98580-04008-00
Screw, Pan Head (u49)
6
2H0-14146-00-00
Plate (u49)
7
4L0-14185-00-00
Float (u49)
8
1UA-14190-28-00
Needle Valve Assy (u49)
9
537-14186-00-00
Pin, Float (u49)
10
2GU-14112-20-00
Valve, Throttle L/h Ur For Left(u49)
10
2GU-14113-20-00
Valve, Throttle R/h Ur For Right(u49)
11
137-14143-38-A0
Jet, Main #190 Ur(u49)
11
137-14143-40-A1
Jet, Main #200 Ur Std(u49)
11
137-14143-44-A1
Jet, Main #220 Ur(u49)
11
137-14143-48-A1
Jet, Main #240 Ur(u49)
12
137-14153-00-00
Washer, Main Jet (u49)
13
4L0-14141-38-00
Nozzle, Main (u49)
14
90445-084J0-00
Hose (3gg) (u49)
15
98517-04016-00
Screw, Pan Head (u49)
16
92990-04100-00
Washer, Spring (u49)
17
4L0-14197-00-00
Pipe, Airvent (u49)
18
2GU-14153-00-00
Ring (u49)
19
2GU-14131-00-00
Spring, Throttle Valv (u49)
20
239-14172-16-00
Pilot Jet, Air #1.6 (u49)
21
12R-14191-00-00
Plug, Drain (u49)
22
10W-14104-00-00
Air Screw Set (u49)
23
2GU-1490J-00-00
Needle Set (u49)
24
500-14146-00-00
Plate (u49)
25
2GU-14171-00-00
Plunger, Starter (u49)
26
558-14147-00-00
O-ring (u49)
27
2GU-14161-00-00
Nut, Cable Adjust. (u49)
28
98507-05008-00
Screw, Panhead(jn2 (u49)
30
2GU-14146-00-00
Plate, Right Ur For Right(u49)
30
2GU-14243-00-00
Plate, (left) Ur For Left(u49)
31
256-14954-00-00
Washer (u49)
32
3GG-8259E-00-00
Switch Assy (u49)
33
2GU-2633K-00-00
Wire, Inner 1 (u49)
34
98507-03010-00
Screw, Panhead(3hhj (u49)
36
92907-03600-00
Washer(3sx) (u49)
37
29L-24311-00-00
Pipe, Fuel 1 (u49)
38
48H-24311-00-00
Pipe, Fuel 1 (u49)
39
90413-08009-00
Way, 3 (u49)
40
90467-10008-00
Clip, Scissor (u49)
41
90467-11106-00
Clip (u49)
42
90445-093J2-00
Hose (jn3) (u49)
43
90460-49058-00
Clamp, Hose (u49)
42
90445-092K1-00
Hose (u49)
40
90467-100A1-00
Clip (u49)
