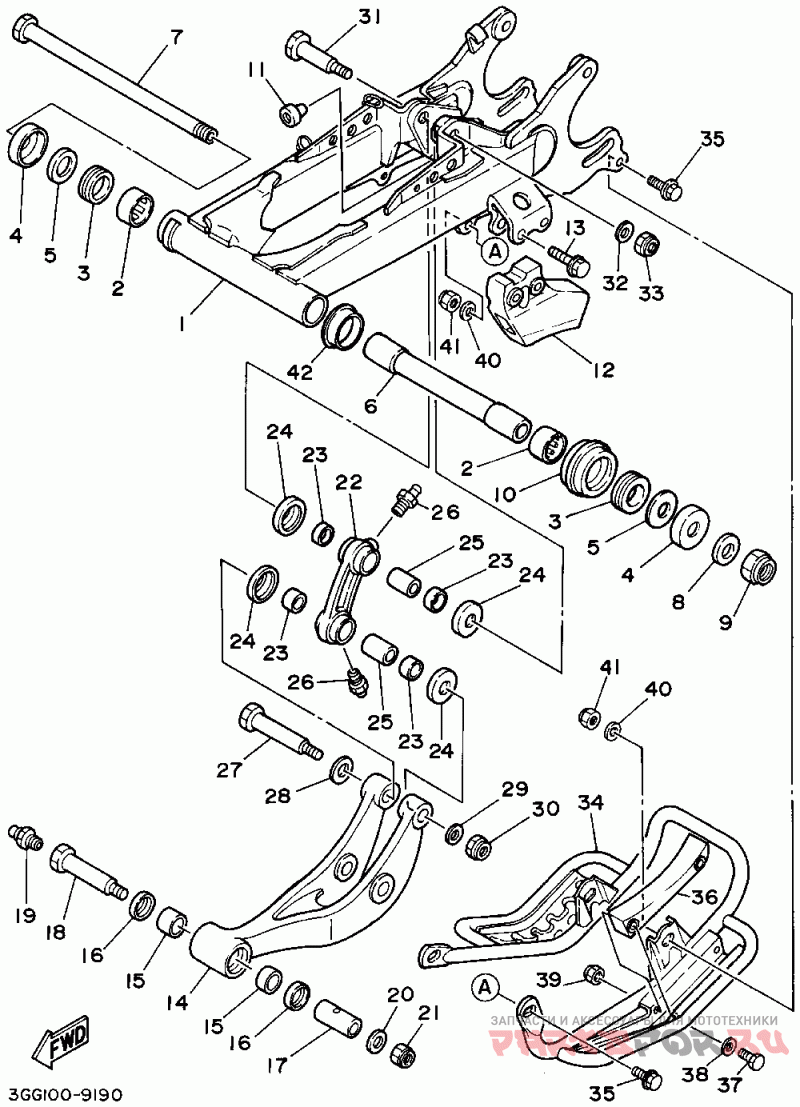

Бугель (задний рычаг)

Yamaha Banshee

Yamaha
#oem кодцена
1
3GG-22110-00-P0
Rear Arm Comp. (u49)
2
93317-32231-00
Bearing, Cyl.#17 (u49)
3
93108-35004-00
Oil Seal, Oso-type (u49)
4
2K6-22128-01-00
Cover, Thrust 1 (u49)
5
90201-247L2-00
Washer, Plate (2vm) (u49)
6
2GU-22184-00-00
Bush (u49)
7
2GU-22141-00-00
Shaft, Pivot (u49)
8
90201-160F6-00
Washer, Plate (u49)
9
90185-16127-00
Nut, Self-locking (u49)
10
2GU-22151-10-00
Seal, Guard (u49)
11
4N0-27114-00-00
Stopper, Main Stand (u49)
12
5X4-22199-00-00
Support, Chain (u49)
13
95817-08040-00
Bolt, Flange (u49)
14
1UY-2217A-00-00
Arm, Relay (u49)
15
90383-20033-00
Bush, Formed (u49)
16
93109-20076-00
Oil Seal (u49)
17
90387-12021-00
Collar (u49)
18
90109-10752-00
Bolt (u49)
19
93700-06M03-00
Nipple, Grease (u49)
20
90201-100F7-00
Washer, Plate (u49)
21
90185-10120-00
Nut, Self-locking (u49)
22
3GG-2217F-00-00
Rod, Connecting 1 (u49)
23
90383-20032-00
Bush, Formed (u49)
24
55K-22129-00-00
Cover, Thrust 2 (u49)
25
90387-125N8-00
Collar (u49)
27
90109-102A6-00
Bolt (u49)
28
90201-12027-00
Washer, Plate (u49)
31
90109-10654-00
Bolt (u49)
34
3GG-2219X-00-00
Cover (u49)
35
95817-08020-00
Bolt, Flange(8ab) (u49)
36
2GU-22153-00-00
Guard, Chain (u49)
37
97017-06045-00
Bolt (u49)
38
92907-06600-00
Washer, Plate (6ta) (u49)
39
95617-06100-00
Nut, U (u49)
40
92907-08600-00
Washer (6ta) (u49)
41
95617-08100-00
Nut, U (u49)
42
2GU-22155-00-00
Collar (u49)
29
90201-10M05-00
Washer, Plate (u49)
9
90185-16002-00
Nut, Self-locking (u49)
26
93700-06M03-00
Nipple, Grease (u49)
30
90185-10120-00
Nut, Self-locking (u49)
32
90201-100F7-00
Washer, Plate (u49)
33
90185-10120-00
Nut, Self-locking (u49)
