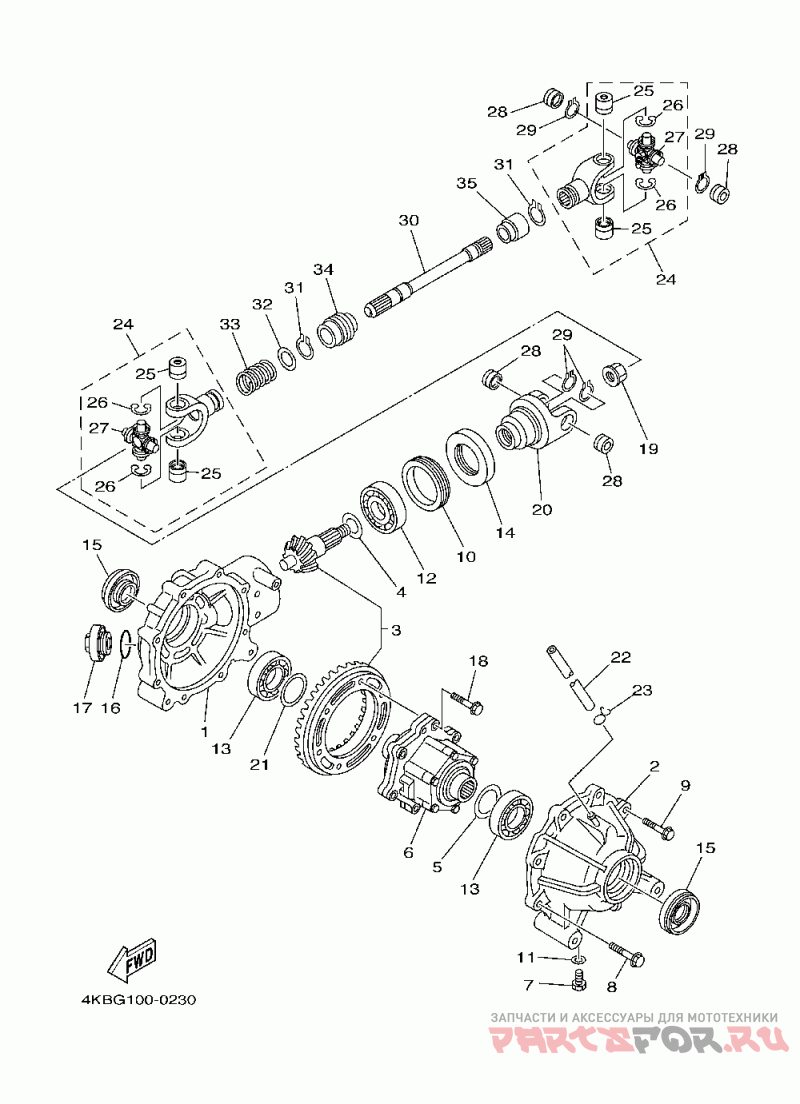

Передний дифференциал

Yamaha Wolverine

Yamaha
#oem кодцена
1
4KB-46161-00-00
Housing, Shaft Drive (usa)
2
4KB-46162-00-00
Housing, Bearing 2 (usa)
3
4KB-W4614-11-00
Pinion, Drive Gear Se (usa)
4
4KB-46127-00-00
Shim, Drv.pin 1.82t Ur (usa)
4
4KB-46127-10-00
Shim, Drv.pin 1.88t Ur (usa)
4
4KB-46127-20-00
Shim, Drv.pin 1.94t Ur (usa)
4
4KB-46127-30-00
Shim, Drv.pin 2.00t Ur (usa)
4
4KB-46127-40-00
Shim, Drv.pin 2.06t Ur (usa)
4
4KB-46127-50-00
Shim, Drv.pin 2.12t Ur (usa)
4
4KB-46127-60-00
Shim, Drv.pin 2.18t Ur (usa)
5
4KB-46117-00-00
Shim, Ring Gear (.05t Ur (usa)
5
4KB-46117-10-00
Shim, Ring Gear (.55t Ur (usa)
5
4KB-46117-20-00
Shim, Ring Gear (0.60 Ur (usa)
5
4KB-46117-30-00
Shim, Ring Gear (0.65 Ur (usa)
5
4KB-46117-40-00
Shim, Ring Gear (0.70 Ur (usa)
5
4KB-46117-50-00
Shim, Ring Gear (0.75 Ur (usa)
5
4KB-46117-60-00
Shim, Ring Gear (0.80 Ur (usa)
5
4KB-46117-70-00
Shim, Ring Gear (0.85 Ur (usa)
5
4KB-46117-80-00
Shim, Ring Gear (0.90 Ur (usa)
5
4KB-46117-90-00
Shim, Ring Gear (0.95 Ur (usa)
5
4KB-46117-A0-00
Shim, Ring Gear (1.00 Ur (usa)
5
4KB-46117-B0-00
Shim, Ring Gear (1.05 Ur (usa)
5
4KB-46117-C0-00
Shim, Ring Gear (1.10 Ur (usa)
5
4KB-46117-D0-00
Shim, Ring Gear (1.15 Ur (usa)
5
4KB-46117-E0-00
Shim, Ring Gear (1.20 Ur (usa)
5
4KB-46117-F0-00
Shim, Ring Gear (1.25 Ur (usa)
5
4KB-46117-G0-00
Shim, Ring Gear (1.30 Ur (usa)
5
4KB-46117-H0-00
Shim, Ring Gear (1.35 Ur (usa)
5
4KB-46117-J0-00
Shim, Ring Gear (1.40 Ur (usa)
5
4KB-46117-K0-00
Shim, Ring Gear (1.45 Ur (usa)
5
4KB-46117-L0-00
Shim, Ring Gear (1.50 Ur (usa)
5
4KB-46117-M0-00
Shim, Ring Gear (1.5 Ur (usa)
5
4KB-46117-N0-00
Shim, Ring Gear (1.60 Ur (usa)
6
4KB-46470-11-00
Limited Slip Diff. A (usa)
7
90105-08759-00
Bolt, Washer Based (usa)
8
90105-082A7-00
Bolt, Washer Based (usa)
9
90105-102A8-00
Bolt, Washer Based (usa)
10
90179-60664-00
Nut (usa)
11
90201-086R7-00
Washer, Plate (usa)
12
93306-37210-00
Bearing (usa)
13
93306-07804-00
Bearing (usa)
14
93103-38178-00
Oil Seal (usa)
15
93105-22029-00
Oil Seal (usa)
16
93210-313A0-00
O-ring (usa)
17
4KB-11186-00-00
Cover, Cyl.head 2 (usa)
18
90105-08756-00
Bolt, Washer Based (usa)
19
90179-16671-00
Nut (usa)
20
4KB-46146-12-00
Yoke, Joint 2 (usa)
21
4KB-46119-00-00
Shim, Thrust Ur (usa)
21
4KB-46119-10-00
Shim, Thrust Ur (usa)
21
4KB-46119-20-00
Shim, Thrust Ur (usa)
21
4KB-46119-30-00
Shim, Thrust Ur (usa)
21
4KB-46119-40-00
Shim, Thrust Ur (usa)
21
4KB-46119-50-00
Shim, Thrust Ur (usa)
21
4KB-46119-60-00
Shim, Thrust Ur (usa)
21
4KB-46119-70-00
Shim, Thrust Ur (usa)
21
4KB-46119-80-00
Shim, Thrust Ur (usa)
21
4KB-46119-90-00
Shim, Thrust Ur (usa)
21
4KB-46119-A0-00
Shim, Thrust Ur (usa)
21
4KB-46119-B0-00
Shim, Thrust Ur (usa)
21
4KB-46119-C0-00
Shim, Thrust Ur (usa)
21
4KB-46119-D0-00
Shim, Thrust Ur (usa)
21
4KB-46119-E0-00
Shim, Thrust Ur (usa)
21
4KB-46119-F0-00
Shim, Thrust Ur (usa)
21
4KB-46119-G0-00
Shim, Thrust Ur (usa)
21
4KB-46119-H0-00
Shim, Thrust Ur (usa)
21
4KB-46119-J0-00
Shim, Thrust Ur (usa)
21
4KB-46119-K0-00
Shim, Thrust Ur (usa)
21
4KB-46119-L0-00
Shim, Thrust Ur (usa)
21
4KB-46119-M0-00
Shim, Thrust Ur (usa)
21
4KB-46119-N0-00
Shim, Thrust Ur (usa)
22
90445-070G6-00
Hose (usa)
23
90467-06016-00
Clip, Scissor (usa)
24
5FU-46108-00-00
Cross Joint Comp. 3 (usa)
25
93399-99948-00
Bearing (usa)
26
93440-20088-00
Circlip, Outer (usa)
27
5GT-46187-00-00
Spider (usa)
30
4KB-46173-10-00
Shaft, Drive 2 (usa)
31
99009-19400-00
Circlip, S-type (usa)
32
90201-20266-00
Washer, Plate (usa)
33
90501-235L9-00
Spring, Compression (usa)
34
5GT-46136-00-00
Seal 1 (usa)
35
5GT-46137-00-00
Seal 2 (usa)
28
93399-99948-00
Bearing (usa)
29
93440-20088-00
Circlip, Outer (usa)
