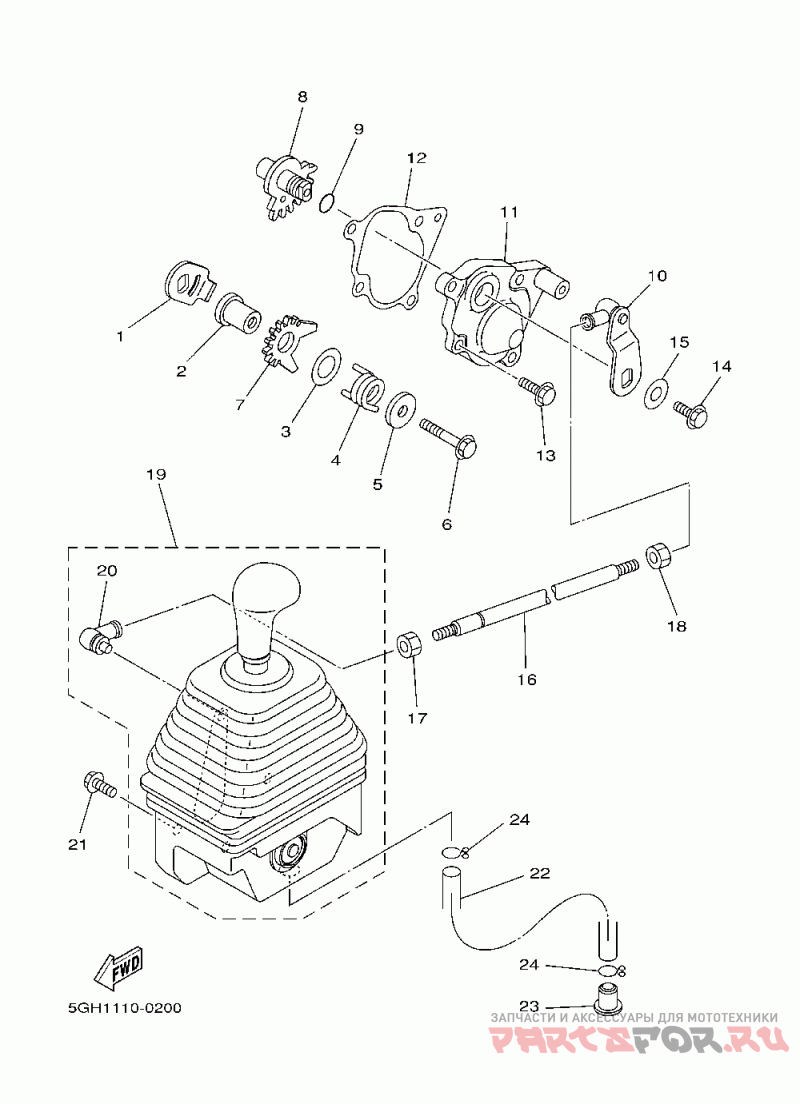

Вал переключения

Yamaha Kodiak Automatic

Yamaha
#oem кодцена
1
4SH-18198-00-00
Lever (u49)
2
90387-0613B-00
Collar (u49)
3
90201-13202-00
Washer, Plate (u49)
4
90508-35764-00
Spring, Torsion (u49)
5
90201-06M02-00
Washer, Plate (u49)
6
95817-06035-00
Bolt, Flange (u49)
7
5KM-18191-00-00
Lever (u49)
8
5GH-18197-00-00
Shaft (u49)
9
93210-11073-00
O-ring (u49)
10
5GH-18104-00-00
Shift Guide Comp. (u49)
11
5GH-18129-00-00
Cover, Shift Shaft (u49)
12
5GH-18146-00-00
Gasket, Lever Stop (u49)
13
95027-06020-00
Bolt, Flange(6u1) (u49)
14
95817-06016-00
Bolt, Flange (u49)
16
5GH-18115-01-00
Rod, Shift (u49)
17
90170-08358-00
Nut, Hexagon (u49)
18
95317-08700-00
Nut, Hex Small (u49)
19
5GH-18300-02-00
Shifter Assy (u49)
20
1KT-18157-00-00
Joint 2 (u49)
21
95817-08020-00
Bolt, Flange(8ab) (u49)
22
90446-16001-00
Hose (u49)
23
90605-50201-00
Plug, W/s Stay 1 & 2 (u49)
24
90467-15012-00
Clip, Scissor (u49)
11
5GH-18129-01-00
Cover, Shift Shaft (u49)
15
90201-06M02-00
Washer, Plate (u49)
