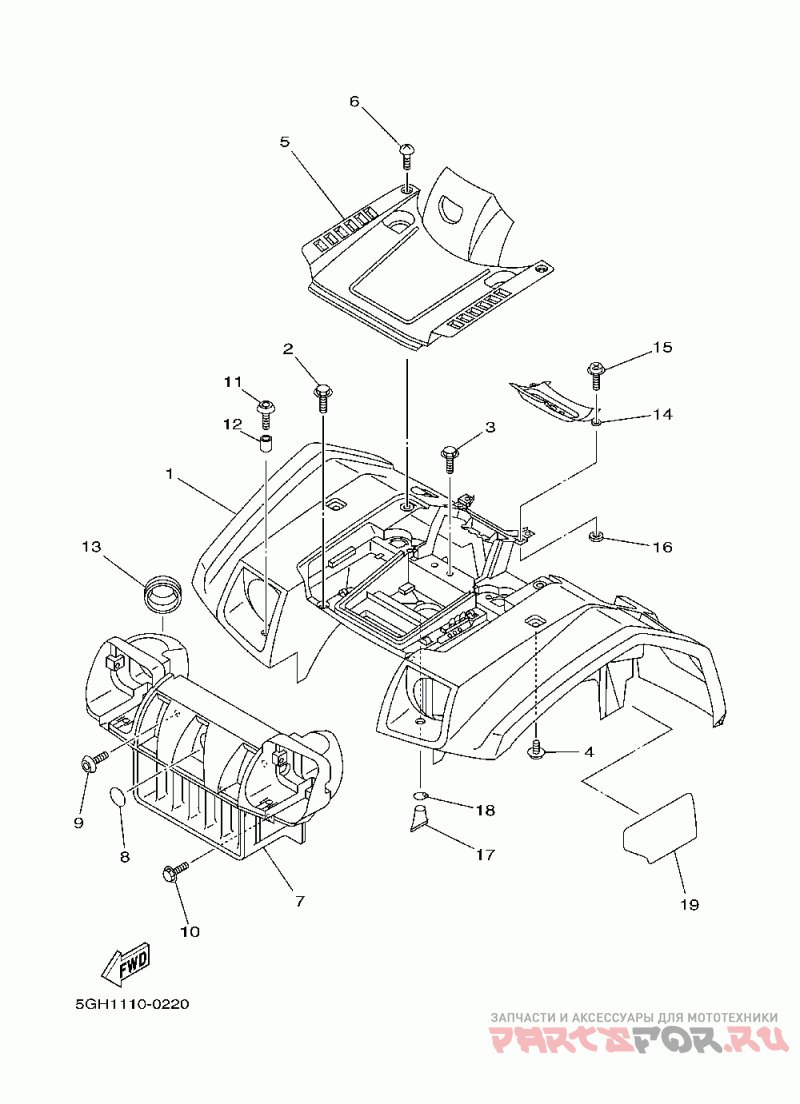

Переднее крыло

Yamaha Kodiak Automatic

Yamaha
#oem кодцена
1
5GH-W2151-00-00
Front Fender Comp. ( Ur Pdg (u49)
1
5GH-W2151-10-00
Fender, Front Comp.(r Ur Rtr (u49)
1
5GH-W2151-20-00
Fender, Front Comp.(d Ur Dnys1 (u49)
2
90119-06152-00
Bolt, With Washer (u49)
5
5GH-23391-00-00
Panel, Front (u49)
6
90269-07076-00
Rivet, Spec'l Shape (u49)
7
5GH-28309-00-00
Grill, Front (u49)
8
5GT-2175B-00-00
Tuning Fork Mark(rou (u49)
9
90110-06102-00
Bolt, Hex Skt Head (u49)
11
90110-06202-00
Bolt, Hex. Socket Hea (u49)
12
90387-067V1-00
Collar (u49)
13
5GH-28349-00-00
Cap (u49)
14
5HA-2837L-00-00
Panel, Console 1 (w/o (u49)
15
90159-05121-00
Screw, With Washer (u49)
16
90183-051A0-00
Nut, Spring (u49)
17
59V-14457-00-00
Seal (u49)
18
90467-22080-00
Clip, Scissor (u49)
19
5GH-21575-00-00
Seal 1 (u49)
3
90119-06152-00
Bolt, With Washer (u49)
4
90119-06152-00
Bolt, With Washer (u49)
10
90119-06152-00
Bolt, With Washer (u49)
