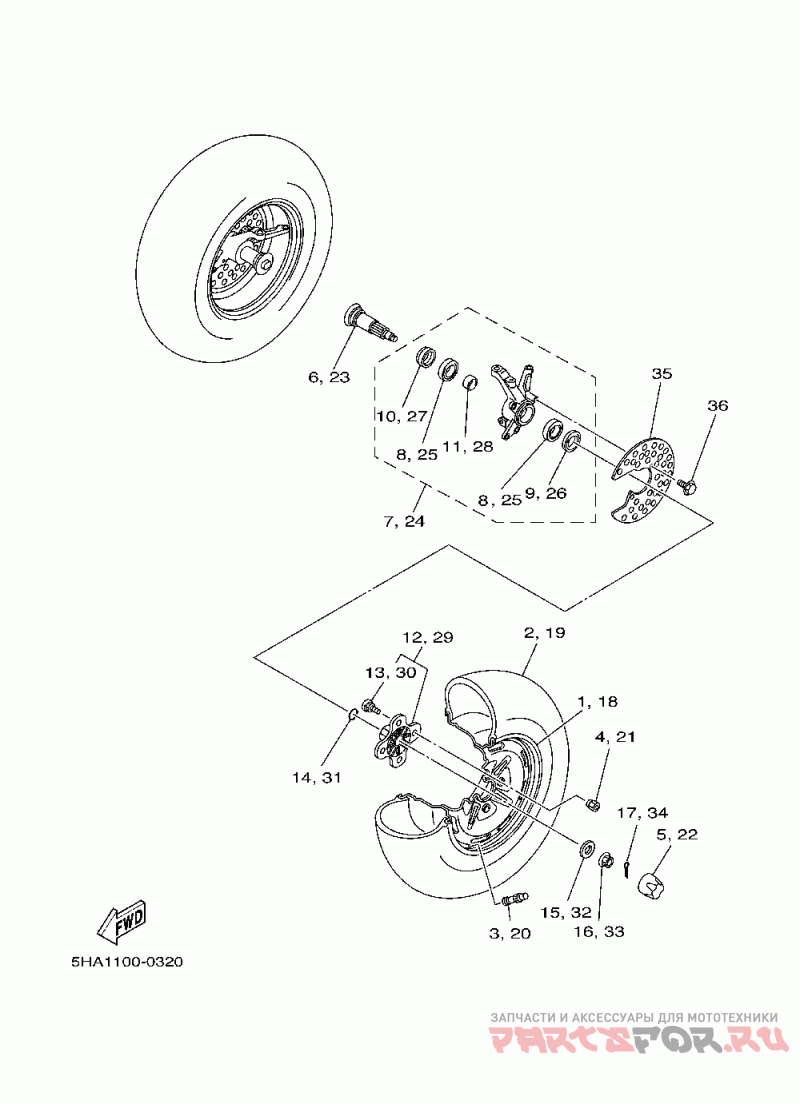

Переднее колесо

Yamaha Kodiak Automatic

Yamaha
#oem кодцена
1
5GH-25180-40-00
Wheel Comp. (u49)
2
94108-1216D-00
At25x8-12* Dun Kt123 (u49)
3
93900-00030-00
Valve, Rim Taiheiyo (u49)
4
90179-10540-00
Nut, Spec'l Shape (at (u49)
5
5GT-2512A-00-00
Cap, Wheel (u49)
6
5HA-25181-00-00
Axle, Wheel (u49)
7
5GH-23501-01-00
Steering Knuckle Ass (u49)
8
93306-00615-00
Bearing (u49)
9
93106-38046-00
Oil Seal (u49)
10
93106-38047-00
Oil Seal (u49)
11
90560-30325-00
Spacer (u49)
12
5GH-25111-00-00
Hub, Front (u49)
13
90114-10010-00
Bolt, (for Atv Wheel (u49)
14
93210-27666-00
O-ring (u49)
15
90201-162L6-00
Washer, Plate (2hr) (u49)
16
90171-16001-00
Nut, Castle (u49)
17
91490-30030-00
Pin, Cotter (u49)
24
5GH-23502-01-00
Steering Knuckle Ass (u49)
35
4KB-2514A-01-00
Ring, Wheel 1 (left) (u49)
36
95817-06012-00
Bolt, Flange (u49)
13
90114-10014-00
Bolt, Serration (u49)
18
5GH-25180-40-00
Wheel Comp. (u49)
21
90179-10540-00
Nut, Spec'l Shape (at (u49)
22
5GT-2512A-00-00
Cap, Wheel (u49)
23
5HA-25181-00-00
Axle, Wheel (u49)
25
93306-00615-00
Bearing (u49)
26
93106-38046-00
Oil Seal (u49)
27
93106-38047-00
Oil Seal (u49)
28
90560-30325-00
Spacer (u49)
29
5GH-25111-00-00
Hub, Front (u49)
30
90114-10014-00
Bolt, Serration (u49)
31
93210-27666-00
O-ring (u49)
32
90201-162L6-00
Washer, Plate (2hr) (u49)
33
90171-16001-00
Nut, Castle (u49)
34
91490-30030-00
Pin, Cotter (u49)
