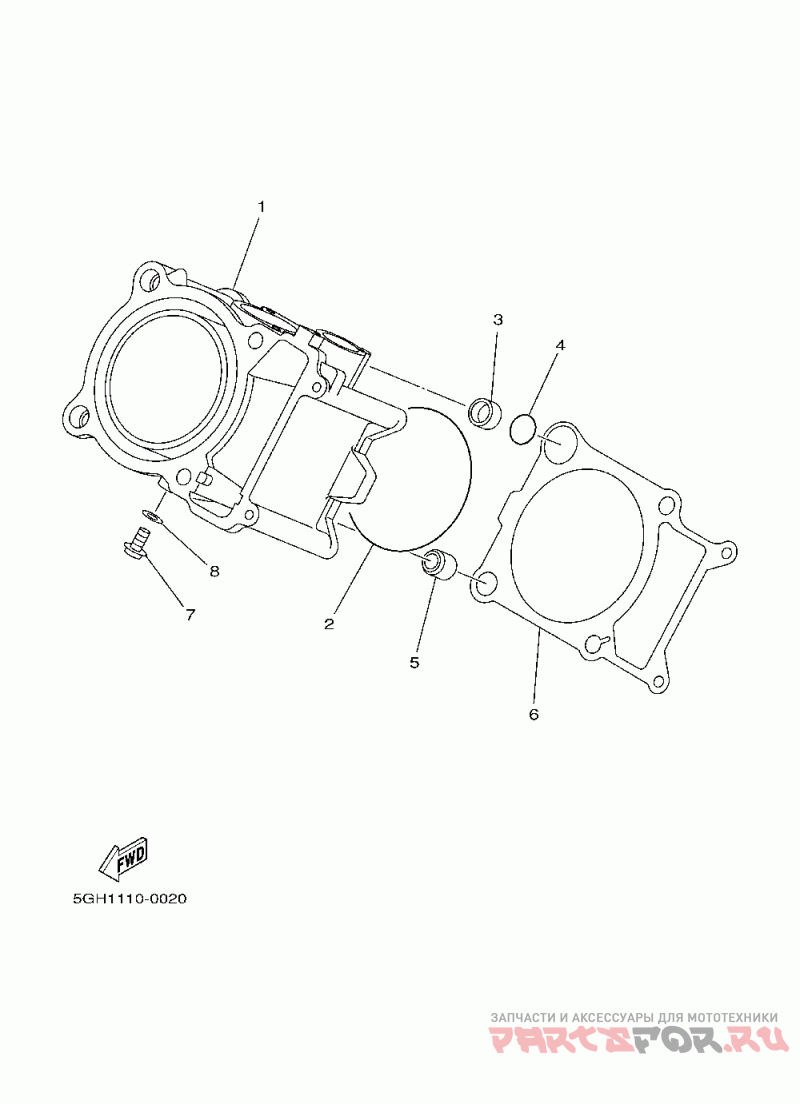

Цилиндр
Yamaha Kodiak Automatic
| # | oem код | название | цена |
|---|---|---|---|
1 | 5GH-11310-00-00 Cylinder (u49) | Cylinder (u49) | |
2 | 93210-89447-00 O-ring (u49) | O-ring (u49) | |
3 | 90387-16547-00 Collar (u49) | Collar (u49) | |
4 | 93210-18322-00 O-ring (u49) | O-ring (u49) | |
5 | 99530-14016-00 Pin, Dowel (59v) (u49) | Pin, Dowel (59v) (u49) | |
6 | 5GH-11351-00-00 Gasket, Cylinder (u49) | Gasket, Cylinder (u49) | |
7 | 90163-06002-00 Screw, Tapping (u49) | Screw, Tapping (u49) | |
8 | 90430-06014-00 Gasket (u49) | Gasket (u49) |
