Передняя подвеска колес для квадроциклов Yamaha Blaster (2001)

Москва и регионы России

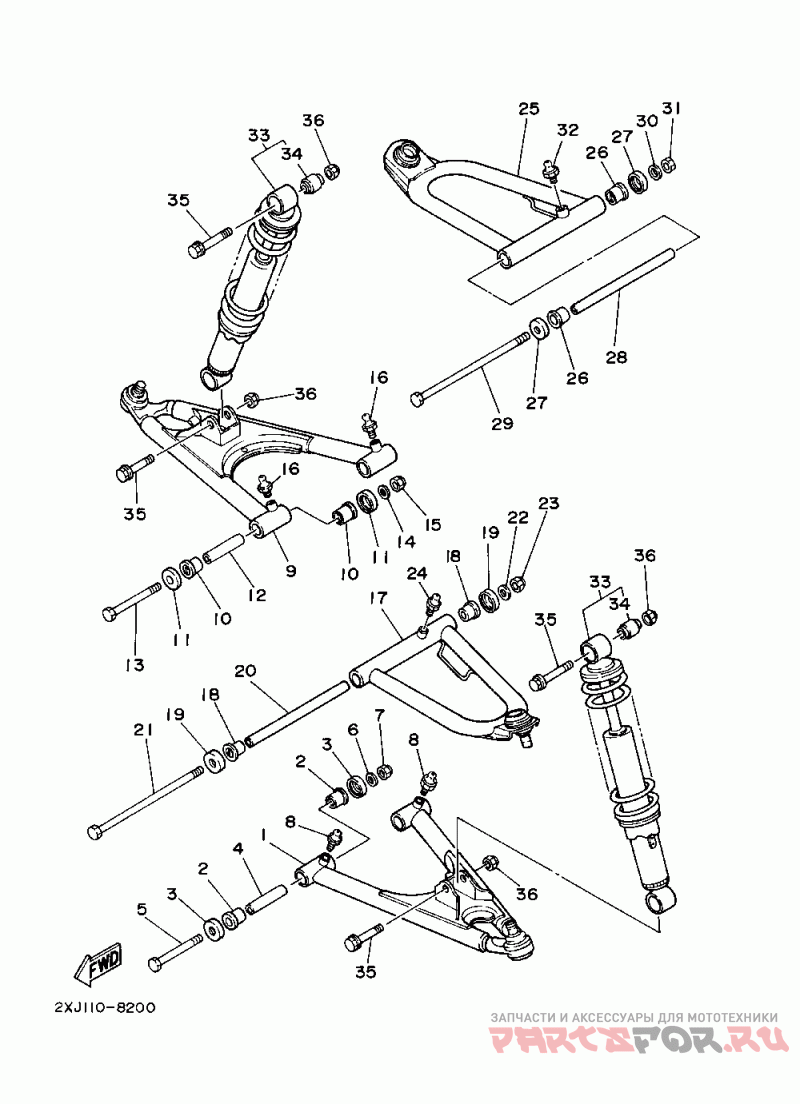

Передняя подвеска колес

Yamaha Blaster

Передняя подвеска колес

#

oem код

название

цена

1

3JM-23570-00-35

Frt.lwr. Arm (l) (u49)

Frt.lwr. Arm (l) (u49)

2

Bush, Solid (u49)

Bush, Solid (u49)

3

5YT-23517-00-00

Cover, Thrust 1 (u49)

Cover, Thrust 1 (u49)

4

Collar (u49)

Collar (u49)

5

Bolt (u49)

Bolt (u49)

6

Washer, Plate (u49)

Washer, Plate (u49)

7

Nut, Self-locking (u49)

Nut, Self-locking (u49)

8

Nipple, Grease (u49)

Nipple, Grease (u49)

9

3JM-23580-00-35

Frt.lwr.arm (r) (u49)

Frt.lwr.arm (r) (u49)

17

2XJ-23540-01-35

Frt. Upper Arm (l) (u49)

Frt. Upper Arm (l) (u49)

20

Collar (u49)

Collar (u49)

21

336-22141-00-00

Shaft, Pivot (u49)

Shaft, Pivot (u49)

25

2XJ-23550-01-35

Frt. Upper Arm (r) (u49)

Frt. Upper Arm (r) (u49)

33

2XJ-23350-00-36

Shock Assy-white 12 (u49)

Shock Assy-white 12 (u49)

34

2XJ-2331R-00-00

Damper, Bush 2 (u49)

Damper, Bush 2 (u49)

35

Bolt, Washer Based (u49)

Bolt, Washer Based (u49)

36

Nut, Self-locking (u49)

Nut, Self-locking (u49)

10

Bush, Solid (u49)

Bush, Solid (u49)

11

5YT-23517-00-00

Cover, Thrust 1 (u49)

Cover, Thrust 1 (u49)

12

Collar (u49)

Collar (u49)

13

Bolt (u49)

Bolt (u49)

14

Washer, Plate (u49)

Washer, Plate (u49)

15

Nut, Self-locking (u49)

Nut, Self-locking (u49)

16

Nipple, Grease (u49)

Nipple, Grease (u49)

18

Bush, Solid (u49)

Bush, Solid (u49)

19

5YT-23517-00-00

Cover, Thrust 1 (u49)

Cover, Thrust 1 (u49)

22

Washer, Plate (u49)

Washer, Plate (u49)

23

Nut, Self-locking (u49)

Nut, Self-locking (u49)

24

Nipple, Grease (u49)

Nipple, Grease (u49)

26

Bush, Solid (u49)

Bush, Solid (u49)

27

5YT-23517-00-00

Cover, Thrust 1 (u49)

Cover, Thrust 1 (u49)

28

Collar (u49)

Collar (u49)

29

336-22141-00-00

Shaft, Pivot (u49)

Shaft, Pivot (u49)

30

Washer, Plate (u49)

Washer, Plate (u49)

31

Nut, Self-locking (u49)

Nut, Self-locking (u49)

32

Nipple, Grease (u49)

Nipple, Grease (u49)
