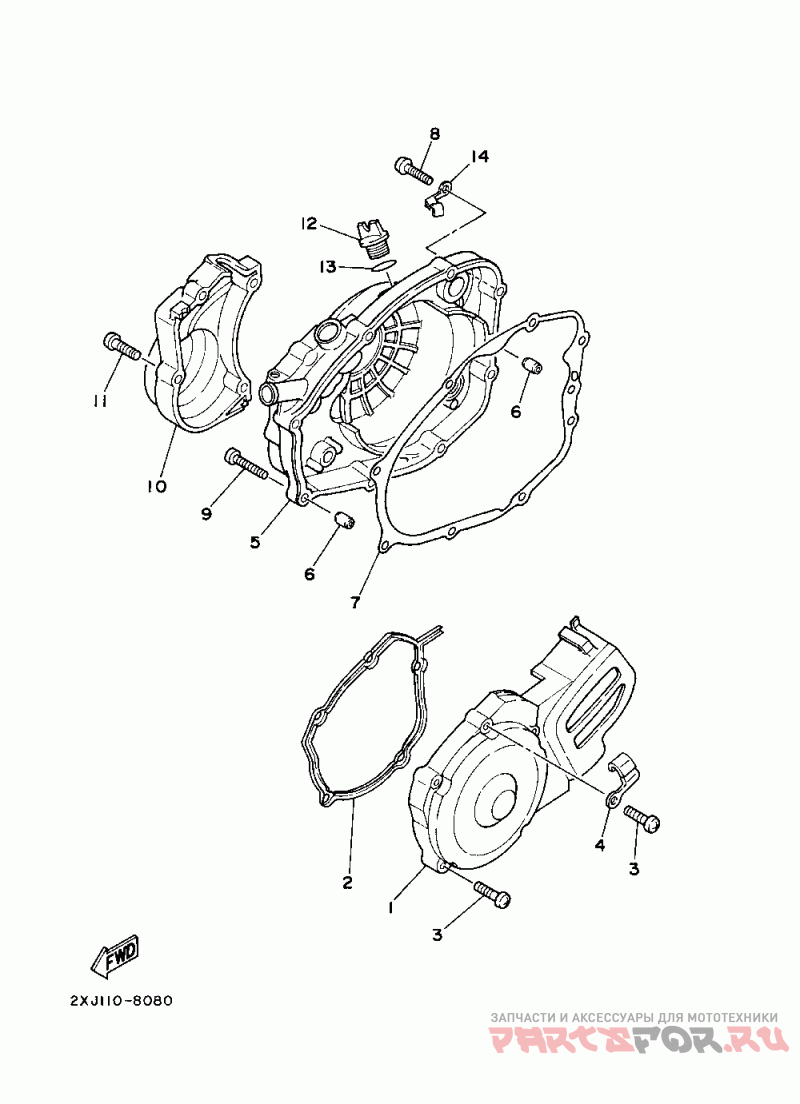

Крышка картера двигателя

Yamaha Blaster

Yamaha
#oem кодцена
1
2XJ-15411-00-00
Cover, Crankcase (l) (u49)
2
2XJ-15379-00-00
Seal, Crankcase (u49)
3
98517-06030-00
Screw, Pan Head (u49)
4
90465-10069-00
Clamp (u49)
5
2XJ-15420-01-00
Crankcase Cover Assy (u49)
6
99530-10014-00
Pin, Dowel (u49)
7
3JM-15451-11-00
Gasket, Crankcase Co (u49)
8
95027-06030-00
Bolt, Small Flange (u49)
9
95027-06035-00
Bolt, Small Flange (u49)
10
37F-15416-00-00
Cover, Oil Pump (u49)
12
1RG-15363-00-00
Plug, Oil (u49)
13
93210-19123-00
O-ring (u49)
14
367-13174-00-00
Holder, Oil Pipe (u49)
11
98517-06030-00
Screw, Pan Head (u49)
12
3Y1-15363-10-00
Plug, Oil (u49)
