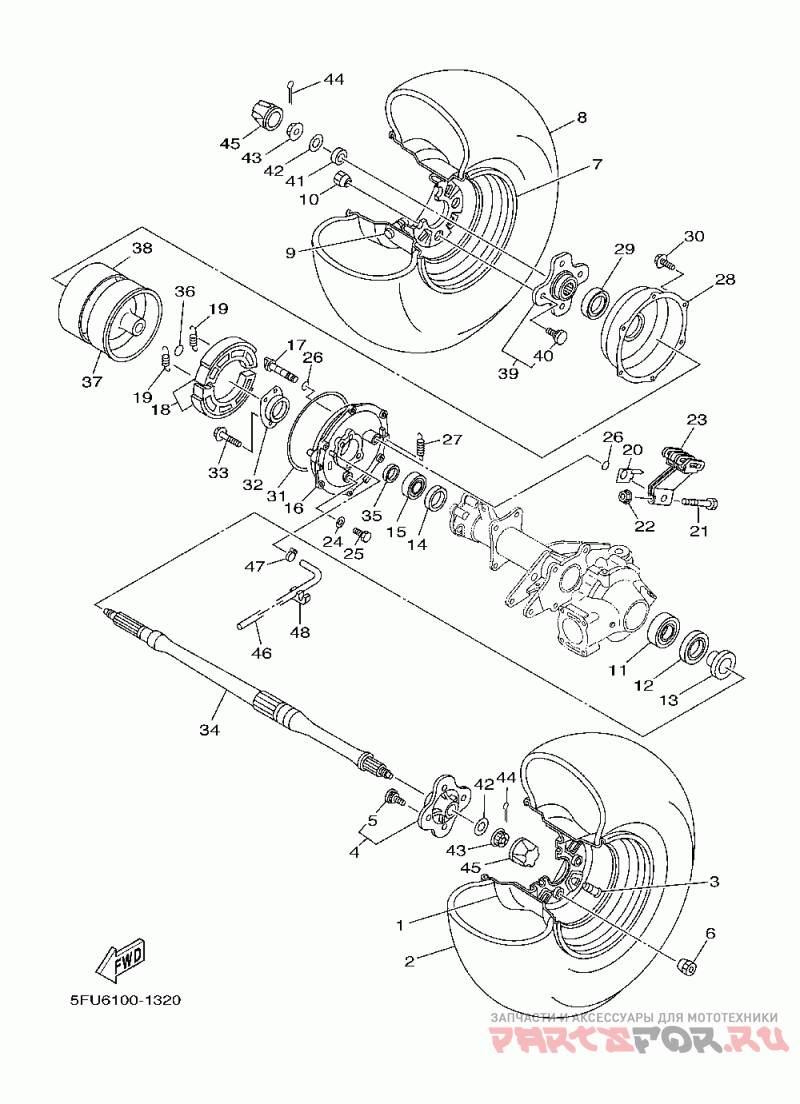

Заднее колесо

Yamaha Big Bear 400

Yamaha
#oem кодцена
1
5GW-F5390-02-00
Rear Rim (dark Silve (usa)
3
93900-00812-00
Valve, Rim (usa)
4
4WV-25383-00-00
Collar, Wheel (usa)
5
90114-10010-00
Bolt, (for Atv Wheel (usa)
6
90179-10540-00
Nut, Spec'l Shape (at (usa)
11
93306-008Y0-00
Bearing (usa)
12
93106-47040-00
Oil Seal, Dd-type (usa)
13
4SH-25367-01-00
Cover, Hub Dust (usa)
14
93101-35097-00
Oil Seal, S-type (usa)
15
93306-278Y0-00
Bearing (usa)
16
5FU-F5321-10-00
Plate, Brake Shoe (usa)
17
5FU-F5351-00-00
Camshaft, Brake (usa)
18
5FU-WF536-00-00
Brake Shoe Set (usa)
19
4XE-F5133-00-00
Spring, Return (usa)
20
4XE-F513A-00-00
Plate, Indicator (usa)
21
4XE-F5833-00-00
Bolt, Fitting (usa)
22
95780-06500-00
Nut, Flange (usa)
23
5FU-F5355-00-00
Lever, Camshaft,brak (usa)
24
4XE-F5898-00-00
Gasket (usa)
25
4XE-F5818-00-00
Bolt, Caliper (usa)
26
4XE-F5816-00-00
Seal, Dust (usa)
27
90506-16482-00
Spring, Tension (usa)
28
5FU-F5327-01-00
Cover, Plate (usa)
29
5FU-F5319-10-00
Seal, Hub Dust (usa)
30
95817-06012-00
Bolt, Flange (usa)
31
5FU-F537Y-00-00
Seal, Dust (usa)
32
4XE-G6513-00-00
Retainer (usa)
33
90105-088A4-00
Bolt, Flange (usa)
34
5FU-F5381-01-00
Axle, Wheel (usa)
35
90387-284T0-00
Collar (usa)
36
93210-26662-00
O-ring (usa)
37
5FU-F5310-10-00
Drum Assy With Ring (usa)
39
5FU-F5377-11-00
Collar, Wheel (usa)
40
1P0-F5411-00-00
Bolt (usa)
41
5FU-F5384-00-00
Washer, Wheel (usa)
42
90201-16804-00
Washer, Plate (usa)
43
90171-16001-00
Nut, Castle (usa)
44
91490-30030-00
Pin, Cotter (usa)
45
5GT-2512A-00-00
Cap, Wheel (usa)
46
90445-078C3-00
Hose (usa)
47
90467-07093-00
Clip, Scissor (usa)
48
90468-15020-00
Clip (usa)
2
94111-10800-XX
At25x11-10 Dun Kt125 Dunlop (kt125)
5
90114-10014-00
Bolt, Serration (usa)
9
93900-00812-00
Valve, Rim (usa)
10
90179-10540-00
Nut, Spec'l Shape (at (usa)
38
5FU-F5310-10-00
Drum Assy With Ring (usa)
