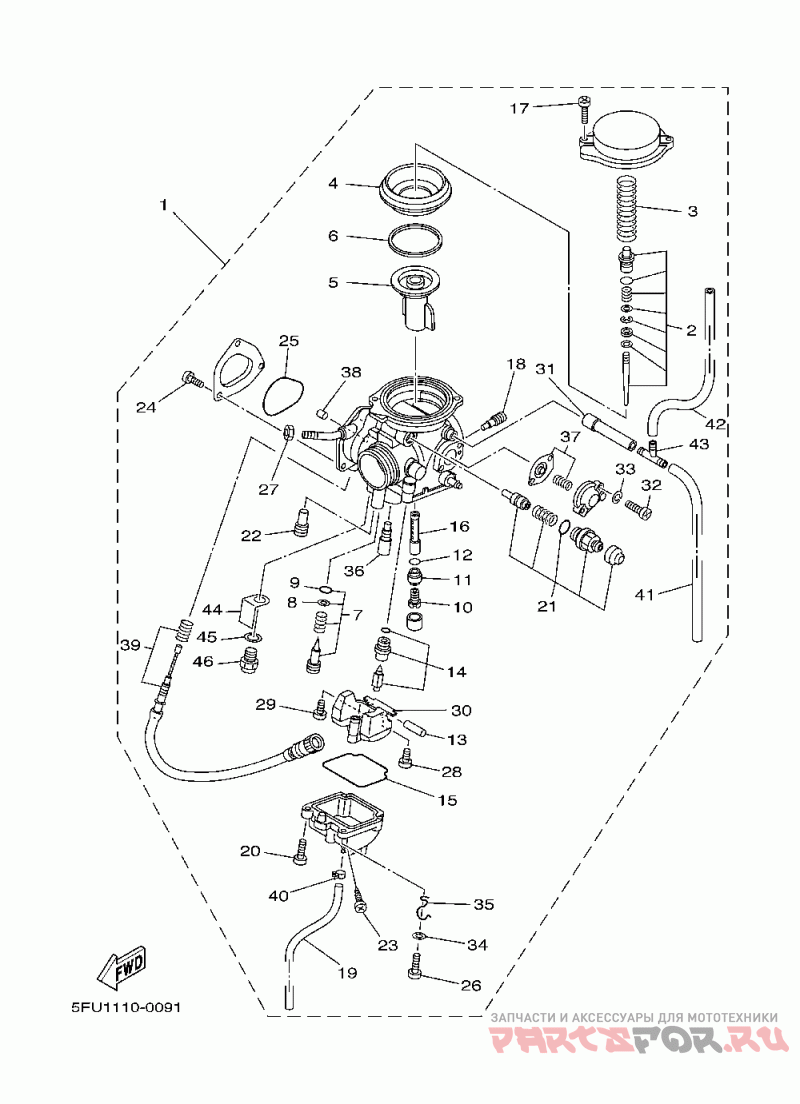

Карбюратор

Yamaha Big Bear 400

Yamaha
#oem кодцена
1
5FU-14101-11-00
Carburetor Assy 1 (usa)
2
5FU-1490J-10-00
Needle Set (usa)
3
5DM-14933-00-00
Spring, Diaphragm (usa)
4
5GH-14940-10-00
Diaphragm Assy (usa)
5
5DM-14112-00-00
Valve, Throttle 1 (usa)
6
5GH-14918-10-00
Ring (usa)
7
5FU-14105-10-00
Pilot Screw Set (whi White Spring (usa)
8
3H1-14962-00-00
Washer (usa)
9
3H1-14147-00-00
O-ring (usa)
10
3G2-1423A-73-A0
Jet Main #112.5 (usa)
11
5DM-14261-00-00
Holder (usa)
12
583-14561-00-00
O-ring (usa)
13
127-14186-00-00
Pin, Float (usa)
14
5UH-14107-20-00
Needle Valve Set (usa)
15
5DM-14561-00-00
O-ring (usa)
16
5DM-14141-40-00
Nozzle Main (usa)
17
4KM-14216-00-00
Screw (usa)
18
1HX-14231-16-00
Jet, Main (#80) (usa)
19
4KB-14193-20-00
Pipe (usa)
20
98580-04010-00
Screw, Pan Head (usa)
21
5GH-1410A-00-00
Starter Set (carb Ch (usa)
22
3G2-14231-14-00
Jet, Main (#70) (usa)
23
12R-14191-00-00
Plug, Drain (usa)
24
98517-04006-00
Screw, Pan Head (usa)
25
4WV-14147-10-00
O-ring (usa)
26
98517-04016-00
Screw, Pan Head (usa)
27
522-14161-00-00
Nut, Cable Adjusting (usa)
28
98507-04008-00
Screw, Pan Head (usa)
29
1FN-14565-00-00
Screw (usa)
30
5DM-14985-00-00
Float (usa)
31
5FU-14197-00-00
Pipe (usa)
32
98580-04014-00
Screw, Pan Head (usa)
34
92907-04600-00
Washer (jf2) (usa)
35
5FU-14937-00-00
Clip (usa)
36
4KM-14142-17-00
Jet, Pilot (#17.5) (usa)
37
5EL-1490H-00-00
Diaphragm Set 5 (usa)
38
1UY-14155-00-00
Guide, Cable End (usa)
39
5FU-14103-01-00
Throttle Screw Set (usa)
40
90467-06194-00
Clip (usa)
41
3XV-14348-00-00
Pipe 1 (usa)
42
7T9-14987-00-00
Hose (usa)
43
90413-05014-00
Way, 3 (usa)
44
3BT-82103-00-00
Terminal 1 (usa)
45
90201-085R5-00
Washer, Plate (usa)
46
5FU-83790-00-00
Heater Assy (usa)
1
5FU-14101-13-00
Carburetor Assy (usa)
44
5FU-82103-00-00
Terminal 1 (usa)
45
90201-08016-00
Washer, Plate (usa)
