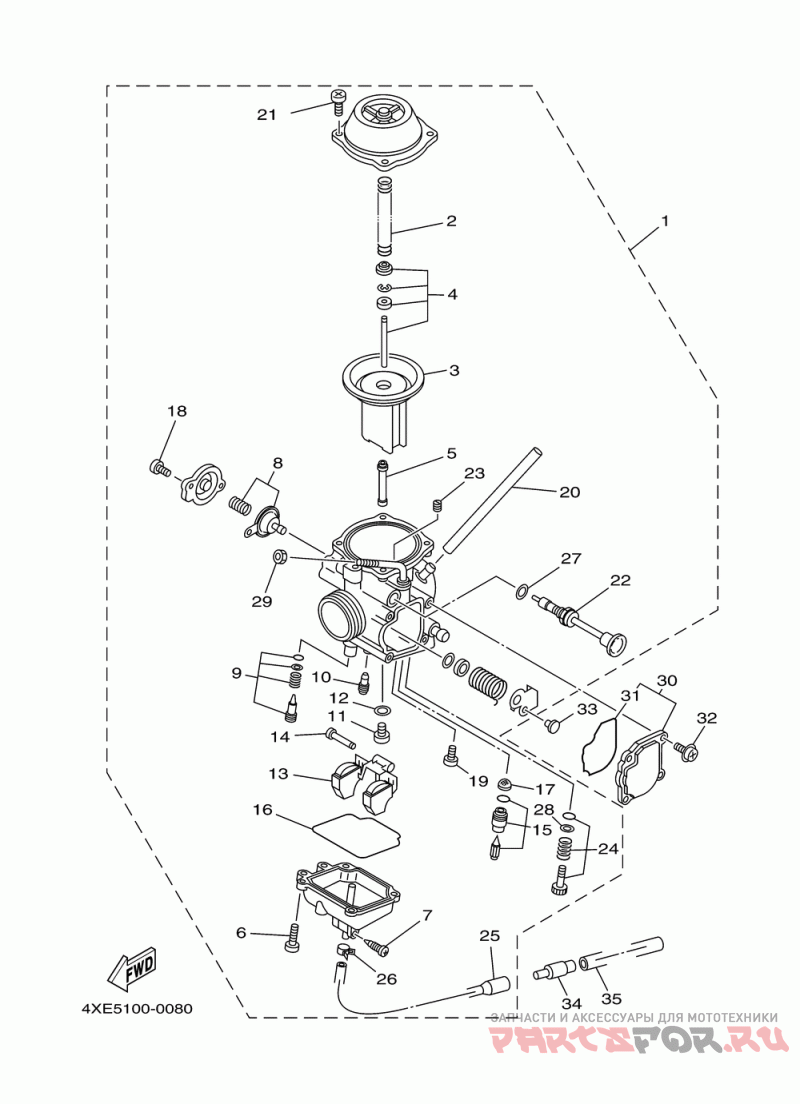

Карбюратор

Yamaha BEAR TRACKER_REALTREE - YFM250XN/YFM250XHN

Yamaha
#oem кодцена
1
4XE-14140-13-00
Carb. Sub Assy (usa)
2
4XE-14933-00-00
Spring, Diaphragm (usa)
3
4WU-14940-00-00
Diaphragm Assy (usa)
4
4XE-1490J-00-00
Needle Set (usa)
5
4WU-14141-42-00
Nozzle, Main (usa)
6
98517-04012-00
Screw, Panhead (usa)
7
12R-14191-00-00
Plug, Drain (usa)
8
26H-1490H-00-00
Diaphragm Set 5 (usa)
9
4RF-14105-00-00
Pilot Screw Set (usa)
10
4G0-14142-42-A0
Jet, Pilot #42.5 (#42.5) (usa)
11
620-14231-19-00
Jet, Main #95 (# 95) (usa)
12
137-14153-00-00
Washer, Main Jet (usa)
13
2VA-14185-00-00
Float (usa)
14
537-14186-00-00
Pin, Float (usa)
15
1UY-14107-20-00
Needle Valve Set (usa)
16
2LN-14147-00-00
O-ring (usa)
17
1J7-14994-00-00
Net, Filter (usa)
18
98517-04012-00
Screw, Panhead (usa)
19
2LN-14565-00-00
Screw Stop (usa)
20
90445-08684-00
Hose (usa)
21
98507-04008-00
Screw, Pan Head (usa)
22
4KB-14993-00-00
Plunger, Starter (usa)
23
2A2-14172-16-00
Jet, Pilot Air 1.6 (1.6) (usa)
24
2VA-14103-00-00
Throttle Screw Set (usa)
25
4KB-14193-20-00
Pipe (usa)
26
4XE-14937-00-00
Clip (usa)
27
4KB-14285-00-00
Washer (usa)
28
22U-14952-00-00
Washer (usa)
29
522-14161-00-00
Nut, Cable Adjusting (usa)
30
4XE-14480-00-00
Cover, Sub Assy (usa)
31
4KB-14147-00-00
O-ring (usa)
32
98517-04012-00
Screw, Panhead (usa)
33
1UY-14155-00-00
Guide, Cable End (usa)
34
24W-14193-00-00
Pipe (usa)
35
91A21-07020-00
Tube, Flexible (3nv) (usa)
