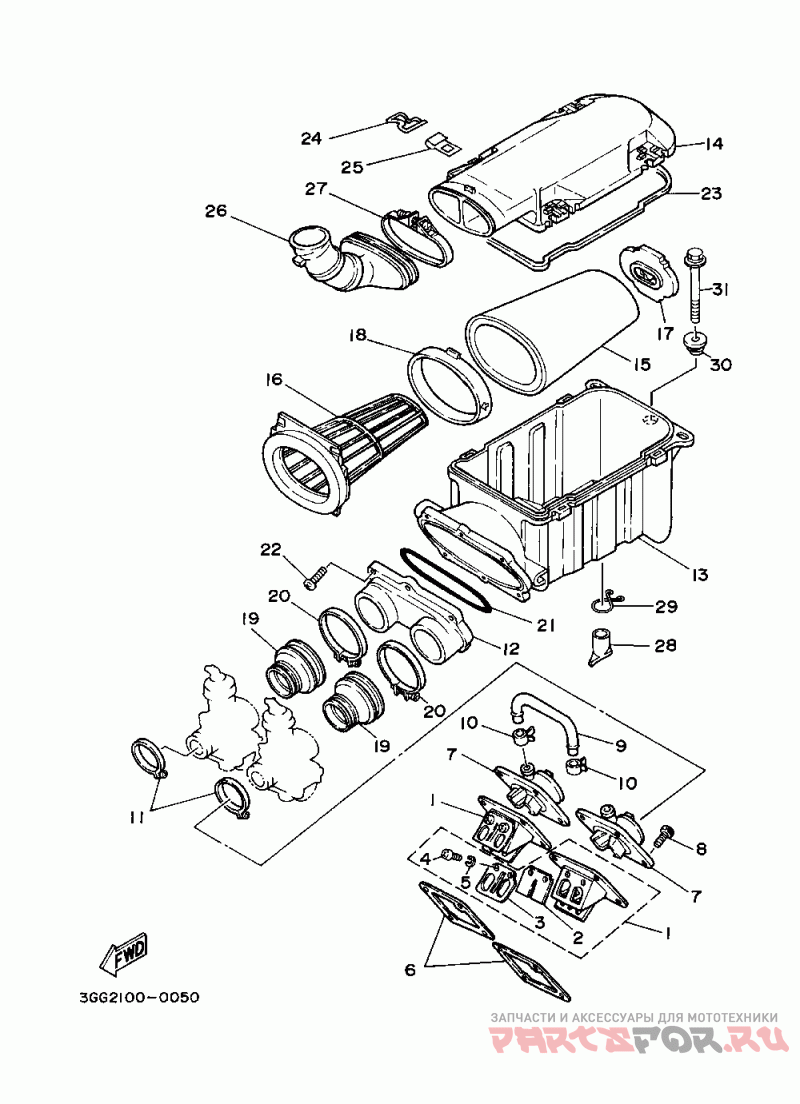

Впускная система

Yamaha Banshee

Yamaha
#oem кодцена
1
2GU-13610-01-00
Reed Valve Assy (u49)
2
2GU-13613-00-00
Reed, Valve (u49)
3
2GU-13616-00-00
Stopper, Reed Valve (u49)
4
98517-03008-00
Screw, Pan (u49)
6
3GG-13621-00-00
Gasket, Valve Seat (u49)
7
31K-13565-01-00
Joint, Carburetor (u49)
8
91317-06025-00
Bolt (4my) (u49)
9
29L-14465-00-00
Pipe (u49)
10
90467-20085-00
Clip, Scissor (u49)
11
90450-44046-00
Hose Clamp Assy (u49)
12
2GU-14411-00-00
Case, Air Cleaner 1 (u49)
13
2GU-14421-01-00
Case, Air Cleaner 2 (u49)
14
2GU-14412-00-00
Cap, Cleaner Case 1 (u49)
15
2GU-14451-00-00
Element, Air Cleaner (u49)
16
5FK-14458-00-00
Guide (u49)
17
2GU-14468-00-00
Plate, Element Fittin (u49)
18
2GU-14459-00-00
Holder, Guide (u49)
19
29L-14453-01-00
Joint, Air Cleaner 1 (u49)
20
90460-68230-00
Clamp, Hose (u49)
21
1VJ-14462-00-00
Seal (u49)
22
97707-50525-00
Screw, Truss (u49)
24
90465-18312-00
Clamp (u49)
25
90468-05184-00
Clip (u49)
26
2GU-14437-00-00
Duct (u49)
27
90460-99291-00
Clamp, Hose (u49)
28
59V-14457-00-00
Seal (u49)
29
90467-22080-00
Clip, Scissor (u49)
30
90480-18171-00
Grommet (u49)
31
90119-06096-00
Bolt, With Washer (u49)
23
1VJ-14462-00-00
Seal (u49)
