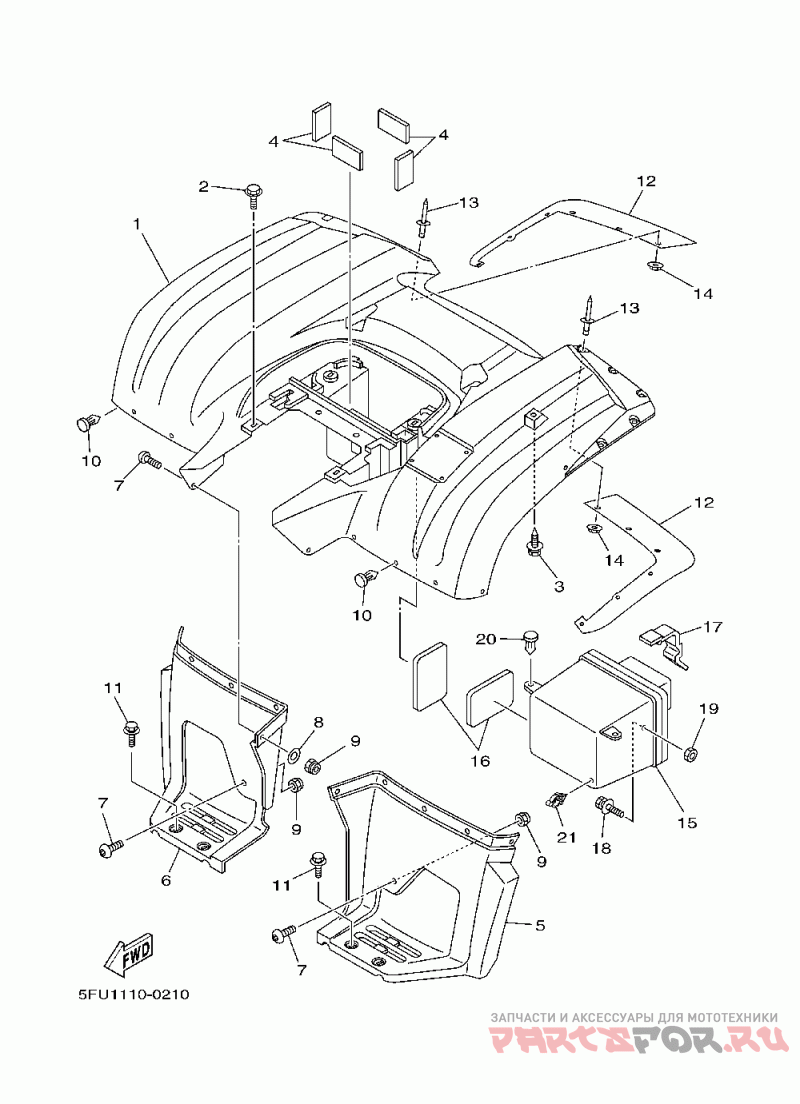

Заднее крыло

Yamaha Big Bear 400 4X4

Yamaha
#oem кодцена
1
5FU-F1600-02-00
Rear Fender (red) Ur Rtr (5fu2)
1
5FU-F1600-12-00
Rear Fender (green) Ur Pdg (5fu2)
1
5FU-F1600-22-00
Rear Fender Assy (dn Ur Dnys1 (5fu2)
2
90119-06118-00
Bolt, With Washer (5fu2)
3
90119-06226-00
Bolt, With Washer (5fu2)
4
4XE-F4145-00-00
Damper, Side Cover (5fu2)
5
5FU-F1621-00-00
Flap (left Rear) (5fu2)
6
5FU-F1691-00-00
Flap (right Rear) (5fu2)
7
90111-06814-00
Bolt, Hex Skt Head (5fu2)
8
90201-068M4-00
Washer, Plate (5fu2)
9
95617-06100-00
Nut, U (5fu2)
10
90269-08813-00
Rivet, Plastic Mat Ma (5fu2)
11
90119-06152-00
Bolt, With Washer (5fu2)
12
5FU-F162H-00-00
Flap 3 (5fu2)
13
90267-60840-00
Rivet (5fu2)
15
4XE-F160A-01-00
Box Comp. (5fu2)
16
5FU-21652-00-00
Protector (5fu2)
17
59V-21646-00-00
Band (5fu2)
19
95707-06600-00
Nut, W/washer (5fu2)
21
90464-12830-00
Clamp (5fu2)
1
5FU-F1600-E2-00
Rear Fender Assy. Ur Pdg (5fu2)
14
90201-068M4-00
Washer, Plate (5fu2)
18
90119-06226-00
Bolt, With Washer (5fu2)
20
90269-08813-00
Rivet, Plastic Mat Ma (5fu2)
