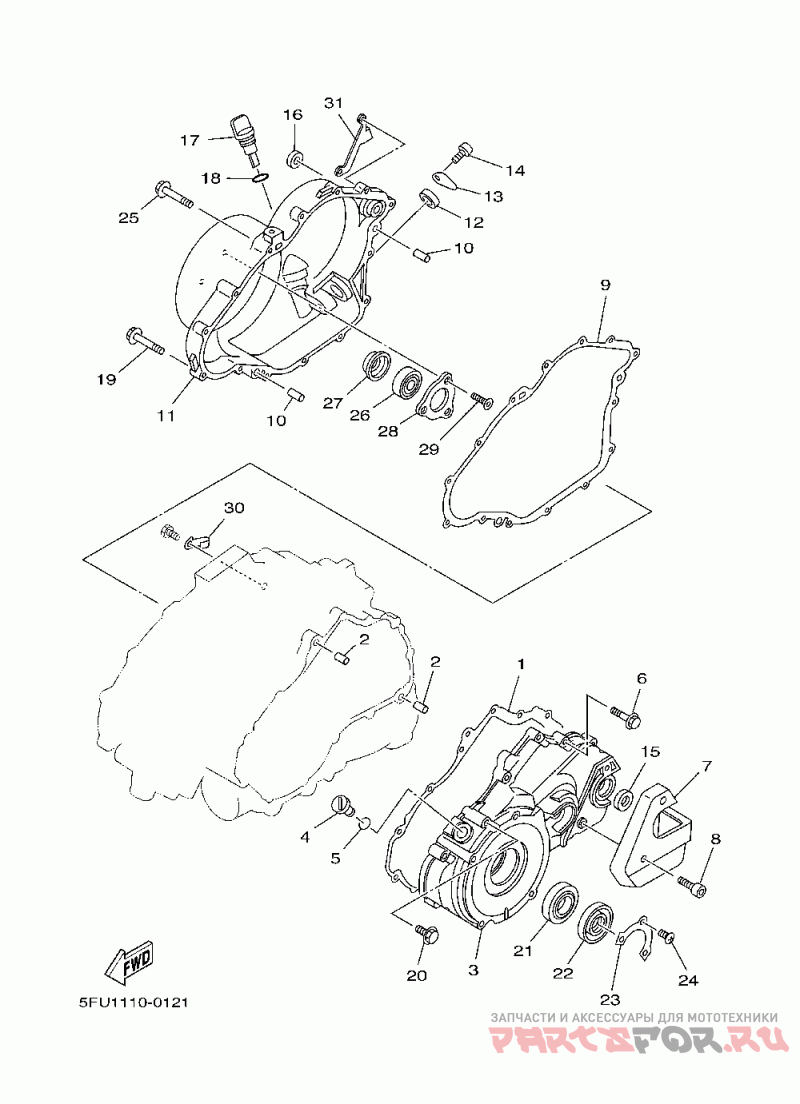

Крышка картера двигателя

Yamaha Big Bear 400 4X4

Yamaha
#oem кодцена
1
4KB-15451-01-00
Gasket, Crcs Cover (5fu2)
2
99510-10114-00
Pin, Dowel (5fu2)
3
4WU-15411-01-00
Cover, Crankcase 1 (5fu2)
4
90340-14117-00
Plug, Straight Scrw (5fu2)
5
93210-14369-00
O-ring (5fu2)
6
95027-06030-00
Bolt, Small Flange (5fu2)
7
4KB-15421-00-00
Cover, Crankcase R (5fu2)
8
91317-06025-00
Bolt (4my) (5fu2)
9
4KB-15462-00-00
Gasket, Crcs Cvr 3 (5fu2)
11
4WU-15431-00-00
Cover, Crankcase 3 (5fu2)
12
90338-28221-00
Plug, Spec'l Shape (5fu2)
13
4KB-15492-00-00
Cover (5fu2)
14
98507-06010-00
Screw, Pan Head (5fu2)
15
93102-14209-00
Oil Seal, Sd-type (5fu2)
16
93102-12321-00
Oil Seal, Sd-type (5fu2)
17
4KB-15362-00-00
Plug, Oil Level (5fu2)
18
93210-19522-00
O-ring (5fu2)
20
95027-06050-00
Bolt, Small Flange (5fu2)
21
93306-07801-00
Bearing (5fu2)
22
93102-28476-00
Oil Seal, Sw-type (5fu2)
23
1UY-15719-00-00
Washer, Thrust (5fu2)
24
90151-05023-00
Screw, Countersunk (5fu2)
25
95027-06040-00
Bolt, Small Flange (5fu2)
26
93306-20335-00
Bearing (5fu2)
27
93101-17113-00
Oil Seal, S-type (5fu2)
28
4SH-15381-00-00
Plate, Brng Cover (5fu2)
29
90151-06025-00
Screw, Countersunk (5fu2)
30
90465-08377-00
Clamp (5fu2)
31
4KB-18128-00-00
Bracket (5fu2)
10
99510-10114-00
Pin, Dowel (5fu2)
19
95027-06030-00
Bolt, Small Flange (5fu2)
