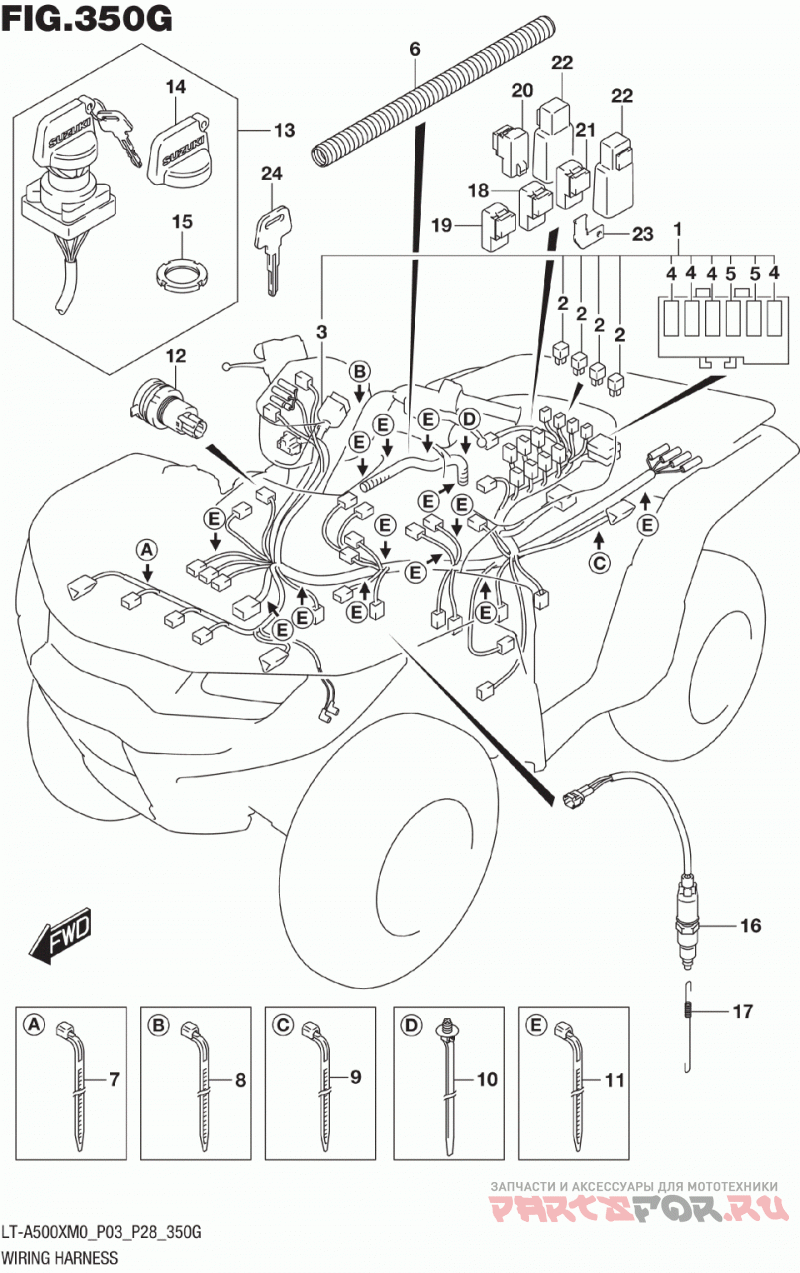

Wiring harness (lt-a500xpzm0 p03)

Suzuki LT,A500X

Suzuki
#oem кодцена
1
36610-35K70
HARNESS, WIRING
10
09407-17403
CLAMP (L:154)
11
09407-19401
CLAMP (L:190)
12
38850-03G10
TERMINAL, POWER SOURCE
13
37110-34K00
SWITCH ASSY, IGNITION
14
37142-19B00
MASCOT, KEY
15
37112-24500
Гайка
16
37740-38F01
Переключатель в сборе, стоп-сигнал
17
09443-06080
Пружина
18
38740-31G11
RELAY ASSY (FOR FUEL PUMP)
19
38740-31G11
RELAY ASSY (FOR BRAKE PARKING)
2
32800-16A00
Регулятор напряжения
20
38740-31G11
RELAY ASSY (FOR DEF LOCK)
21
38740-31G11
RELAY ASSY (FOR BACKUP LAMP)
22
38860-65G00
RELAY ASSY (FOR DRIVE)
23
38741-05300
BRACKET, BACKUP RELAY (OPT)
24-1
37146-19B00
KEY, BLANK TYPE (C) (OPT)
24-2
37146-19B10
KEY, BLANK TYPE (D) (OPT)
24-3
37146-19B20
KEY, BLANK TYPE (E) (OPT)
24-4
37146-19B30
KEY, BLANK TYPE (F) (OPT)
3
36618-31G00
COVER, SPEED
4
09481-10501
FUSE (10A)
5
09481-15501
Предохранитель 15А
6
36619-31G00
GUIDE, WIRING HARNESS
7
09407-11401
CLAMP (L:95)
8
09407-12402
CLAMP (L:120)
9
09407-14403
CLAMP (L:125)
