Rear fender (lt-a500xm0 p28) для квадроциклов Suzuki LT,A500X (2020)

Москва и регионы России

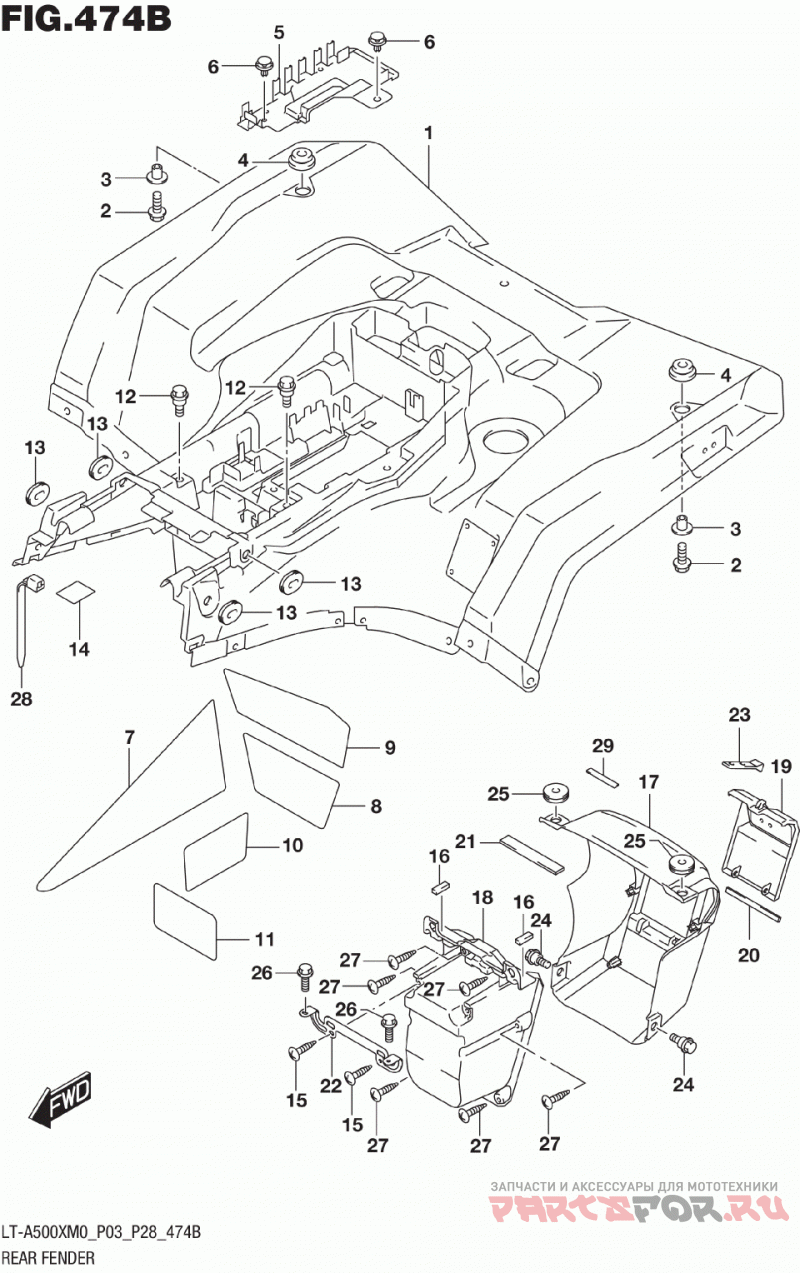

Rear fender (lt-a500xm0 p28)

Suzuki LT,A500X

Rear fender (lt-a500xm0 p28)

#

oem код

название

цена

1-1

63111-34K00-YT9

FENDER, REAR (RED)

FENDER, REAR (RED)

1-2

63111-34K00-YLG

FENDER, REAR (GREEN)

FENDER, REAR (GREEN)

1-3

63111-34K00-30H

FENDER, REAR (WHITE)

FENDER, REAR (WHITE)

1-4

63111-34K20-PHW

FENDER, REAR (CAMOUFLAGE)

FENDER, REAR (CAMOUFLAGE)

1-5

63111-34K40-QFA

FENDER, REAR (BLACK)

FENDER, REAR (BLACK)

1-6

63111-34K40-QMA

FENDER, REAR (BRONZE)

FENDER, REAR (BRONZE)

10

SHIELD, REAR FENDER

SHIELD, REAR FENDER

11

SHIELD, REAR FENDER

SHIELD, REAR FENDER

12

BOLT (6X13.5)

BOLT (6X13.5)

13

Подушка

Подушка

14

CUSHION, REAR FENDER, RH (CUT AS REQUIRED)

CUSHION, REAR FENDER, RH (CUT AS REQUIRED)

15

Винт

Винт

16

CUSHION, REAR COMB

CUSHION, REAR COMB

17

COVER, REAR

COVER, REAR

18

BOX, INNER

BOX, INNER

19

LID, OUTER

LID, OUTER

2

Болт

Болт

20

CUSHION, REAR COVER

CUSHION, REAR COVER

21

CUSHION, REAR COMB NO.2

CUSHION, REAR COMB NO.2

22

BRACKET, REAR COVER

BRACKET, REAR COVER

23

BAND, REAR BOX

BAND, REAR BOX

24

BOLT (6X13.5)

BOLT (6X13.5)

25

Подушка

Подушка

26

Болт

Болт

27

Винт

Винт

28

CLAMP (L:125)

CLAMP (L:125)

29

CUSHION, REAR COVER NO.2

CUSHION, REAR COVER NO.2

3

Шайба

Шайба

4

Подушка

Подушка

5

Крышка заднего бампера

Крышка заднего бампера

6

Зажим

Зажим

7

SHIELD, REAR FENDER

SHIELD, REAR FENDER

8

SHIELD, REAR FENDER

SHIELD, REAR FENDER

9

SHIELD, REAR FENDER

SHIELD, REAR FENDER
