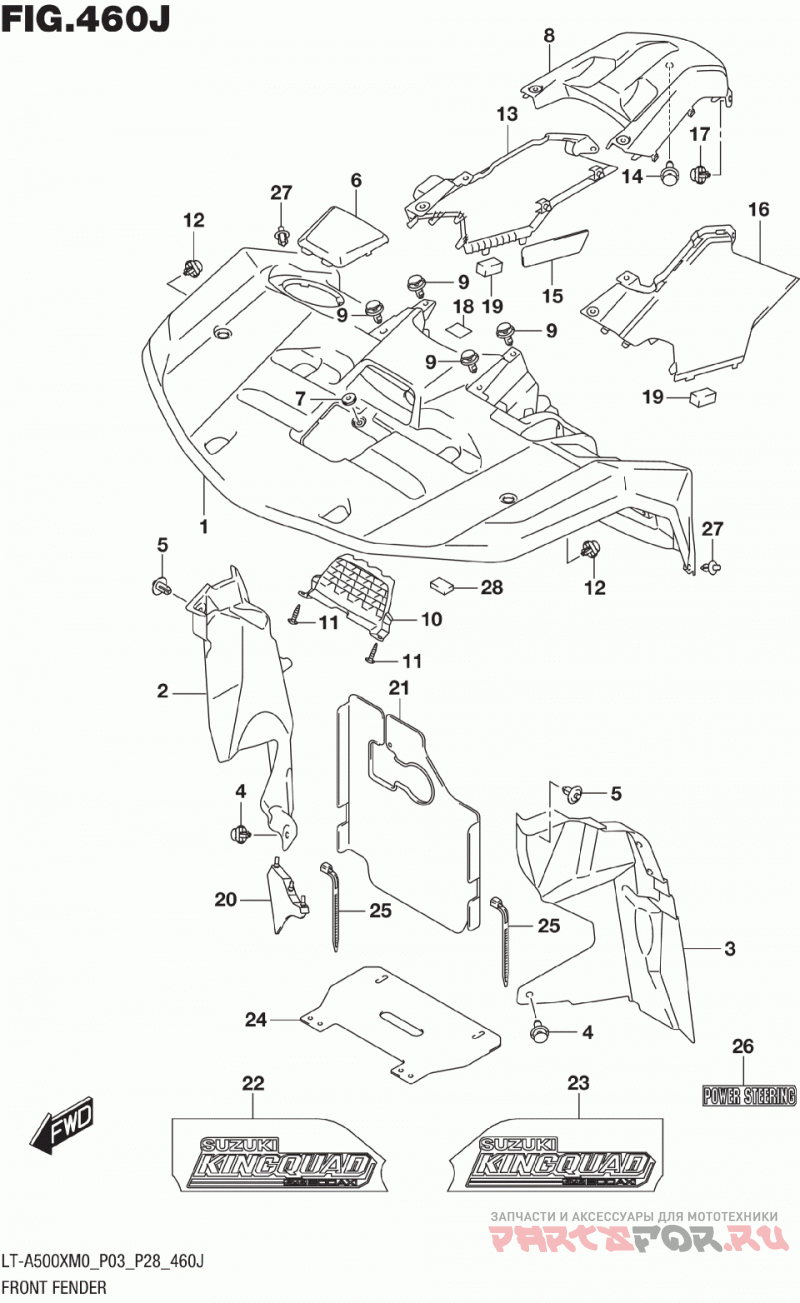

Front fender (lt-a500xpzm0 p33)

Suzuki LT,A500X

Suzuki
#oem кодцена
1-1
53111-34K00-YT9
FENDER, FRONT (RED)
1-2
53111-34K00-YLG
FENDER, FRONT (GREEN)
1-3
53111-34K00-30H
FENDER, FRONT (WHITE)
1-4
53111-34K20-PHW
FENDER, FRONT (CAMOUFLAGE)
1-5
53111-34K40-QFA
FENDER, FRONT (BLACK)
1-6
53111-34K40-QMA
FENDER, FRONT (BRONZE)
10
53212-34K00
COVER, INNER
11
03541-0516A
Винт
12
09409-08008
Зажим
13-1
53112-34K01-YT9
COVER, SIDE RH (RED)
13-2
53112-34K01-YLG
COVER, SIDE RH (GREEN)
13-3
53112-34K01-30H
COVER, SIDE RH (WHITE)
13-4
53112-34K11-PHW
COVER, SIDE RH (CAMOUFLAGE)
13-5
53112-34K21-QFA
COVER, SIDE RH (BLACK)
13-6
53112-34K21-QMA
COVER, SIDE RH (BRONZE)
14
09409-08008
Зажим
15
53113-34K00
SHIELD, SIDE COVER NO.2
16-1
53122-34K01-YT9
COVER, SIDE LH (RED)
16-2
53122-34K01-YLG
COVER, SIDE LH (GREEN)
16-3
53122-34K01-30H
COVER, SIDE LH (WHITE)
16-4
53122-34K11-PHW
COVER, SIDE LH (CAMOUFLAGE)
16-5
53122-34K21-QFA
COVER, SIDE LH (BLACK)
16-6
53122-34K21-QMA
COVER, SIDE LH (BRONZE)
17
09409-08008
Зажим
18
44612-13600
CUSHION, COVER INNER (CUT AS REQUIRED)
19
53114-34K00
CUSHION, COVER SIDE
2
53411-34K00
MUDFLAP, INNER RH
20
53116-31G00
MUDGUARD, SIDE RH
21
53117-31G00
COVER, CENTER
22
68151-35K00-BM6
EMBLEM, RH (GRAY/RED)
23
68152-35K00-BM6
EMBLEM, LH (GRAY/RED)
24
53113-31G10
Защита
25
09407-14403
CLAMP(L:125)
26
68151-31GD1-BM7
EMBLEM,
27
09409-08008
Зажим
28
63113-48G00
CUSHION, EPS UNIT
3
53421-34K00
MUDFLAP, INNER LH
4
09409-08008
Зажим
5
09409-07333
Зажим
6-1
53341-31G04-YT9
LID (RED)
6-2
53341-31G04-YLG
LID (GREEN)
6-3
53341-31G04-30H
LID (WHITE)
6-4
53341-31GC4-PHW
LID (CAMOUFLAGE)
6-5
53341-31G60-QFA
LID (BLACK)
6-6
53341-31G53-QMA
LID (BRONZE)
7
09320-08018
Подушка
8
53119-34K01
FENDER, CENTER
9
09409-08008
Зажим
