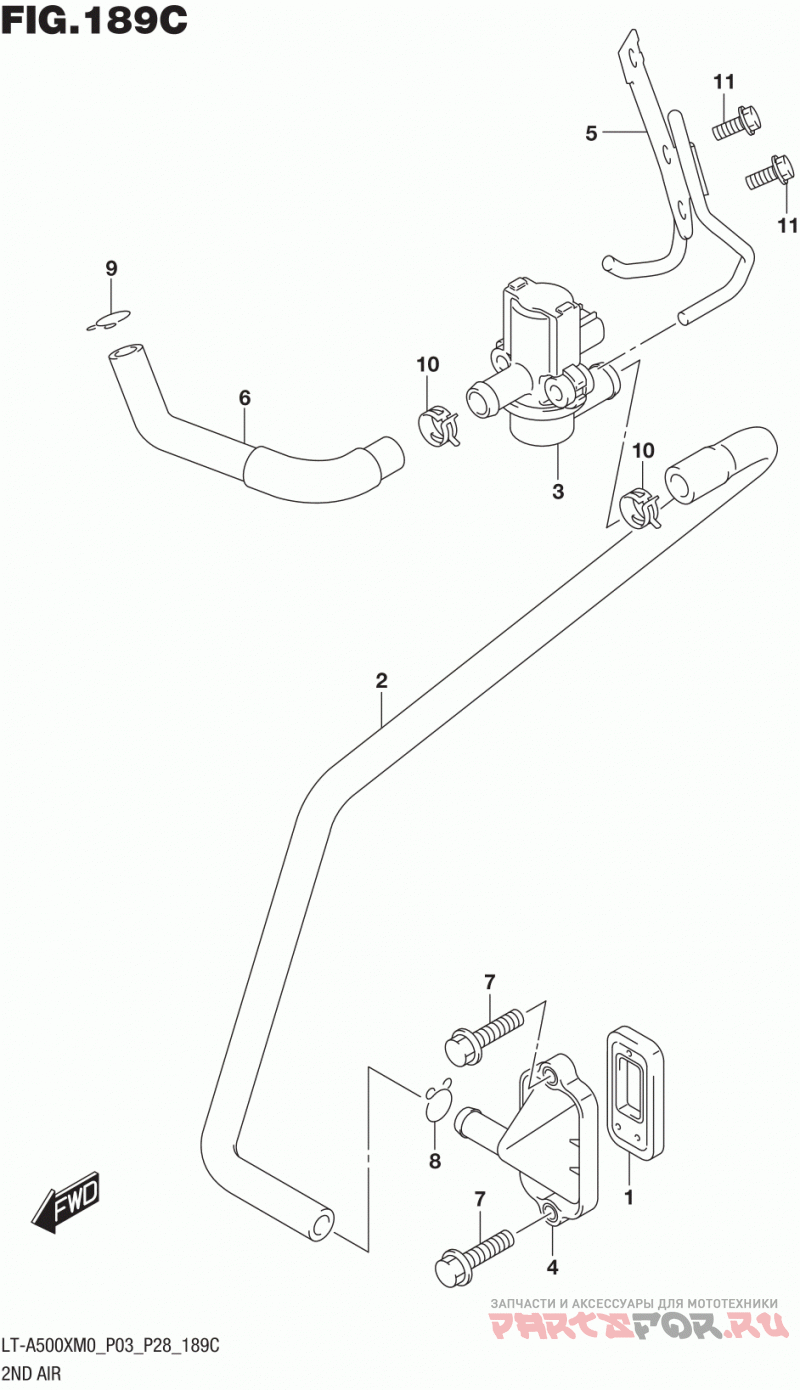

2nd air (lt-a500xm0 p33)
Suzuki LT,A500X
| # | oem код | название | цена |
|---|---|---|---|
1 | 18450-06G00 VALVE ASSY 2ND AIR REED | VALVE ASSY 2ND AIR REED | |
10 | 09401-17401 Зажим | Зажим | |
11 | 01550-0610A Болт | Болт | |
2 | 18461-11H00 HOSE, 2ND AIR VALVE | HOSE, 2ND AIR VALVE | |
3 | 18510-29G60 VALVE ASSY, AIR CUT | VALVE ASSY, AIR CUT | |
4 | 18531-06G01 COVER, 2ND AIR | COVER, 2ND AIR | |
5 | 18610-34K00 BRACKET, 2ND AIR VALVE | BRACKET, 2ND AIR VALVE | |
7 | 09103-06201 Болт (6X20) | Болт (6X20) | |
8 | 09401-15101 Зажим | Зажим | |
9 | 09401-17201 Зажим | Зажим |
