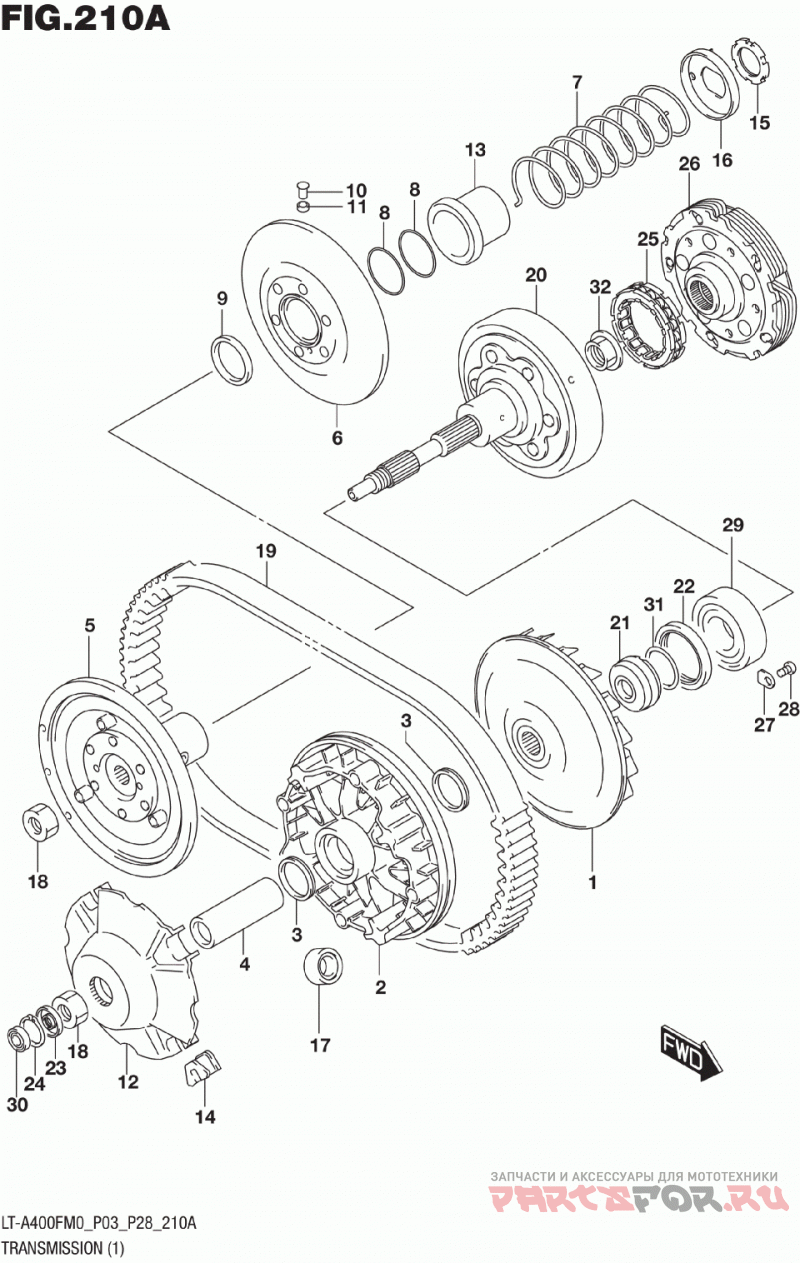

Трансмиссия 1

Suzuki LT,A400F 2020

Suzuki
#oem кодцена
1
21110-38F00
FACE, FIXED DRIVE
10
21248-15F01
PIN, MOVABLE DRIVEN
11
21249-15F00
SPACER, MOVABLE DRIVEN
12
21431-38F00
PLATE, MOVABLE DRIVE
13
21471-38F01
SHEET, MOVABLE DRIVEN
14
21481-14F00
DAMPER, MOVABLE DRIVE
15
21518-38F00
NUT, DRIVEN PULLEY
16
21519-38F00
HOLDER, MOVABLE DRIVEN
17
21650-15F20
ROLLER, MOVABLE DRIVE
18
09140-16032
Гайка
19
27601-38F00
V-BELT, DRIVE
2
21120-38F00
FACE, MOVABLE DRIVE
20
21100-38F00
HOUSING, CLUTCH
21
21102-38F00
SPACER, FIXED DRIVE LH
22
21104-09F60
SEAL, CLUTCH HOUSING
23
09283-12008
OIL SEAL (12X32X5)
24
08331-41329
Пружинное стопорное кольцо
25
21273-44D00
Выжимной
26
21500-38F10
CLUTCH ASSY, SHOE
27
24741-21A00
Обойма подшипника
28
09125-06122
Винт (6x12)
29
09262-40010
BEARING (40X80X18)
3
21124-14F00
SEAL, MOVABLE DRIVE
30
08113-6201B
Подшипник
31
09280-40010
O RING (D:2.4,ID:39.7)
32
09159-18023
Гайка
4
21125-38F01
SPACER, MOVABLE DRIVE
5
21210-38F02
FACE, FIXED DRIVEN
6
21240-38F02
FACE, MOVABLE DRIVEN
7
21243-38F01
SPRING, MOVABLE DRIVEN
8
21245-38F00
O RING, MOVABLE DRIVEN
9
21247-38F00
SEAL, MOVABLE DRIVEN OIL
