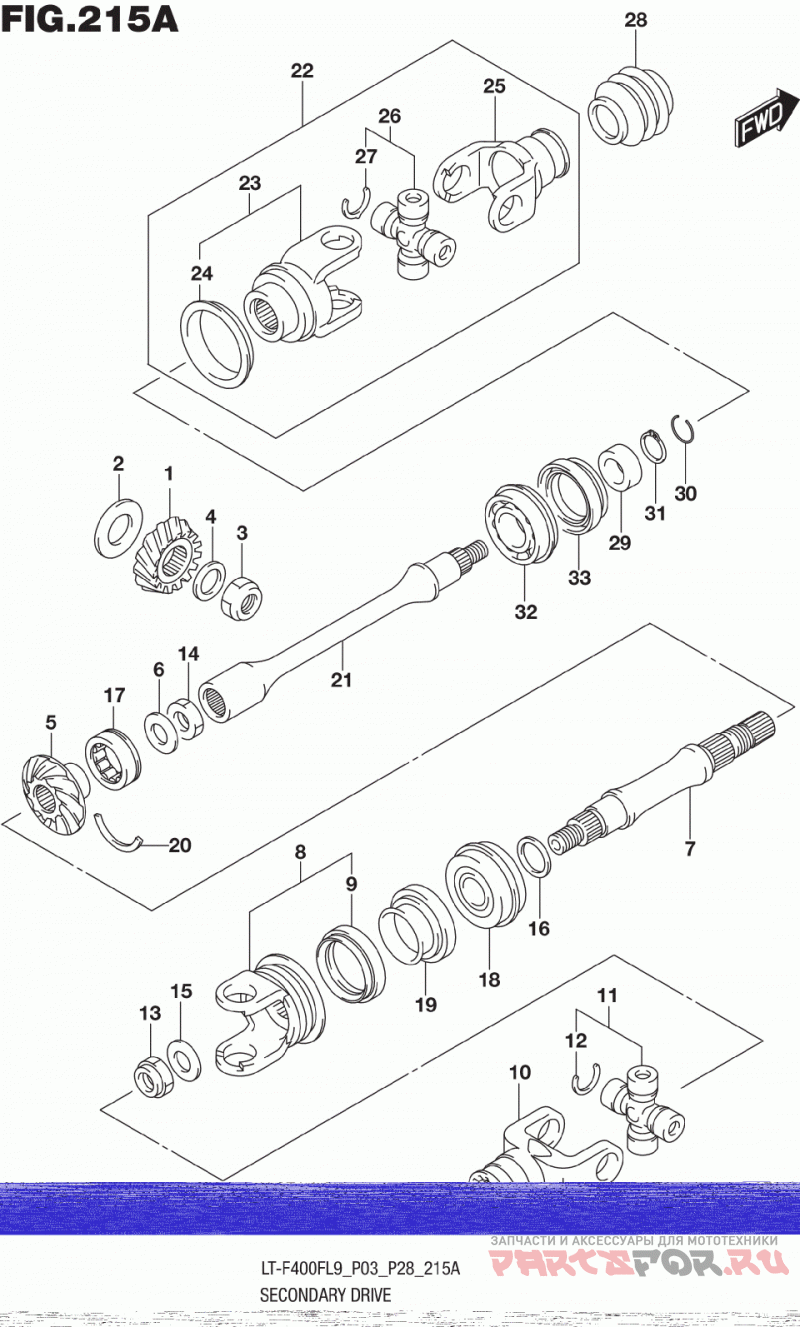

GEAR, SEC DRIVE BEVEL (NT:15)

YOKE, PROP SHAFT JOINT REAR

JOINT SET, UNIVERSAL

Пружинное стопорное кольцо

Гайка

Гайка

WASHER (16X30X3)

SHIM SET, SEC DRIVEN (T:0.55/0.58/0.60/0.63/0.65/0.68/ 0.70/0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/0.98/ 1.00/1.03/1.05/1.08/1.10/1.13/ 1.15/1.18/1.20/1.23/1.25/1.28/ 1.30/1.33/1.35/1

BEARING (30X50X17)

BEARING (25X52X20.6)

OIL SEAL (34X52X9)

SHIM SET, SEC DRIVE BEVEL GEA (T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.

C RING

SHAFT, SEC DRIVEN OUTPUT, FR

YOKE ASSY, UNIVERSAL JOINT

YOKE, FR DRIVE OUTPUT

PLATE, OUTPUT

YOKE, PROP SFT JOINT, FR

JOINT ASSY, UNIVERSAL

Пружинное стопорное кольцо

BOOT, PROPELLER SHAFT

COLLAR, FRONT DRIVE OUTPUT

Гайка

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Подшипник (25x52x15)

OIL SEAL (34X52X9)

SHIM (20X32X1)

GEAR, SEC DRIVEN BEVEL (NT:17

Шайба

SHAFT, SEC DRIVEN OUTPUT REAR

YOKE, REAR DRIVE OUTPUT

PLATE, OUTPUT
