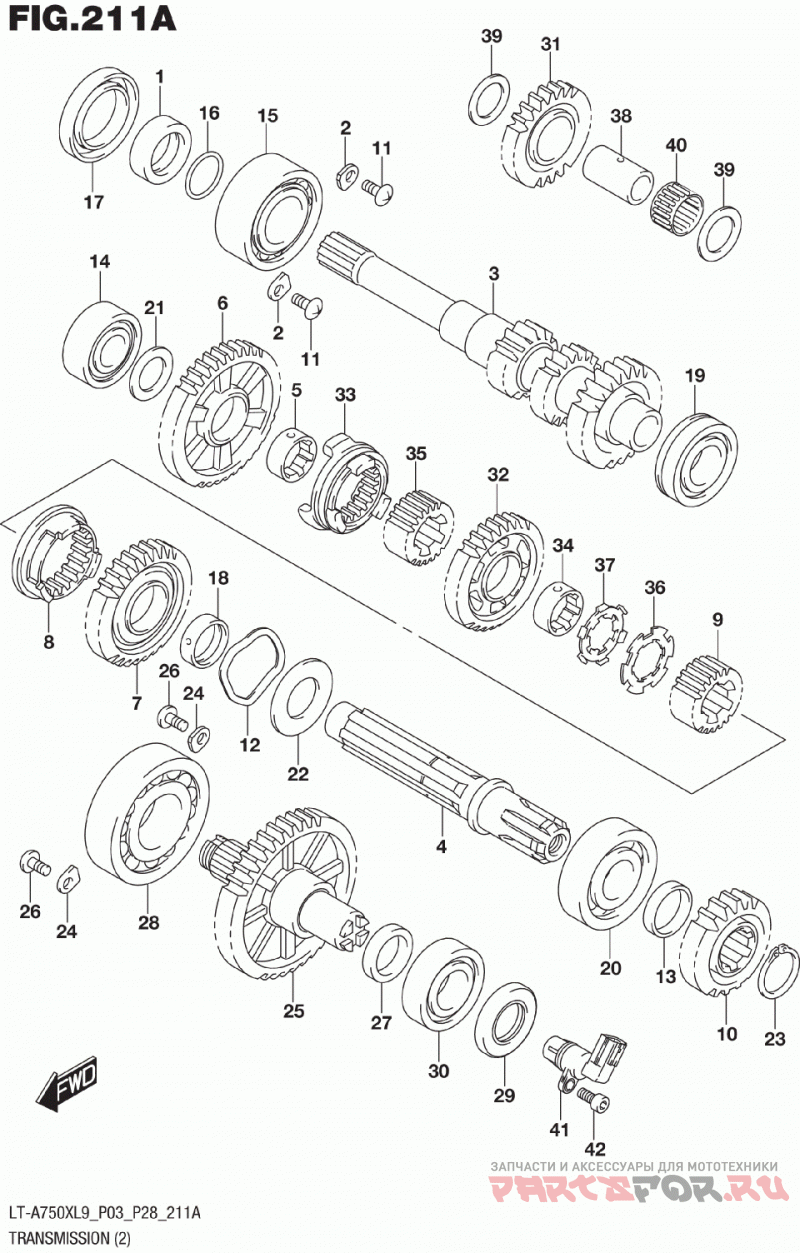

Трансмиссия 2

Suzuki LT,A750X,XP,XPZ

Suzuki
#oem кодцена
1
21102-31G00
SPACER, DRIVE SHAFT
10
29411-31G00
GEAR, SUB T/M DRIVE NO.2 (NT:21)
11
09125-06122
Винт (6x12)
12
09164-34001
Шайба
13
09180-25097
SPACER (25X30X7)
14
09262-20139
BEARING (20X47X14)
15
09267-30005
BEARING (30X62X23.8)
16
09280-25004
O RING (D:2.4,ID:24.7)
17
09283-38025
OIL SEAL (38X56X7)
18
24252-19F00
BUSH, SUB T/M DRIVEN GR
19
09262-25003
Подшипник (25x52x15)
2
24741-21A00
RETAINER, DRIVE SHAFT BRG RH
20
09262-25073
BEARING (25X62X17)
21
08211-20363
Шайба
22
08211-25463
Шайба
23
08331-31259
Пружинное стопорное кольцо
24
24741-21A00
RETAINER, SEC DRIVE SHAFT BRG
25
29120-31G00
SHAFT, SUB T/M OUTPUT (NT:40)
26
09125-06122
Винт (6x12)
27
09180-25083
SPACER (25X34X5.5)
28
09262-35076
BEARING (35X80X21)
29
09283-25076
OIL SEAL (25X45X5)
3
29111-31G01
SHAFT, DRIVE (NT:16/17/25)
30
09262-25003
Подшипник (25x52x15)
31
24561-31G20
GEAR, REVERSE IDLE (NT:23)
32
24571-31G00
GEAR, REVERSE DRIVEN (NT:32)
33
24581-31G00
DOG, SUB T/M SELECT SLIDING
34
29215-07G00
BUSH, REVERSE DRIVEN GEAR
35
29332-31G00
SPACER, REVERSE SELECT
36
09167-25013
Гровер
37
09169-25001
Шайба
38
24551-31G00
SHAFT, REVERSE IDLE GEAR
39
09181-20195
SHIM (20X30X1)
4
29131-31G00
SHAFT, SUB T/M COUNTER
40
09263-20060
BEARING (20X24X13)
41
34990-31G01
Датчик скорости
42
07130-0616B
Болт
5
29215-07G00
BUSH, SUB T/M DRIVEN GR LOW
6
29311-31G00
GEAR, SUB T/M DRIVEN LOW (NT:41)
7
29321-31G00
GEAR, SUB T/M DRIVEN HIGH (NT:31)
8
29331-31G10
DOG, GEAR SHIFT HIGH
9
29332-31G00
SPACER, SUB T/M SELECT
