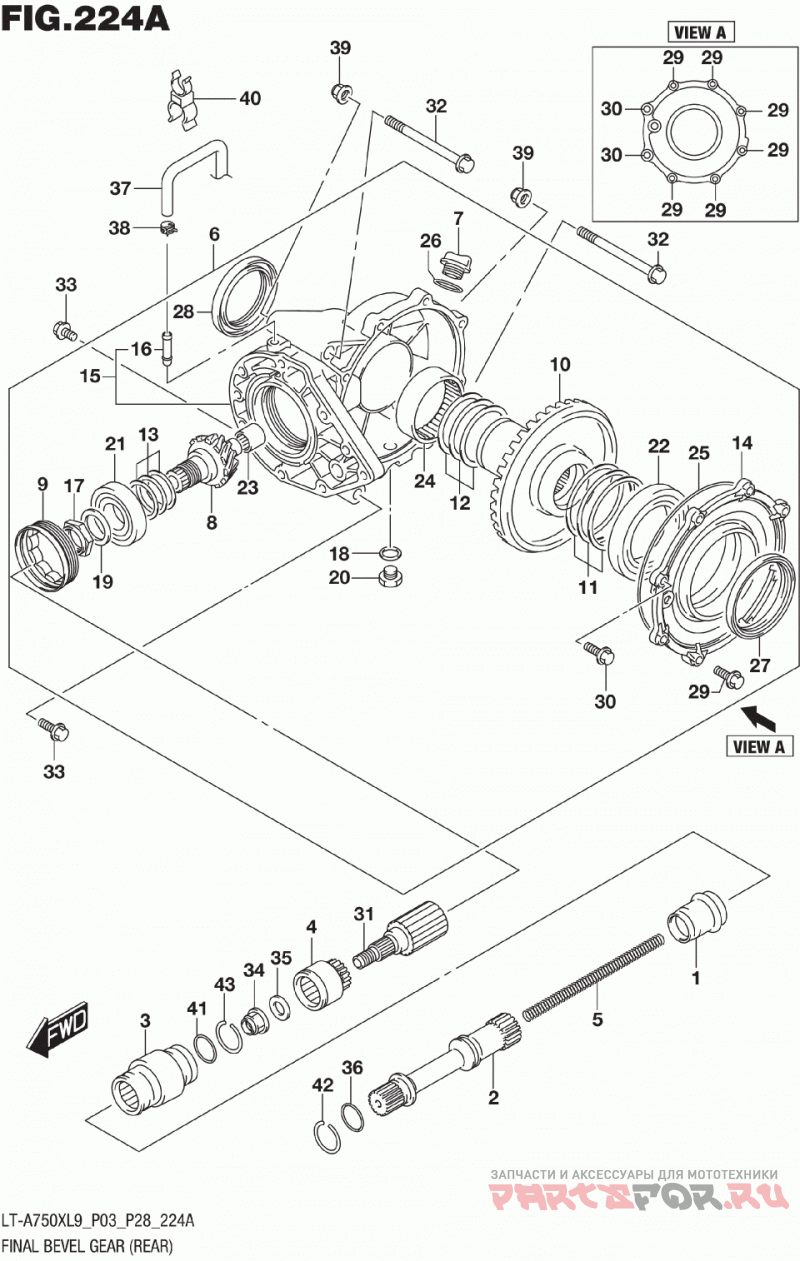

Редуктор задний

Suzuki LT,A750X,XP,XPZ

Suzuki
#oem кодцена
1
27153-31G41
BOOT, JOINT SHAFT
10
27320-31G00
GEAR, RR FINAL DRIVEN (NT:36
11
27326-31810
SHIM SET, FINAL DRIVEN LH (T:0.30/0.35/0.40/0.50/0.60)
12
27327-31810
SHIM SET, FINAL DRIVEN RH (T:0.30/0.35/0.40/0.50/0.60)
13
27445-24810
SHIM SET, FINAL DRIVE GEAR (T:0.30/0.35/0.40/0.50/0.60)
14
27451-31G10
CASE, REAR FINAL GEAR LH
15
27460-31G10
CASE, REAR FINAL GEAR RH
16
09364-08016
Соединение
17
09140-28006
Гайка
18
09168-14002
GASKET (13.8X18.8X4.8)
19
09181-28195
SHIM (28X38X1)
2
27155-34K00
SHAFT, REAR PROPELLER
20
09247-14013
Заглушка
21
09262-28023
BEARING (28X68X18)
22
09262-65001
BEARING (65X100X11)
23
09263-20062
BEARING (20X34X18)
24
09263-55003
BEARING (55X67X20)
25
09280-00046
O RING (D:2.45,ID:156)
26
09280-17003
O RING (D:3.1,ID:16.8)
27
09283-59001
OIL SEAL (59X88X8)
28
09283-59001
OIL SEAL (59X88X8)
29
09103-08357
BOLT (8X35)
3
27157-34K00
JOINT, REAR PROPELLER
31
27594-31G80
SHAFT, RR FINAL DRIVE
32
09103-10148
BOLT (10X110)
33
09103-10405
Болт (10x30)
34
09159-16003
Гайка
35
09160-16026
WASHER (16X30X3)
36
09280-20002
O RING (D:3.1,ID:19.4)
37
27491-31G00
Трубка,резина
38
09401-10403
Зажим
39
09159-10115
Гайка
4
27171-34K00
COUPLING, RR PROP SHAFT
40
09408-00235
Зажим
41
09280-35008
O RING (D:3.1,ID:34.4)
42
09381-21002
C-RING
43
09380-36005
C-RING
5
27192-31G10
SPRING, REAR PROPELLER
6
27410-31G50
CASE ASSY, REAR FINAL GEAR
7
09259-20008-XC0
Заглушка
8
27311-31G50
GEAR, RR FINAL DRIVE BEVEL (NT:10)
9
27312-38F00
STOPPER, FINAL DRIVE
