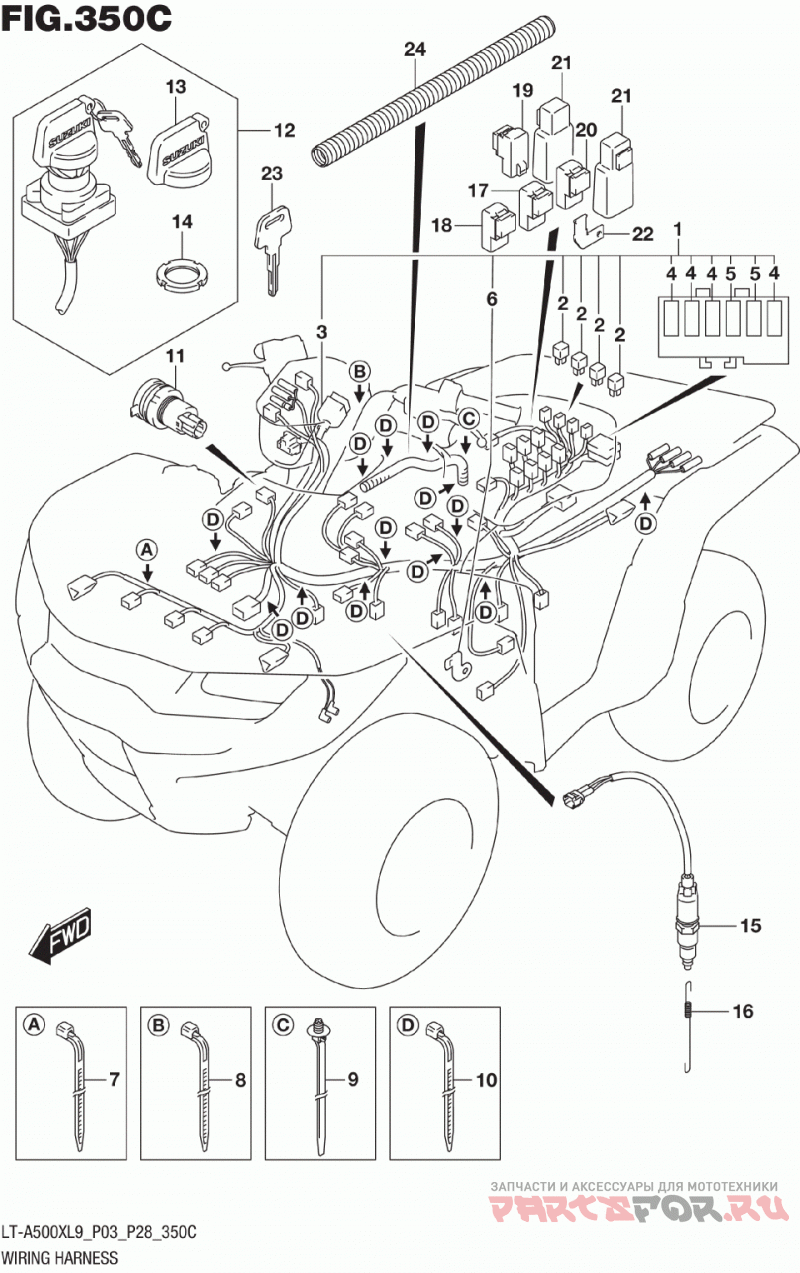

Wiring harness (lt-a500xl9 p33)

Suzuki LT,A500X,XP

Suzuki
#oem кодцена
1
36610-35K00
HARNESS, WIRING
10
09407-19401
CLAMP (L:190)
11
38850-03G10
TERMINAL, POWER SOURCE
12
37110-34K00
SWITCH ASSY, IGNITION
13
37142-19B00
MASCOT, KEY
14
37112-24500
Гайка
15
37740-38F01
Переключатель в сборе, стоп-сигнал
16
09443-06080
Пружина
17
38740-31G11
RELAY ASSY (FOR FUEL PUMP)
18
38740-31G11
RELAY ASSY (FOR BRAKE PARKING)
19
38740-31G11
RELAY ASSY (FOR DEF LOCK)
2
32800-16A00
Регулятор напряжения
20
38740-31G11
RELAY ASSY (FOR BACKUP LAMP)
21
38860-65G00
RELAY ASSY (FOR DRIVE)
22
38741-05300
BRACKET, BACKUP RELAY (OPT)
23-1
37146-19B00
KEY, BLANK TYPE (C) (OPT)
23-2
37146-19B10
KEY, BLANK TYPE (D) (OPT)
23-3
37146-19B20
KEY, BLANK TYPE (E) (OPT)
23-4
37146-19B30
KEY, BLANK TYPE (F) (OPT)
24
36619-31G00
GUIDE, WIRING HARNESS
3
36618-31G00
COVER, SPEED
4
09481-10501
FUSE (10A)
5
09481-15501
Предохранитель 15А
7
09407-11401
CLAMP (L:95)
8
09407-12402
CLAMP (L:120)
9
09407-17403
CLAMP (L:154)
