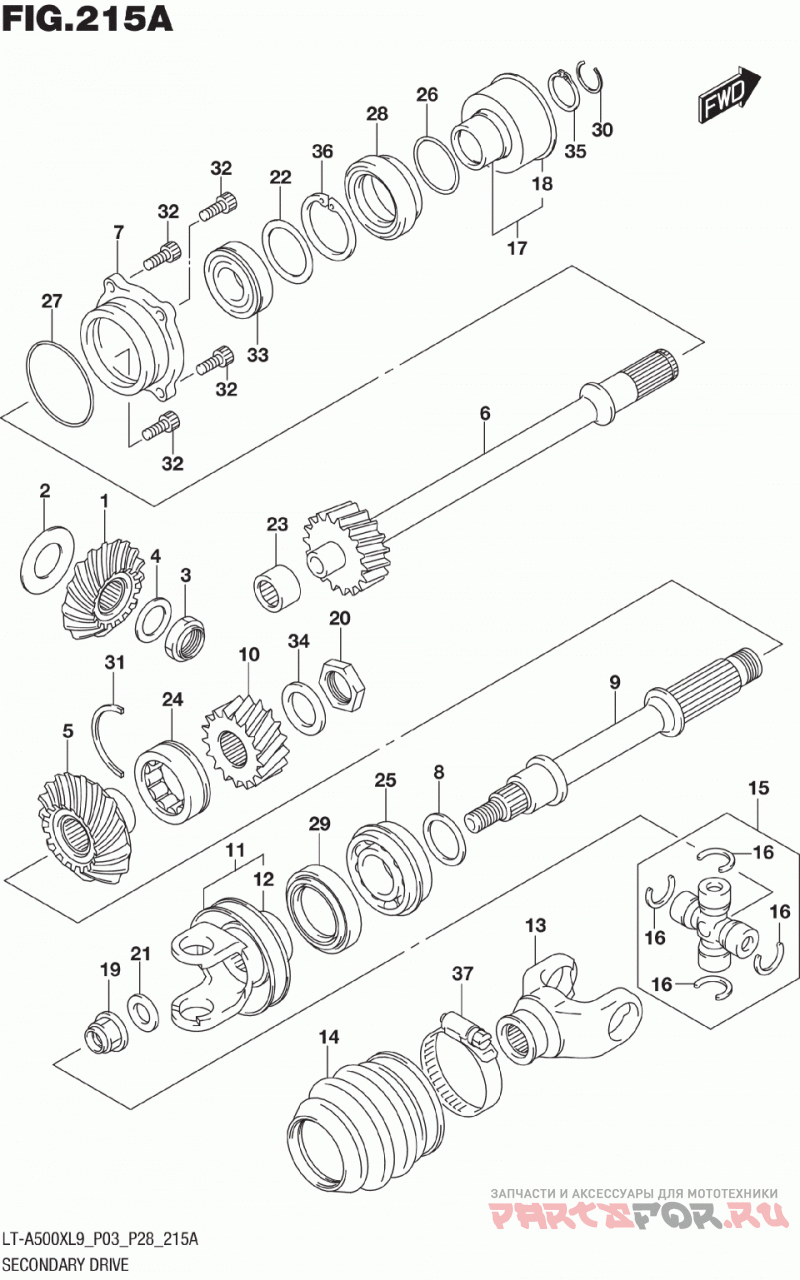

GEAR, SEC DRIVE BEVEL (NT:15)

GEAR, SEC DRIVEN OUTPUT (NT:18)

YOKE, RR DRIVE OUT

FLANGE, OUTPUT YOKE

YOKE, PROP SHAFT

BOOT, REAR OUTPUT JOINT

JOINT SET, UNIVERSAL

Стопорное кольцо

COLLAR, FRONT DRIVE

PLATE, OUTPUT OIL SEAL

Гайка

SHIM SET, SEC DRIVE BEVEL (T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1

Гайка

WASHER (16X30X3)

SHIM (40X52X1)

Подшипник(25x37x17)

BEARING (30X50X17)

BEARING (25X52X20.6)

O RING (D:1.9,ID:24.5)

O RING (D:3.5,ID:65.2)

OIL SEAL (34X52X9)

OIL SEAL (34X52X9)

Гайка

Стопорное кольцо

C-RING

Болт

Подшипник (25x52x15)

Шайба

Пружинное стопорное кольцо

Пружинное стопорное кольцо

Зажим

SHIM (20X32X1)

GEAR, SEC DRIVEN BEVEL (NT:19

SHAFT, SEC OUTPUT, FR (NT:18)

HOUSING, FR OUTPUT SHAFT

SHIM SET, SEC DRIVEN BEVEL (T:0.55/0.58/0.60/0.63/0.65/0.68/ 0.70/0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/0.98/ 1.00/1.03/1.05/1.08/1.10/1.13/ 1.15/1.18/1.20/1.23/1.25/1.28/ 1.30/1.33/

SHAFT, SEC OUTPUT, RR
