Задняя подвеска для квадроциклов Suzuki LT,A500X,XP (2019)

Москва и регионы России

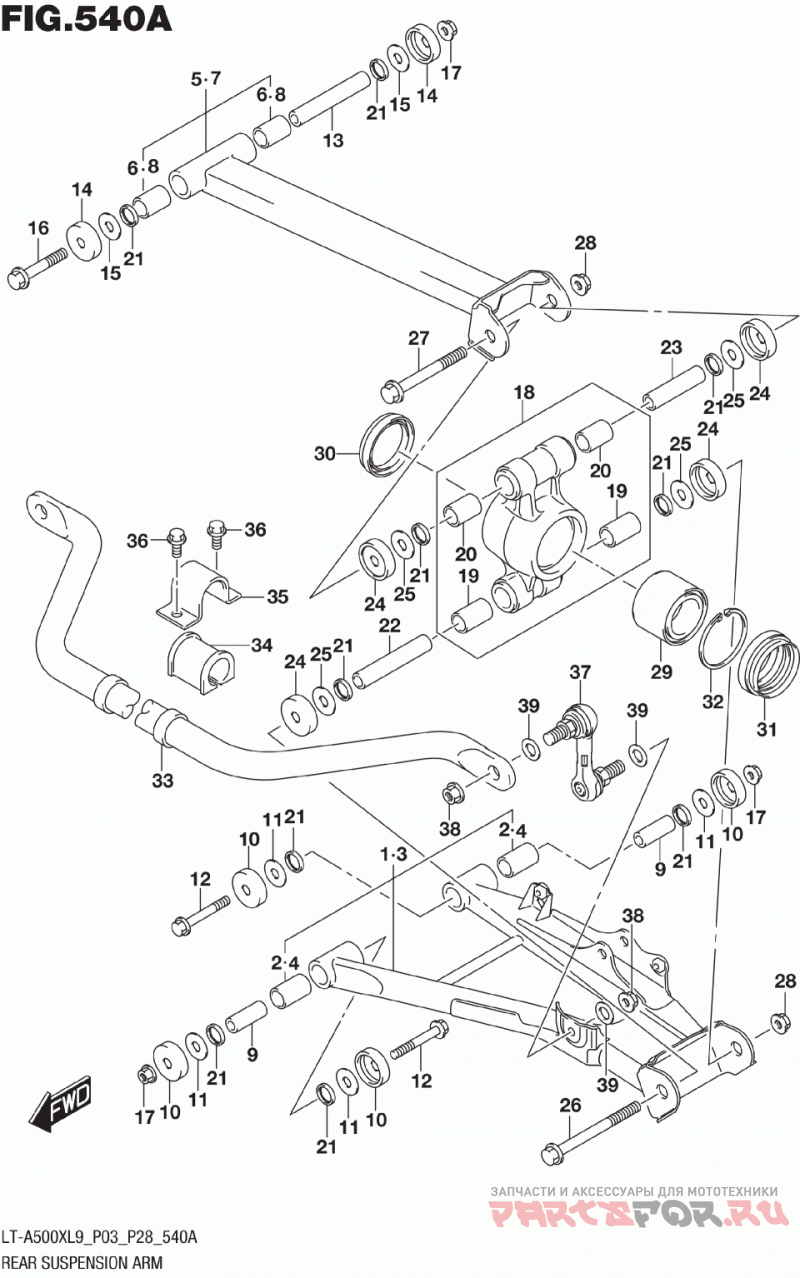

Задняя подвеска

Suzuki LT,A500X,XP

Задняя подвеска

#

oem код

название

цена

1

ARM SET, RR SUSPENSION LOWER, RH

ARM SET, RR SUSPENSION LOWER, RH

10

SEAL, RR SPNSN ARM LOWER

SEAL, RR SPNSN ARM LOWER

11

Шайба

Шайба

12

BOLT (10X70)

BOLT (10X70)

13

SPACER, RR SPNSN ARM UPPER

SPACER, RR SPNSN ARM UPPER

14

SEAL, RR SPNSN ARM UPPER

SEAL, RR SPNSN ARM UPPER

15

Шайба

Шайба

16

BOLT (10X120)

BOLT (10X120)

17

Гайка

Гайка

18

KNUCKLE SET, RR SUSPENSION

KNUCKLE SET, RR SUSPENSION

19

BUSH, RR KNUCKLE

BUSH, RR KNUCKLE

2

BUSH, RR SPNSN ARM LOWER

BUSH, RR SPNSN ARM LOWER

20

BUSH, RR KNUCKLE UPPER

BUSH, RR KNUCKLE UPPER

21

SEAL, RR KNUCKLE INNER

SEAL, RR KNUCKLE INNER

22

SPACER, RR KNUCKLE LOWER

SPACER, RR KNUCKLE LOWER

23

SPACER, RR KNUCKLE UPPER

SPACER, RR KNUCKLE UPPER

24

SEAL, RR KNUCKLE DUST

SEAL, RR KNUCKLE DUST

25

Шайба

Шайба

26

BOLT (10X120)

BOLT (10X120)

27

BOLT (10X96)

BOLT (10X96)

28

Гайка

Гайка

29

BEARING, RR HUB

BEARING, RR HUB

3

ARM SET, RR SUSPENSION LOWER, LH

ARM SET, RR SUSPENSION LOWER, LH

30

SEAL, REAR HUB INNER DUST

SEAL, REAR HUB INNER DUST

31

SEAL, REAR HUB OUTER DUST

SEAL, REAR HUB OUTER DUST

32

Пружинное стопорное кольцо

Пружинное стопорное кольцо

33

BAR, RR STABILIZER

BAR, RR STABILIZER

34

BUSH, RR STABILIZER

BUSH, RR STABILIZER

35

PLATE, RR STABILIZER

PLATE, RR STABILIZER

36

09103-08283-A05

BOLT (8X16)

BOLT (8X16)

37

JOINT, RR STABILIZER

JOINT, RR STABILIZER

38

Гайка

Гайка

39

WASHER (10.5X22X2.3)

WASHER (10.5X22X2.3)

4

BUSH, RR SPNSN ARM LOWER

BUSH, RR SPNSN ARM LOWER

5

ARM SET, RR SUSPENSION UPPER, RH

ARM SET, RR SUSPENSION UPPER, RH

6

BUSH, RR SPNSN ARM UPPER

BUSH, RR SPNSN ARM UPPER

7

ARM SET, RR SUSPENSION UPPER, LH

ARM SET, RR SUSPENSION UPPER, LH

8

BUSH, RR SPNSN ARM UPPER

BUSH, RR SPNSN ARM UPPER

9

SPACER, RR SPNSN ARM LOWER

SPACER, RR SPNSN ARM LOWER
