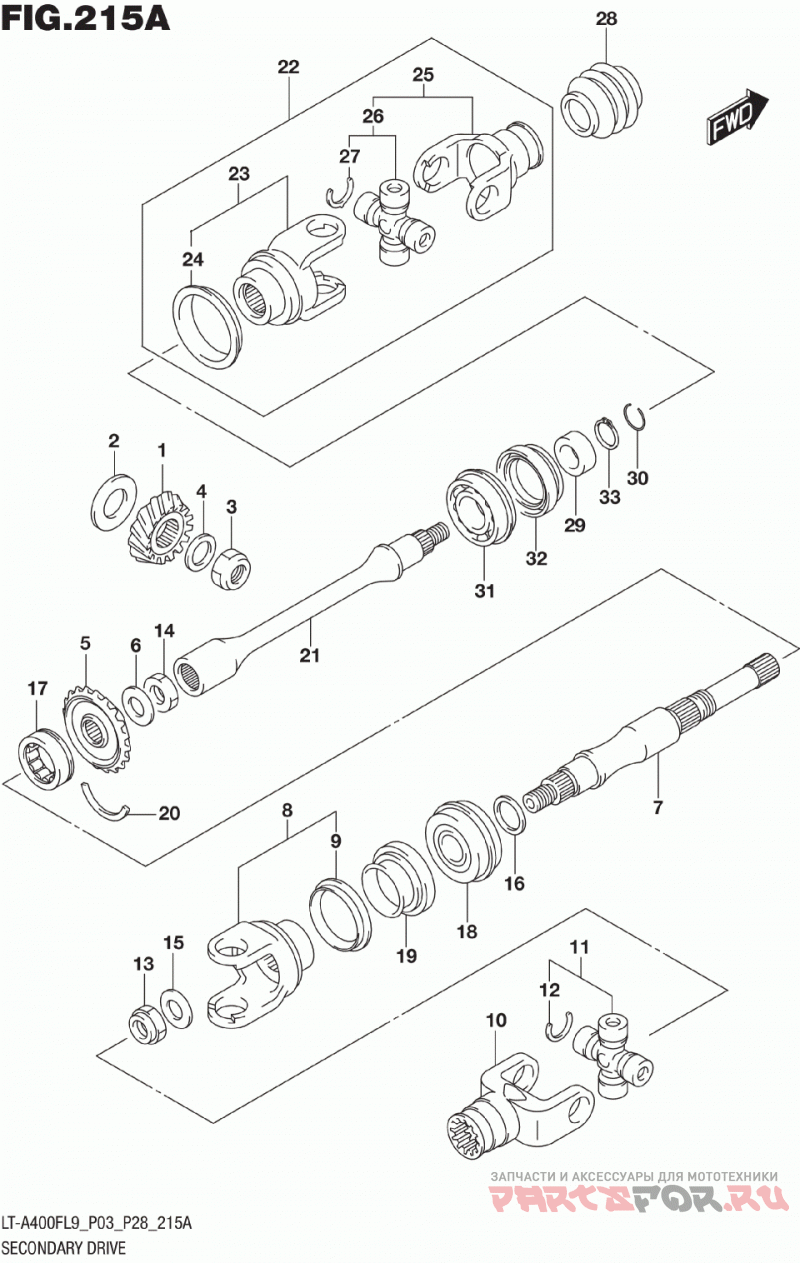

GEAR, SEC DRIVE BEVEL (NT:17)

OKE, PROP SHAFT JOINT

JOINT SET, UNIVERSAL

Пружинное стопорное кольцо

Гайка

Гайка

WASHER (16X30X3)

SHIM, SEC DRIVEN (T:0.55/0.58/0.60/0.63/0.65/0.68 /0.70/0.73/0.75/0.78/0.80/0.83 /0.85/0.88/0.90/0.93/0.95/0.98 /1.00/1.03/1.05/1.08/1.10/1.13 /1.15/1.18/1.20/1.23/1.25/1.28 /1.30/1.33/1.35/1.38/

BEARING (30X50X17)

BEARING (25X52X20.6)

OIL SEAL (34X52X9)

SHIM SET, SEC DRIVE BEVEL GEA (T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.

C RING

SHAFT, SEC DRIVEN OUTPUT FR

YOKE ASSY, UNIVERSAL JOINT

YOKE, FRONT DRIVE OUTPUT

PLATE, OUTPUT YOKE

YOKE, PROP SHAFT FRONT

JOINT SET, UNIVERSAL

Пружинное стопорное кольцо

BOOT, PROPELLER SHAfT

COLLAR, FRONT DRIVE OUTPUT

Гайка

Пружинное стопорное кольцо

Подшипник (25x52x15)

OIL SEAL (34X52X9)

Пружинное стопорное кольцо

SHIM (20X32X1)

GEAR, SEC DRIVEN BEVEL (NT:21

Шайба

SHAFT, SEC DRIVEN OUTPUT REAR

YOKE, REAR DRIVE OUTPUT

PLATE, OUTPUT
