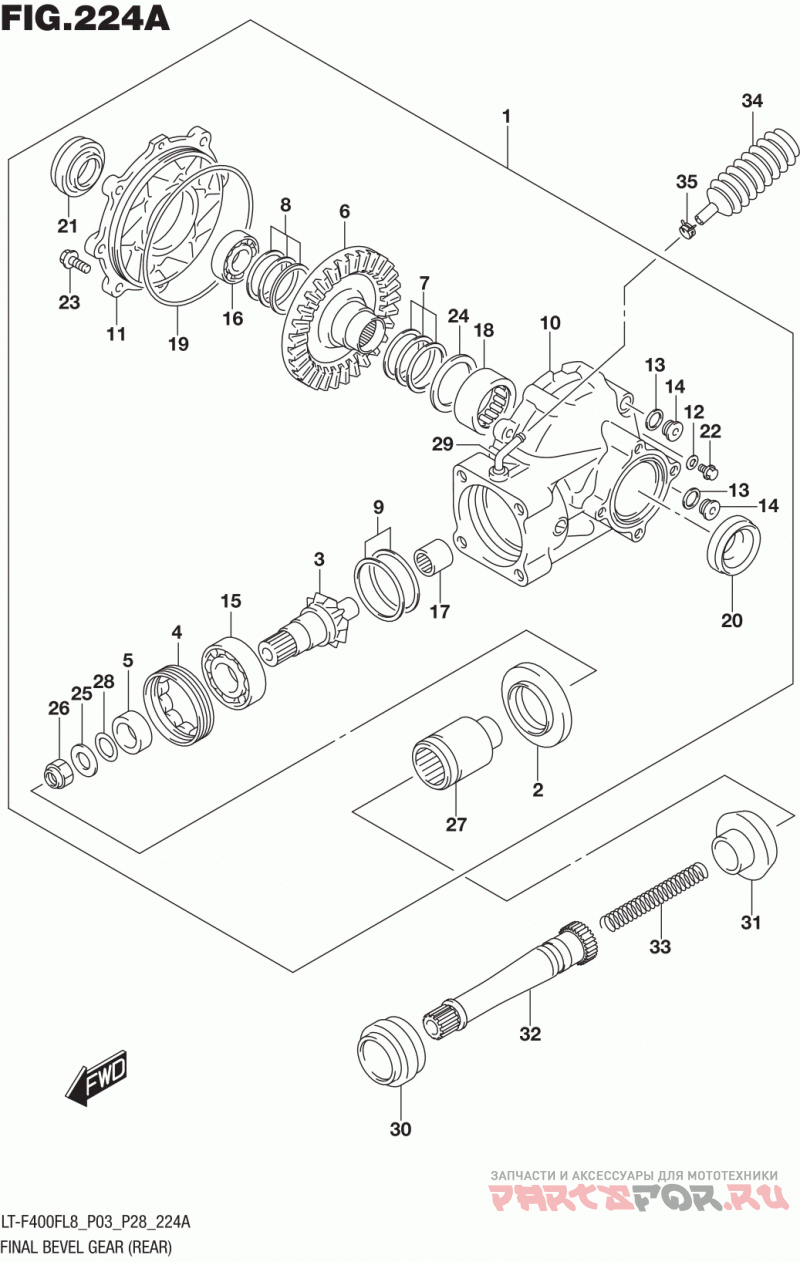

Редуктор задний

Suzuki LT,F400F

Suzuki
#oem кодцена
10
27450-27HM0
.CASE, RR FINAL GR
11
27461-38FM0
.CASE, RR FINAL DRIVEN, RH
12
09168-06018
.GASKET (6.2X13X1.2)
13
09168-16002
.GASKET (16X22X2)
14
09248-16012
.PLUG (16X8)
15
27405-38FN0
.BEARING, FINAL DRIVEN GEAR
16
27405-38FP0
.BEARING, FINAL DRIVEN, RH
17
27405-38FR0
.BEARING, FINAL DRIVEN PILOT
18
27405-38FS0
.BEARING, FINAL DRIVEN, LH
19
27405-38FT0
.O RING, BEARING CASE, RH
20
09283-38009
.OIL SEAL (38X54X6)
21
09283-42011
.OIL SEAL (42X62X7)
22
27401-38FM0
.BOLT, OIL CHECK
23
27401-38FN0
.BOLT, RR FINAL GR
24
27407-38FN0
.WASHER, FINAL DRIVEN, LH
25
09160-16026
.WASHER (16X30X3)
26
09159-16003
Гайка
27
27171-27HM0
.COUPLING, RR FINAL
28
27405-27HM0
.O RING, COUPLING
29
09364-08009
.UNION
30
27153-27H00
BOOT, RR PROP SHAFT
31
27153-27H20
BOOT, JOINT SHAFT
32
27155-27H10
SHAFT, RR PROP
33
27192-31G10
SPRING, REAR PROP SHAFT
34
27491-38F00
CASE, BREATHER
35
09401-08411
Зажим
1
27410-38F50
CASE ASSY, REAR FINAL
2
27156-27H00
.SEAL, FINAL DRIVEN BRG OIL
3
27311-27HM0
.GEAR, FINAL DRIVEN
4
27312-38F00
.STOPPER, FINAL DRIVEN BEARIN
5
27316-38FM0
.SPACER, REAR FINAL DRIVEN
6
27321-27HM0
.GEAR, FINAL DRIVEN
7
27326-09810
.SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
8
27326-18810
.SHIM SET, FINAL DRIVEN GEAR (T:0.30/0.35/0.40/0.50/0.60)
9
27445-24810
.SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)
