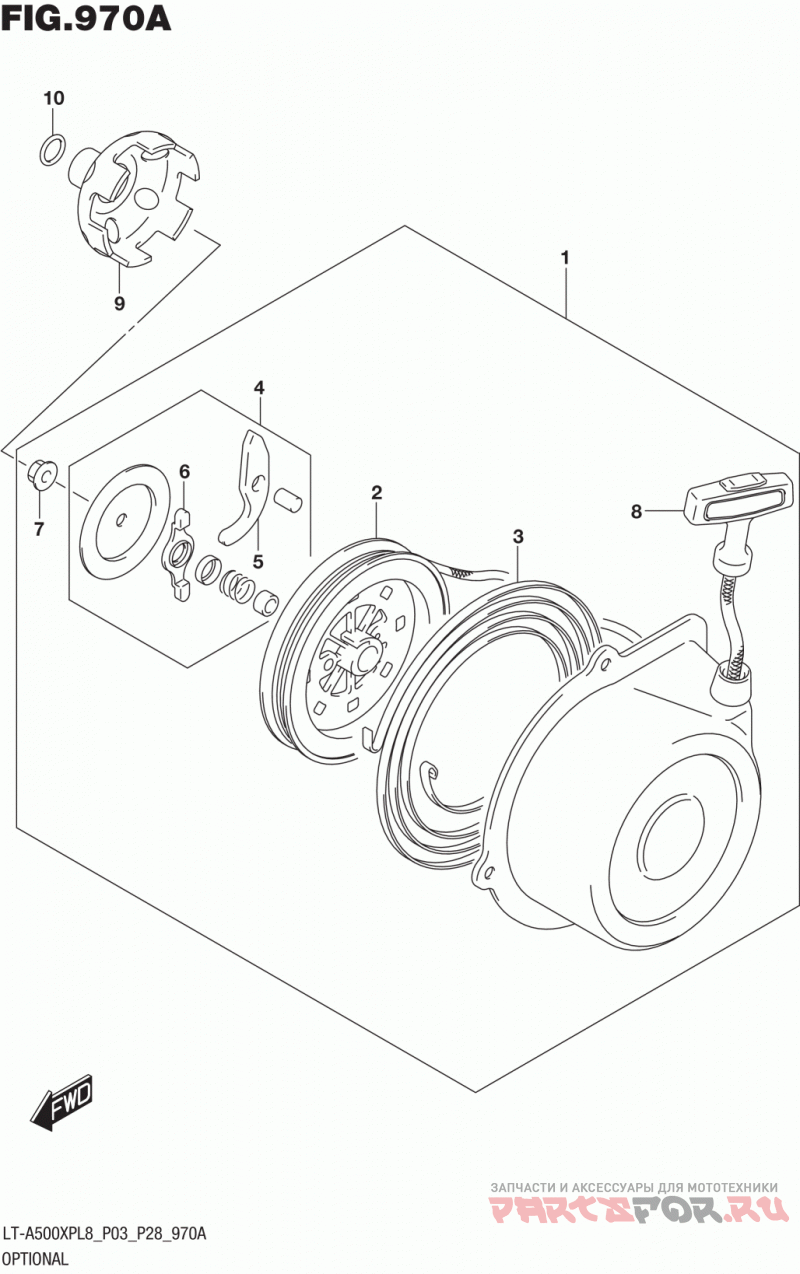

Optional (recoil starter)
Suzuki LT,A500XP
| # | oem код | название | цена |
|---|---|---|---|
10 | 09280-12009 O RING (D:1.9,ID:12.5) | O RING (D:1.9,ID:12.5) | |
1 | 18100-24503 STARTER ASSY, RECOIL | STARTER ASSY, RECOIL | |
2 | 18120-24500 .REEL | .REEL | |
3 | 18142-24400 .SPRING, SPIRAL | .SPRING, SPIRAL | |
4 | 18130-24400 .RATCHET SET | .RATCHET SET | |
5 | 18131-24411 ..RATCHET | ..RATCHET | |
6 | 18132-24400 ..GUIDE, RATCHET | ..GUIDE, RATCHET | |
7 | 08316-1006A Гайка | Гайка | |
8 | 18200-24501 .ROPE ASSY | .ROPE ASSY | |
9 | 18410-09F02 CUP, STARTER | CUP, STARTER |
