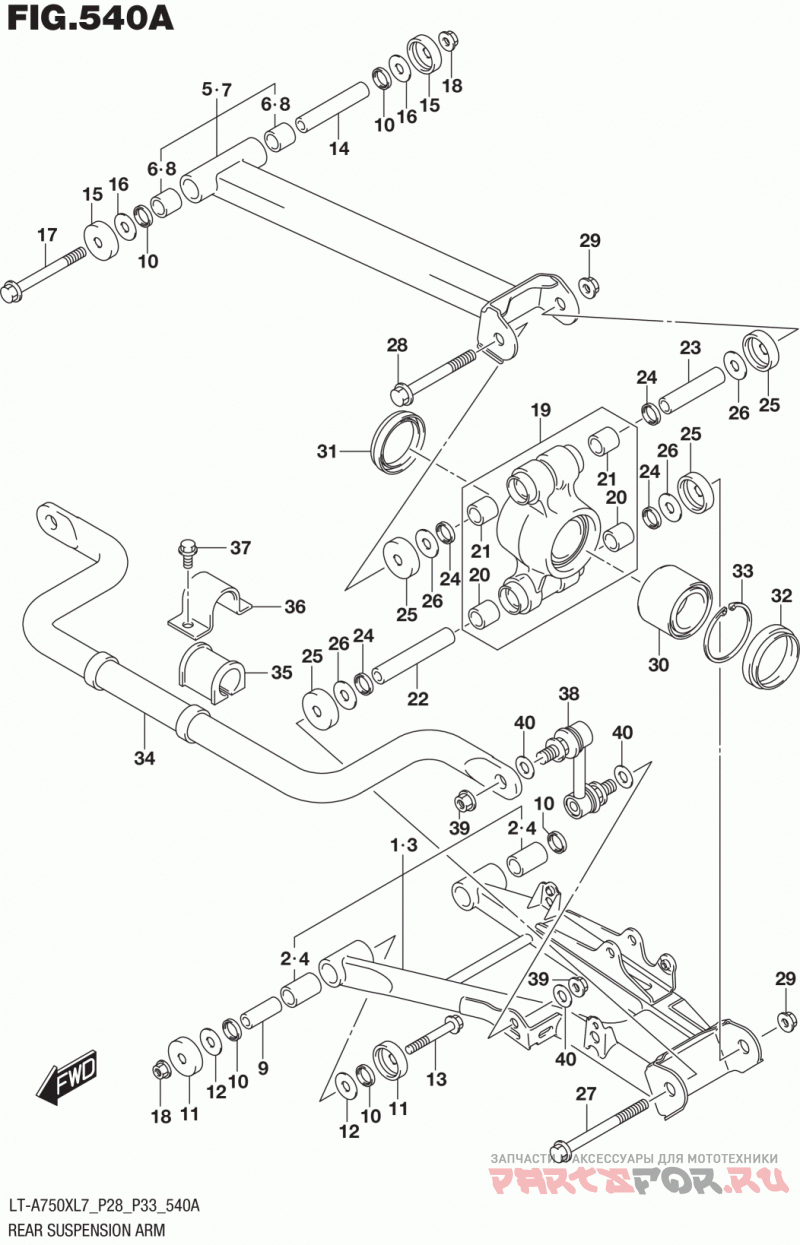

Задняя подвеска

Suzuki LT,A750X,XC

Suzuki
#oem кодцена
10
52454-45G00
SEAL, RR SPNSN ARM INNER DUST
11
51255-18900
SEAL, RR SPNSN ARM LOWER DUST
12
08211-10281
Шайба
13
09103-10392
BOLT (10X70)
14
61554-31G00
SPACER, RR SPNSN ARM UPPER
15
51255-31G00
SEAL, RR SPNSN ARM UPPER DUST
16
08211-10281
Шайба
17
09103-10388
BOLT (10X120)
18
09159-10115
Гайка
19
61600-31830
KNUCKLE SET, RR SUSPENSION
20
51236-31G00
.BUSH, SUSPENSION ARM PIVOT
21
61551-31G10
.BUSH, RR KNUCKLE UPPER
22
61554-31G00
SPACER, RR KNUCKLE LOWER
23
61553-31G10
SPACER, RR KNUCKLE UPPER
24
52454-45G00
SEAL, RR KNUCKLE INNER DUST
25
51255-18900
SEAL, RR KNUCKLE DUST
26
08211-10281
Шайба
27
09103-10388
BOLT (10X120)
28
09103-10387
BOLT (10X96)
29
09159-10115
Гайка
30
43440-58J00
BEARING, RR HUB
31
61615-31G00
SEAL, REAR HUB INNER DUST
32
61616-31G00
SEAL, REAR HUB OUTER DUST
33
08331-4162A
Пружинное стопорное кольцо
34
61651-31G10
BAR, RR STABILIZER
35
61652-31G20
BUSH, RR STABILIZER
36
42415-66D00
PLATE, RR STABILIZER
37
09103-08283-A05
BOLT (8X16)
38
61660-31G20
JOINT, RR STABILIZER
39
09159-10223
Гайка
40
09160-10039
WASHER (10.5X22X2.3)
1
61510-31821
ARM SET, RR SUSPENSION LOW RH
2
51236-31G00
.BUSH, RR SPNSN ARM LOWER
3
61520-31821
ARM SET, RR SUSPENSION LOW LH
4
51236-31G00
.BUSH, RR SPNSN ARM LOWER
5
61530-31830
ARM SET, RR SUSPENSION UP RH
6
51236-31G00
.BUSH, RR SPNSN ARM UPPER
7
61540-31830
ARM SET, RR SUSPENSION UP LH
8
51236-31G00
.BUSH, RR SPNSN ARM UPPER
9
61552-31G10
SPACER, RR SPNSN ARM LOWER
