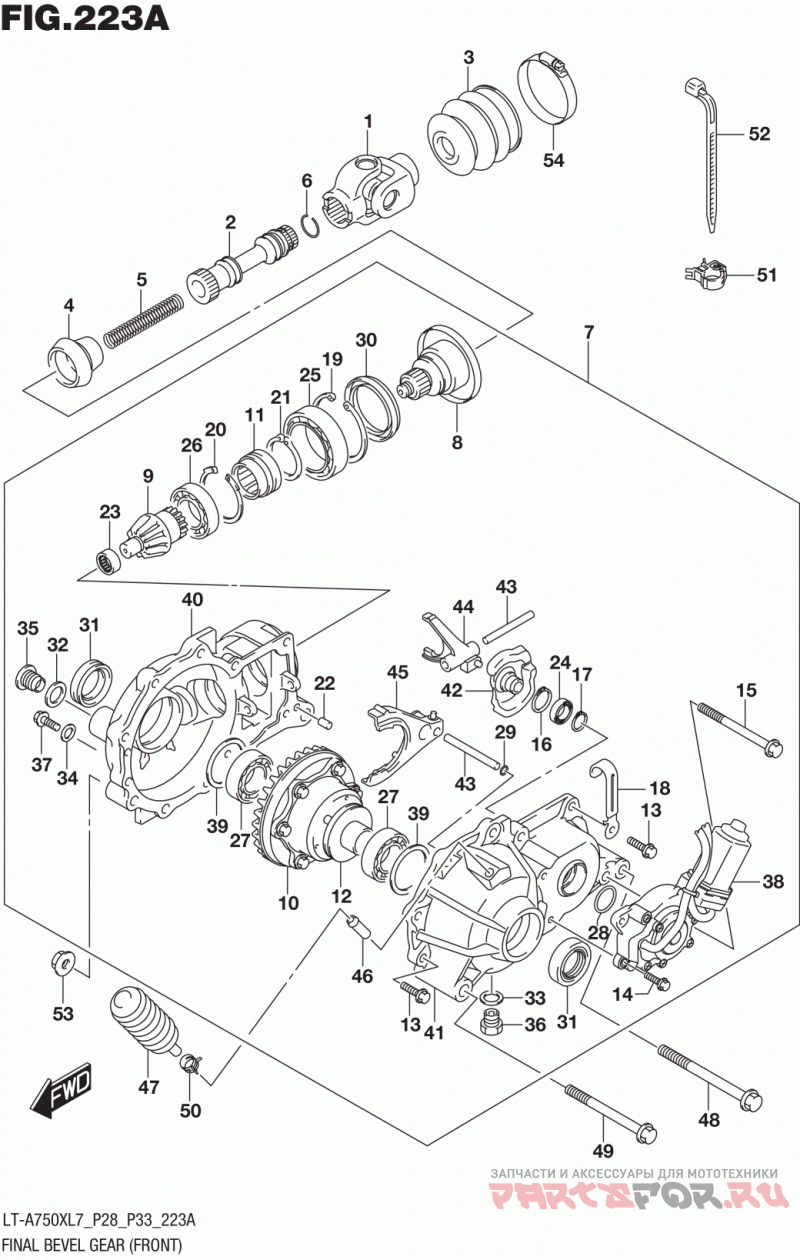

Редуктор передний

Suzuki LT,A750X,XC

Suzuki
#oem кодцена
11
27371-31GA0
.SLEEVE
12
27381-31GA0
.PIN, SLEEVE DIFF LOCK
13
27401-38FA1
.BOLT 8X25
14
27401-31GB0
.FLANGE BOLT, HEX HEAD
15
27401-31GC0
.FLANGE BOLT, HEX HEAD
16
27403-31GA0
.SNAP RING
17
27403-31GB0
.SNAP RING
18
27403-31GC0
.SNAP RING
19
27403-38FA0
.SNAP RING
20
27403-38FB0
.SNAP RING
21
27403-38FC0
.SNAP RING
22
27404-31GA0
Палец
23
27405-31GA0
.BEARING, PINION
24
27405-31GB0
.BEARING
25
27405-38FA0
.BEARING
26
27405-38FB0
.BEARING
27
27405-38FD0
.BEARING
28
27406-31GE0
Кольцо
29
27406-31GF0
Кольцо
30
27406-38FB0
.OIL SEAL
31
27406-38FD0
.OIL SEAL
32
27407-31GA0
Шайба
33
27407-38FB0
Шайба
34
27407-38FD0
Шайба
35
27409-38FA0
.PLUG
36
27409-38FB0
.PLUG
37
27409-38FC0
.PLUG, LEVEL
38
27421-31GA0
.DVC ASSY
39
27445-38FA0
.SHIM SET
40
27451-31GA0
.HOUSING, FINAL DRIVE FR
41
27461-31GA0
.COVER, FINAL DRIVE FR
42
27911-31GA0
.CAM SHIFT
43
27921-31GA0
.ROD SHIFT
44
27941-31GA0
.FORK SHIFT, 2WD & 4WD
45
27951-31GA0
.FORK SHIFT, DIFFLOCK
46
09364-08003
.UNION
47
27491-38F00
CASE, BREATHER
48
09103-10061
BOLT (10X90)
49
09103-10148
BOLT (10X110)
50
09401-08411
Зажим
51
09407-14403
CLAMP (L:125)
52
09407-14403
CLAMP (L:125)
53
09159-10115
Гайка
54
09402-80501
Зажим
1
27100-31G00
YOKE, FR PROP SHAFT
2
27151-31G30
Вал
3
27153-31G21
BOOT, FRONT PROP SHAFT YOKE
4
27153-31G30
BOOT, FRONT PROP SHAFT
5
27191-31G00
SPRING, FR PROPELLER SHAFT
6
09381-20004
Пружинное стопорное кольцо
7
27400-11H10
CASE ASSY, FR DIFFERENTIAL
