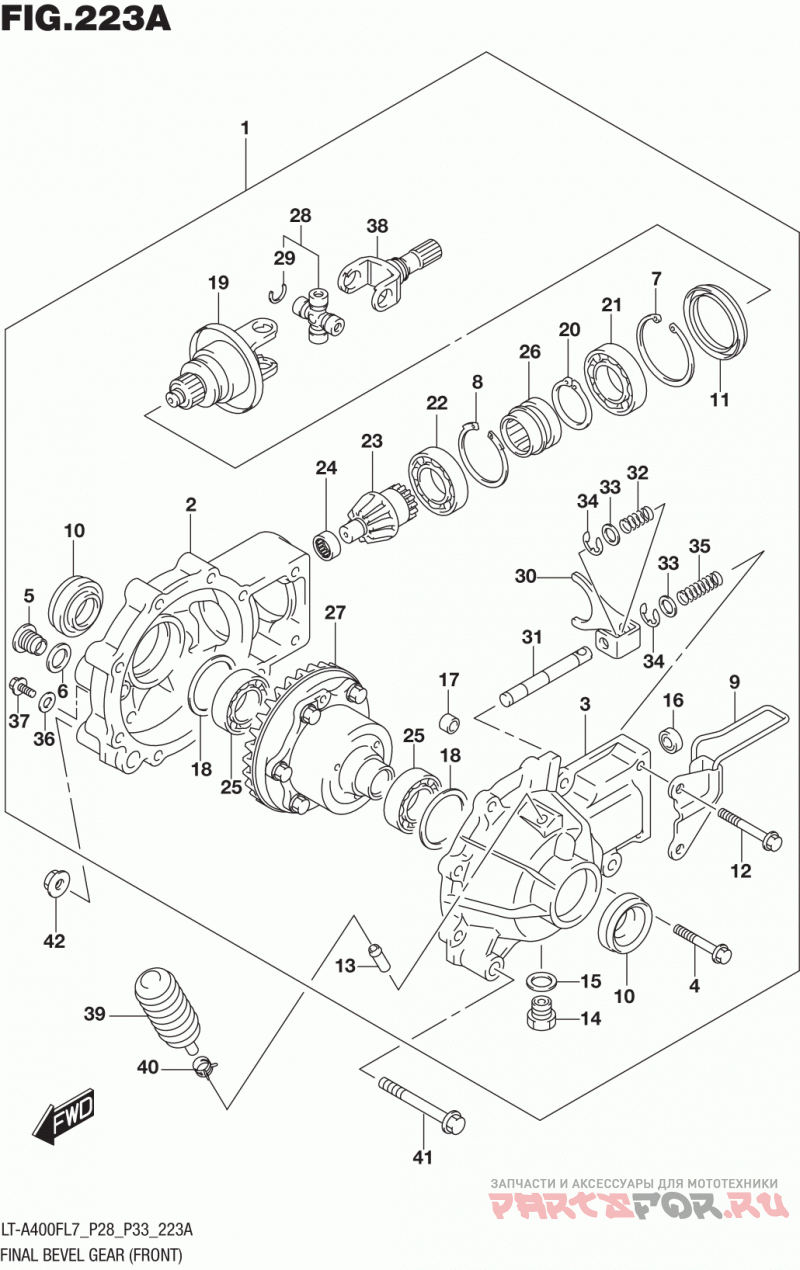

Final bevel gear (front) (lt-a400fl7 p28) для квадроциклов Suzuki LT,A400F,C,Z (2017)

Final bevel gear (front) (lt-a400fl7 p28)

Suzuki LT,A400F,C,Z

Final bevel gear (front) (lt-a400fl7 p28)

oem код

название

цена

.OIL SEAL

.OIL SEAL

.BOLT (8X50)

.UNION

.PLUG

Шайба

.OIL SEAL

Палец

.SHIM SET (T:0.70/0.75/0.80/0.85/0.90/0.95/ 1.00/1.05/1.10/1.15/1.20/1.25/ 1.30/1.35/1.40/1.45)

.YOKE ASSY

.SNAP RING

.BEARING

.BEARING

.BEARING

.BEARING

.SLEEVE

.GEAR ASSY

.JOINT SET

..CIRCLIP

.FORK, SHIFT

.ROD, SHIFT

.SPRING, SHIFT

Шайба

.E RING

.SPRING, RETURN

Шайба

.PLUG

.YOKE, SHAFT JOINT

CASE, BREATHER

Зажим

BOLT (10X110)

Гайка

CASE ASSY, FR DIFFERENTIAL

27451-38FB1

.HOUSING, FINAL DRIVE FR

27461-38FA1

.COVER, FINAL DRIVE FR

.BOLT (8X25)

.PLUG

Шайба

.RING SNAP

.RING SNAP

.BRACKET ASSY, SHIFT
