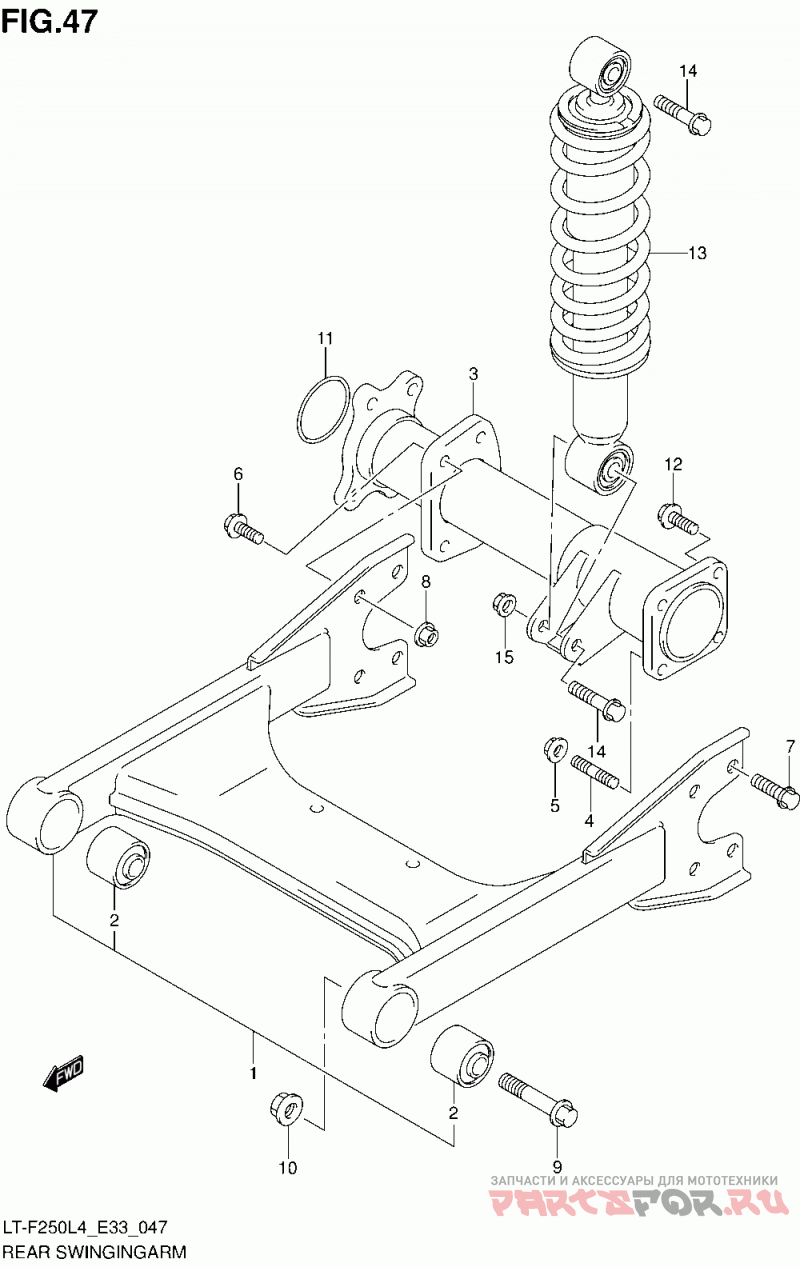

Rear swingingarm
Suzuki LT F250
| # | oem код | название | цена |
|---|---|---|---|
1 | 61100-05850 Swingingarm Set | Swingingarm Set | |
2 | 61230-38F00 Bush, Suspension | Bush, Suspension | |
3 | 61300-05G20 Housing, Rr Axle | Housing, Rr Axle | |
5 | 08316-1010B Гайка | Гайка | |
6 | 09103-10216 Bolt, 10x20
(rh) | Bolt, 10x20
(rh) | |
8 | 09159-10115 Гайка | Гайка | |
9 | 09103-12042 Bolt 12x57 | Bolt 12x57 | |
10 | 09159-12054 Nut, Eng Mtg | Nut, Eng Mtg | |
11 | 09280-70005 O Ring Driven B | O Ring Driven B | |
13 | 62100-05G10-019 Absorber Assy, R | Absorber Assy, R | |
14 | 09103-10064 Болт | Болт | |
15 | 09159-10115 Гайка | Гайка |
