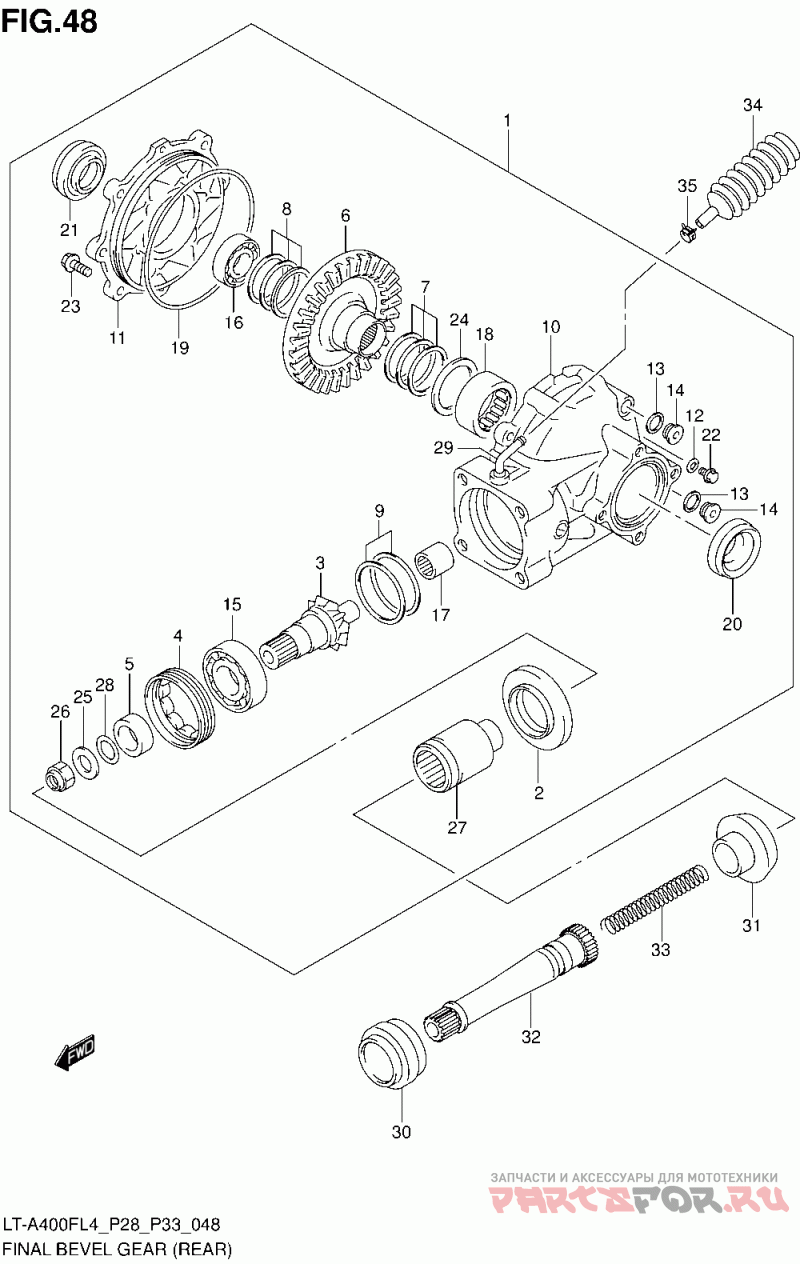

Редуктор задний для квадроциклов Suzuki LT A400F,Z (2014)

Москва и регионы России

Редуктор задний

Suzuki LT A400F,Z

Редуктор задний

#

oem код

название

цена

1

Case Assy, Rr Fi

Case Assy, Rr Fi

2

Seal, Final Driv

Seal, Final Driv

3

Gear, Fnl Drvn B

Gear, Fnl Drvn B

4

Stopper, Final D

Stopper, Final D

5

Spacer, Rear Fin

Spacer, Rear Fin

6

Gear, Fnl Drvn B

Gear, Fnl Drvn B

7

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

8

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

9

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

Shim Set, Final (t:0.30/0.35/0.40/0.50/0.60)

10

Case, Rr Final D

Case, Rr Final D

11

Case, Rear Final

Case, Rear Final

12

Gasket Oil Gall

Gasket Oil Gall

13

Gasket 16x22x2

Gasket 16x22x2

14

Plug, 16x8

Plug, 16x8

15

Brg, Fnl Drv, 28x

Brg, Fnl Drv, 28x

16

Bearing, Final D

Bearing, Final D

17

Bearing, Final D

Bearing, Final D

18

Brg, Fnl Drv, 40x

Brg, Fnl Drv, 40x

19

O Ring, Bearing

O Ring, Bearing

20

Seal, Oil 38x 5

Seal, Oil 38x 5

21

Dust Seal Rr Ax

Dust Seal Rr Ax

22

Bolt, Oil Check

Bolt, Oil Check

23

Bolt, Rear Final

Bolt, Rear Final

24

Washer, Final Dr

Washer, Final Dr

25

Washer Sec Driv

Washer Sec Driv

26

Гайка

Гайка

27

Coupling, Rr Fin

Coupling, Rr Fin

28

O-ring, Coupling

O-ring, Coupling

29

Соединение

Соединение

30

Boot, Rear Prop

Boot, Rear Prop

31

Boot, Joint Shaf

Boot, Joint Shaf

32

Shaft, Rear Prop

Shaft, Rear Prop

33

Spring, Rear Pro

Spring, Rear Pro

34

Case, Breather

Case, Breather

35

Зажим

Зажим
