Редуктор задний для квадроциклов Suzuki LT-A500X,Z KingQuad 500AXi 4x4 Auto (2012)

Москва и регионы России

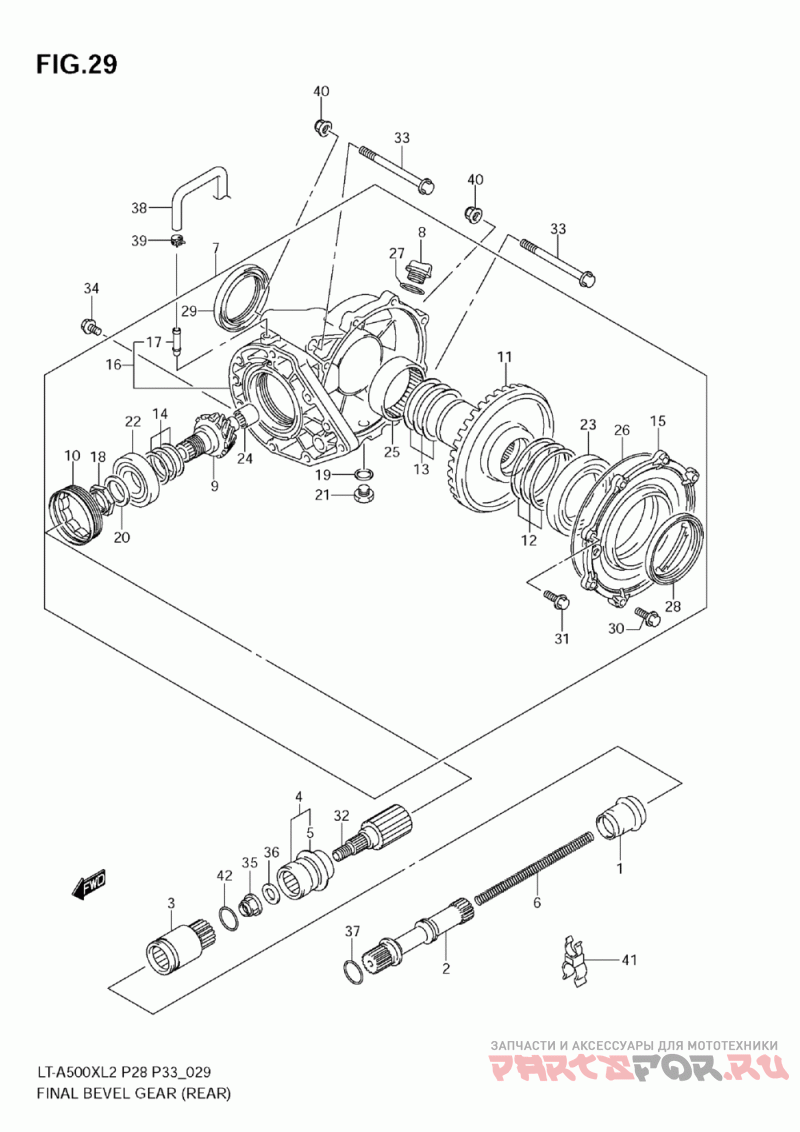

Редуктор задний

Suzuki LT-A500X,Z KingQuad 500AXi 4x4 Auto

Редуктор задний

#

oem код

название

цена

1

Boot, Joint Shaf

Boot, Joint Shaf

2

Shaft, Rear Prop

Shaft, Rear Prop

3

Joint, Rear Prop

Joint, Rear Prop

4

Coupling, Rr Pro

Coupling, Rr Pro

5

Plate, Out Oil

Plate, Out Oil

6

Spring, Rear Pro

Spring, Rear Pro

7

Case Assy, Rear

Case Assy, Rear

8

09259-20008-XC0

Заглушка

Заглушка

9

Gear, Rr Final D

Gear, Rr Final D

10

Stopper, Final D

Stopper, Final D

11

Gear, Rr Final D

Gear, Rr Final D

12

Shim Set (t:0.30/0.35/0.40 0.50/0.60 )

Shim Set (t:0.30/0.35/0.40 0.50/0.60 )

13

Shim Set (t:0.30/0.35/0.40 0.50/0.60 )

Shim Set (t:0.30/0.35/0.40 0.50/0.60 )

14

Shim Set, Final (t:0.30/0.35/0.40 0.50/0.60 )

Shim Set, Final (t:0.30/0.35/0.40 0.50/0.60 )

17

Соединение

Соединение

18

Гайка

Гайка

19

Прокладка

Прокладка

20

Шайба

Шайба

21

Plug Engine Oil

Plug Engine Oil

22

B1 28x68x18 Brn

B1 28x68x18 Brn

23

B1 65x100x11 Be

B1 65x100x11 Be

24

Rc 20x34x18 Brg

Rc 20x34x18 Brg

25

Bearing, 50x67x

Bearing, 50x67x

26

Уплотнительное кольцо

Уплотнительное кольцо

27

O-ring, Oil Fil

O-ring, Oil Fil

28

Seal, Final Driv

Seal, Final Driv

29

Seal, Final Driv

Seal, Final Driv

30

Bolt (8x35)

Bolt (8x35)

32

Shaft, Rr Final

Shaft, Rr Final

33

Bolt 10 X 110

Bolt 10 X 110

34

Bolt, 10x30

Bolt, 10x30

35

Nut Finl Drive

Nut Finl Drive

36

Washer, Rr Prp

Washer, Rr Prp

37

Кольцо

Кольцо

38

Трубка,резина

Трубка,резина

39

Зажим

Зажим

40

Гайка

Гайка

41

Clamp, Wiring Ha

Clamp, Wiring Ha

42

O Ring D:3.1 Id

O Ring D:3.1 Id
