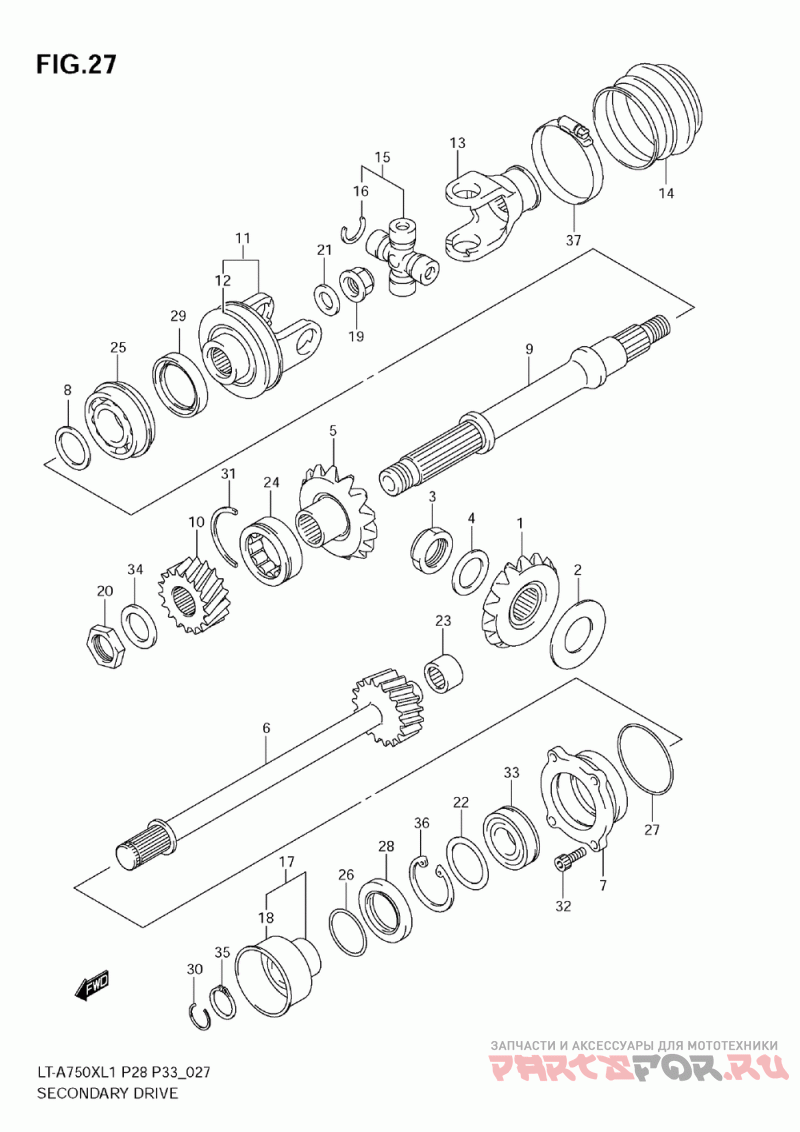

Secondary drive

Suzuki LT-A750X,Z KingQuad 750AXi

Suzuki
#oem кодцена
1
24911-31G00
Деталь Gear, Sec Drive
2
24935-03811
Деталь Shim Set, Sec Dr (t:0.25/0.30/0.35/0.55 1.28/1.30 )
3
09140-20012
Деталь Nut 20mm (sec Drive Output)
4
09181-20223
Деталь Washer (sec Drive Output Bevel )
5
24921-31G00
Деталь Gear, Sec Driven
6
24961-31G20
Деталь Shaft, Sec Drive
7
24965-31G00
Деталь Housing, Fr Outp
8
24945-03811
Деталь Shim Set, Drn B (t:0.55/0.58/0.60/0.63 1.35/1.38/1.40 )
9
24971-31G10
Деталь Shaft, Sec Drive
10
24972-31G20
Деталь Gear, Sec Driven
11
27130-31G10
Деталь Yoke, Rr Drive O
12
27592-31G30
Деталь Flange, Output Y
13
27141-31G00
Деталь Flange, Rear Out
14
27153-31G00
Деталь Boot, Rear Prop
15
27200-73813
Деталь Joint Set, Unive
16
09380-25005
Стопорное кольцо
17
27590-31G00
Деталь Collar, Front Dr
18
27592-31G00
Деталь Plate, Output Oi
19
09159-16003
Деталь Nut (rr Drive Output Yoke)
20
09159-22005
Деталь Nut, Primary Sha (sec Driven Output)
21
09160-16026
Деталь Washer Sec Driv
22
09181-40195
Деталь Shim, T:1.0 (fr Drive Output)
23
09263-25068
Деталь Brg,frt Out,25x (front Output, Rr)
24
09263-30050
Деталь Ndl Brg, 30x50x (sec Driven Gear)
25
09267-25014
Деталь Brg, Rr Otpt, 25x (rear Output)
26
09280-25005
Деталь O-ring, Extensio (fr Drive Output)
27
09280-57002
Деталь O Ring (front Brg Housing)
28
09283-34008
Деталь Oil Seal 34x52x (front Output Shaft)
29
09283-34008
Деталь Oil Seal 34x52x (rear Output Shaft)
30
09381-21002
Деталь Cir Clip Piston (sec Driven Output)
31
09390-50002
Деталь C Ring (sec Driven Gear)
32
07130-0620A
Деталь Bolt, Stator (front Brg Housing)
33
09262-25003
Деталь B1 25x52x15 Bea (front Output, Fr)
34
08211-22365
Деталь Washer (output Shaft Gear)
35
08331-3125A
Деталь Circlip (fr Drive Output)
36
51118-36213
Деталь Fork Snap Ring
37
09402-00512
Зажим
