Frame center cover (model k8/k9) для квадроциклов Suzuki LT-Z50,Z QuadSport Z50 (2009)

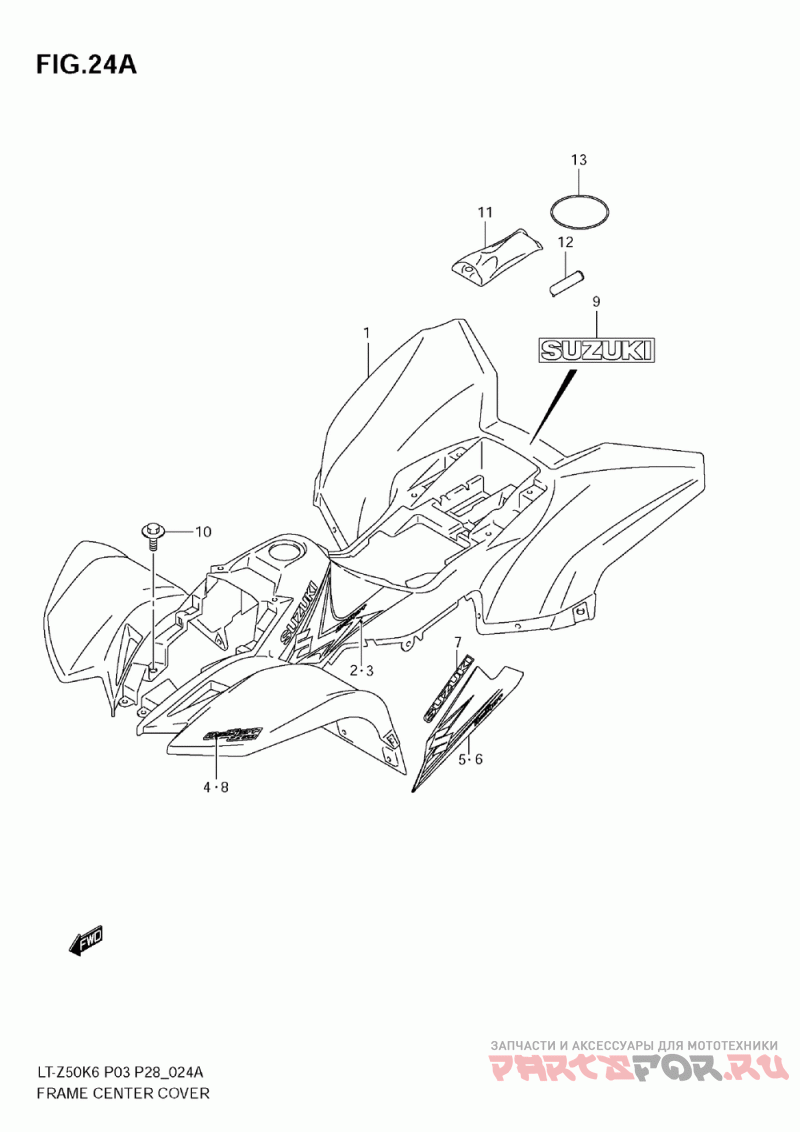

Frame center cover (model k8/k9)

Suzuki LT-Z50,Z QuadSport Z50

oem код

название

цена

1-1

47311-43G00-YU1

Cover, Frame Center (yellow)

1-2

47311-43G00-30H

Cover, Frame Center (white)

2-1

68135-43G40-EMA

Tape, Frame Cove (model K8 For Yu1)

2-2

68135-43G40-ELZ

Tape, Frame Cove (model K8 For 30h)

3-1

68145-43G40-EMA

Tape, Frame Cove (model K8 For Yu1)

3-2

68145-43G40-ELZ

Tape, Frame Cove (model K8 For 30h)

4-1

68131-43G00-DCP

Emblem, Frame Co (model K8 For Yu1)

4-2

68131-43G00-EMB

Emblem, Frame Co (model K8 For 30h)

5-1

68135-43G50-GTE

Tape, Frame Cove (model K9 For 30h)

5-2

68135-43G50-GTF

Tape, Frame Cove (model K9 For Yu1)

6-1

68145-43G50-GTE

Tape, Frame Cove (model K9 For 30h)

6-2

68145-43G50-GTF

Tape, Frame Cove (model K9 For Yu1)

7-1

68131-43G10-8YM

Emblem, "suzuki" (model K9 For 30h)

7-2

68131-43G10-GY8

Emblem, "suzuki" (model K9 For Yu1)

8-1

68131-43G00-FVJ

Emblem, Frame Co (model K9 For 30h)

9-1

68721-09A00-GY8

Emblem (for Yu1)

9-2

Emblem (for 30h)

Bolt, Lower

Tool Assy

Манометр

O Ring ( Refer To Fig.24b(d- 9) For Lt-z50zk9 )

8-2

68131-43G00-DCP

Emblem, Frame Co (model K9 For Yu1)
