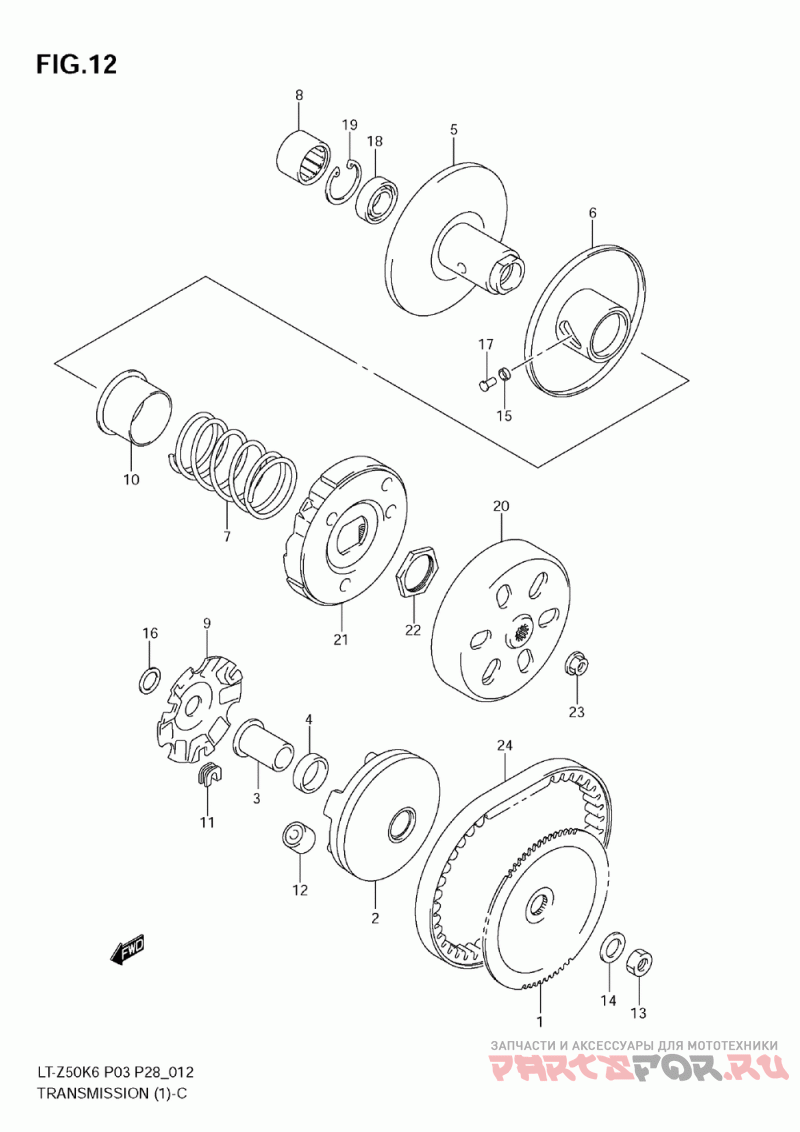

Трансмиссия 1

Suzuki LT-Z50,Z QuadSport Z50

Suzuki
#oem кодцена
1
21111-43E00
Face, Fixed Drive (nt:63)
2
21120-43EA0
Face, Movable Drive
3
21125-43G00
Spacer, Movable Drive
4
21128-43G00
Spacer, Movable Drive Stopper
5
21210-43E00
Face, Fixed Driven
6
21240-22G00
Face, Movable Driven
7
21243-22G00
Spring, Movable Driven
8
09263-17042
Bearing, Fixed Driven, R (17x25x16.7)
9
21431-43E00
Plate, Movable Drive
10
21471-03A11
Sheet, Movable Driven
11
21481-29C40
Damper, Movable Drive Plate
12
21650-43G00
Roller, Movable Drive
13
09140-12039
Nut, Fixed Drive Face
14
09164-12020
Washer, Fixed Drive Face
15
09180-05042
Spacer, Movable Driven Pin (5x8.2x3.5)
16
09181-14139
Washer, Gear Shaft (14x20x1)
17
09201-05006
Pin, Movable Driven
18
09262-12018
Bearing, Fixed Driven, L (12x24x6)
19
08331-4124A
Пружинное стопорное кольцо
20
21220-22G00
Housing, Clutch
21
21501-22G10
Clutch Assy, Shoe
22
09140-28004
Nut, Shoe Clutch
23
08316-1010B
Гайка
24
27601-22G00
V-belt, Drive
