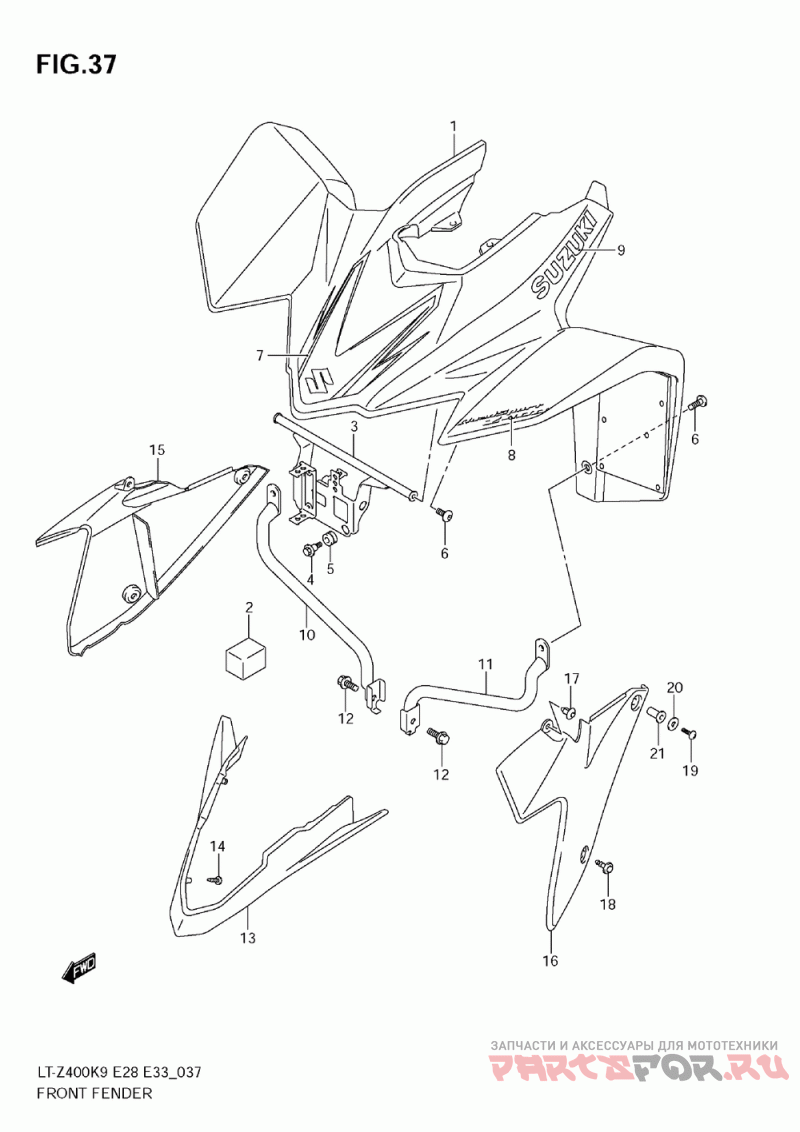

Front fender (lt-z400) для квадроциклов Suzuki LT-Z400,Z QuadSport Z400 (2009)

Front fender (lt-z400)

Suzuki LT-Z400,Z QuadSport Z400

oem код

название

цена

1-1

53111-33H00-30H

Переднее крыло

1-2

Переднее крыло

Cushion, Fuel T

Holder Comp, El

Bolt, 6x19

Подушка

Винт

7-1

68155-33H00-FVG

Tape, Front End (for 30h)

7-2

68155-33H00-FVH

Tape, Front End (for Yu1)

8-1

68151-33H00-FVJ

Emblem, Front F (for 30h)

8-2

68151-33H00-DCP

Emblem, Front F (for Yu1)

9-1

68661-29F00-8YM

Emblem, "suzuki" (for 30h)

9-2

68661-29F00-GY8

Emblem, "suzuki" (for Yu1)

53210-33H00

Bracket Comp, F

53220-33H00

Bracket Comp, F

09103-08431

Bolt, 8x20

13-1

53119-45G00-30H

Cover, Headlamp (white)

13-2

53119-45G00-YU1

Cover, Headlamp (yellow)

03541-0516A

Винт

15-1

53112-33H00-30H

Cover Side, R

15-2

53112-33H00-YU1

Cover, Side, R

16-1

53122-33H00-30H

Cover Side, L

16-2

Cover Side, L

Clip, Tray

Зажим

Винт

Шайба

Nut ( Refer To Fig.37a(g- 8) For Lt-z400z )
