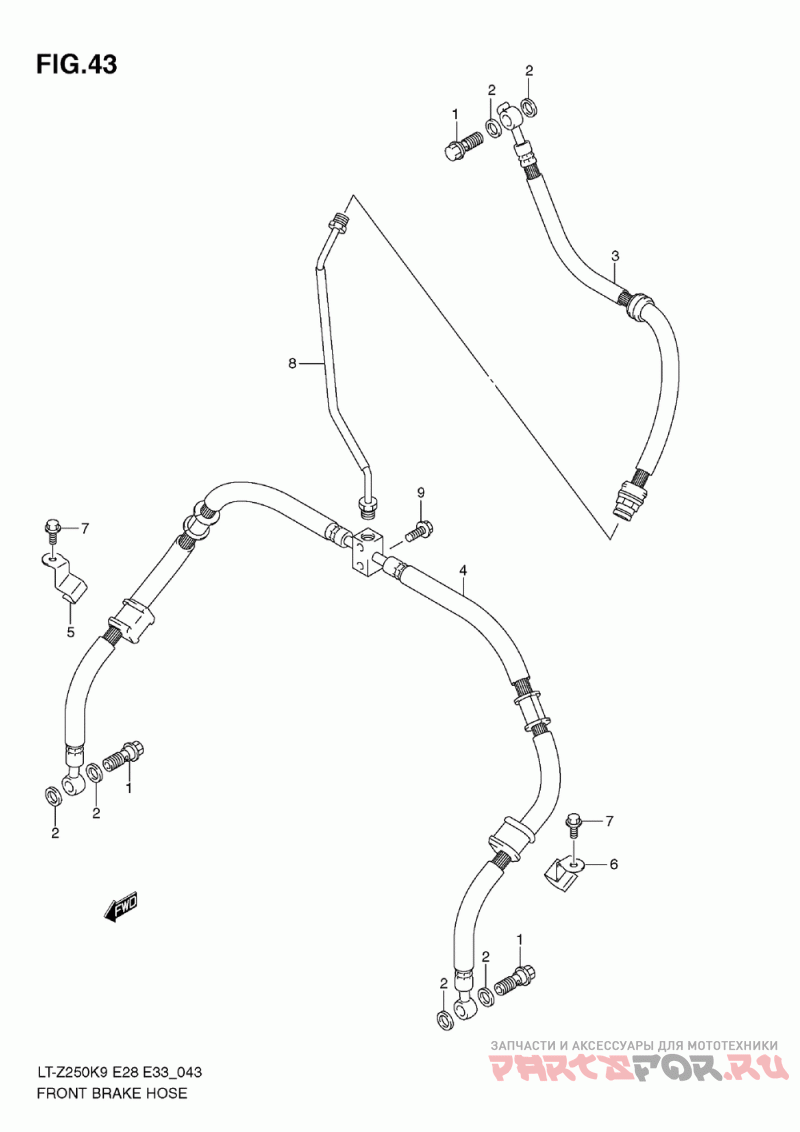

Передние тормозные трубки
Suzuki LT-Z250 QuadSport Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 09360-10062 Bolt, Fr Macter Cylinder | Bolt, Fr Macter Cylinder | |
2 | 09161-10009 Washer (10x15x1.5) | Washer (10x15x1.5) | |
3 | 59480-21G10 Hose Comp, Front | Hose Comp, Front | |
4 | 59240-21G10 Hose Comp, Front | Hose Comp, Front | |
5 | 59261-21G00 Clamp, Hose No.2 Rh | Clamp, Hose No.2 Rh | |
6 | 59271-21G00 Clamp, Hose No.2 Lh | Clamp, Hose No.2 Lh | |
7 | 01547-0610A Болт | Болт | |
8 | 59250-21G00 Pipe, Front Brake | Pipe, Front Brake | |
9 | 01547-0616A Bolt, Rr Brake Pipe Clamp | Bolt, Rr Brake Pipe Clamp |
