Left rear wheel (model k8/k9) для квадроциклов Suzuki LT-R450,Z QuadRacer R450 (2009)

Москва и регионы России

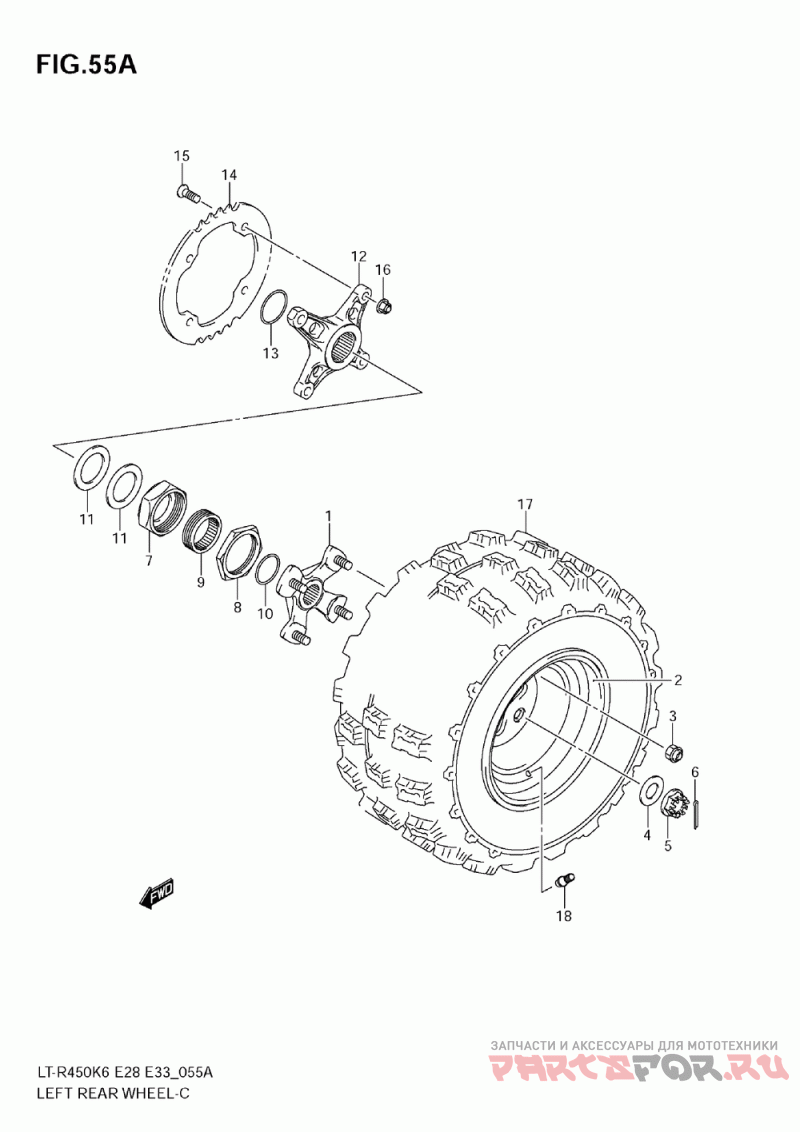

Left rear wheel (model k8/k9)

Suzuki LT-R450,Z QuadRacer R450

Left rear wheel (model k8/k9)

#

oem код

название

цена

1

Hub, Rear Wheel

Hub, Rear Wheel

2-1

Rim, Rear Wheel (8x8.0at) (lt-r450)

Rim, Rear Wheel (8x8.0at) (lt-r450)

2-2

65310-45G10-YPJ

Rim, Rr Wheel(8x (lt-r450z)

Rim, Rr Wheel(8x (lt-r450z)

3

Гайка

Гайка

4

Упругая Шайба

Упругая Шайба

5-1

(model K8)

(model K8)

5-2

Nut (model K9)

Nut (model K9)

6

Шплинт

Шплинт

7

Nut, Rear Axle

Nut, Rear Axle

8

Nut, Rear Axle Rock

Nut, Rear Axle Rock

9

Bolt, Rear Axle Nut

Bolt, Rear Axle Nut

10

Стопорное кольцо

Стопорное кольцо

11

Washer, Rear Axle No.1

Washer, Rear Axle No.1

12

Flange, Rear Spr

Flange, Rear Spr

13

Seal, Rr Sprocket Mtg Dust

Seal, Rr Sprocket Mtg Dust

14

Sprocket, Rear

Sprocket, Rear

15

Винт

Винт

16

Гайка

Гайка

17

Tire Comp, Rear

Tire Comp, Rear

18

Valve Assy, Wheel Rim (tr412)

Valve Assy, Wheel Rim (tr412)
