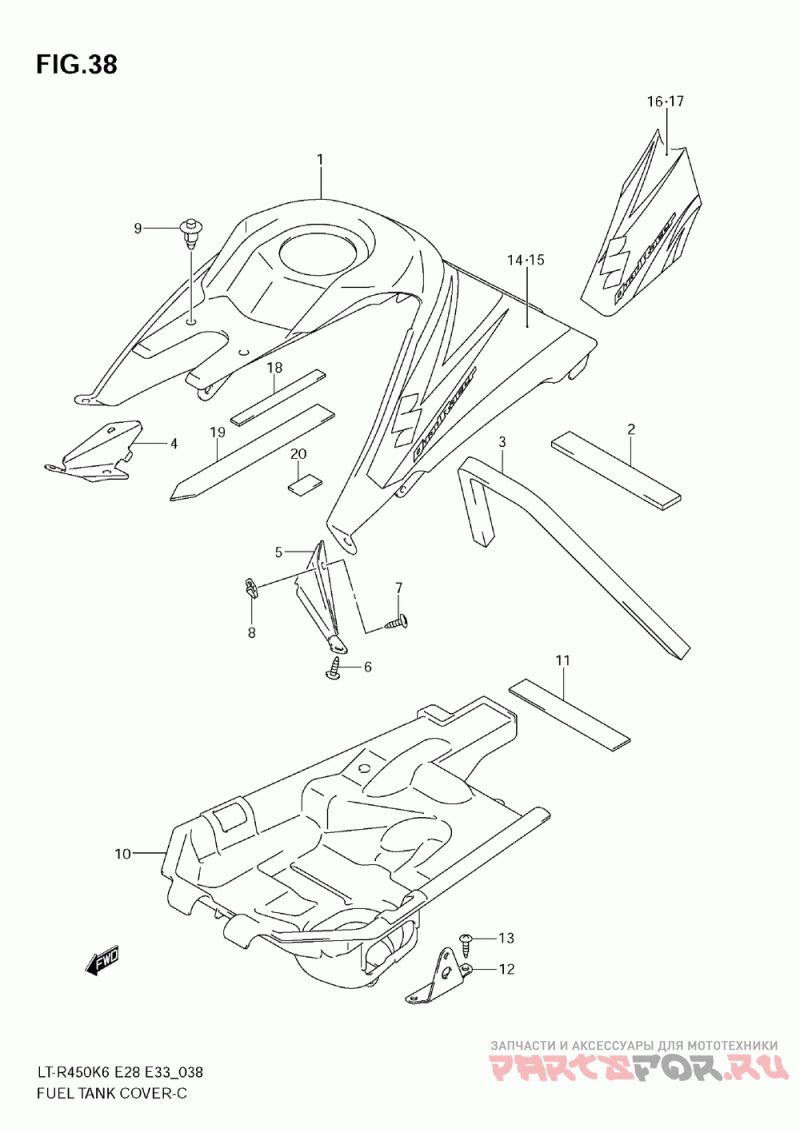

Fuel tank cover (model k6/k7)

Suzuki LT-R450,Z QuadRacer R450

Suzuki
#oem кодцена
1-1
44271-45G00-YU1
Cover, Fuel Tank (yellow)
1-2
44271-45G00-30H
Cover, Fuel Tank (white)
2
47451-38A01
Cushion, Radiator Cover
3
44555-45G00
Cushion, No.2
4
44174-45G00
Крепление правое
5
44184-45G00
Крепление левое
6
03241-0516A
Screw, Inner Cover
7
03241-1516A
Screw, Seat Tail Cover
8
09148-05045
Гайка
9
09409-07333
Clip, Tray
10
44391-45G00
Cover, Fuel Tank Lower
12
44460-45G00
Bracket, Hose Guide
14-1
68115-45G00-CET
Tape, Cover Rh (model K6 For Yu1)
14-2
68115-45G00-CHJ
Tape, Cover Rh (model K6 For 30h)
15-1
68116-45G00-CET
Tape, Cover Lh (model K6 For Yu1)
15-2
68116-45G00-CHJ
Tape, Cover Lh (model K6 For 30h)
16-1
68115-45G10-DSB
Tape, Cover Rh (model K7 For 30h)
16-2
68115-45G10-DSW
Tape, Cover Rh (model K7 For Yu1)
17-1
68116-45G10-DSB
Tape, Cover Lh (model K7 For 30h)
17-2
68116-45G10-DSW
Tape, Cover Lh (model K7 For Yu1)
18
44556-45G00
Cushion, Cover No.1
19
44557-45G00
Cushion, Cover No.3
20
44558-45G00
Cushion, Lower ( Refer To Fig.38b(f-12) For Model K9 )
