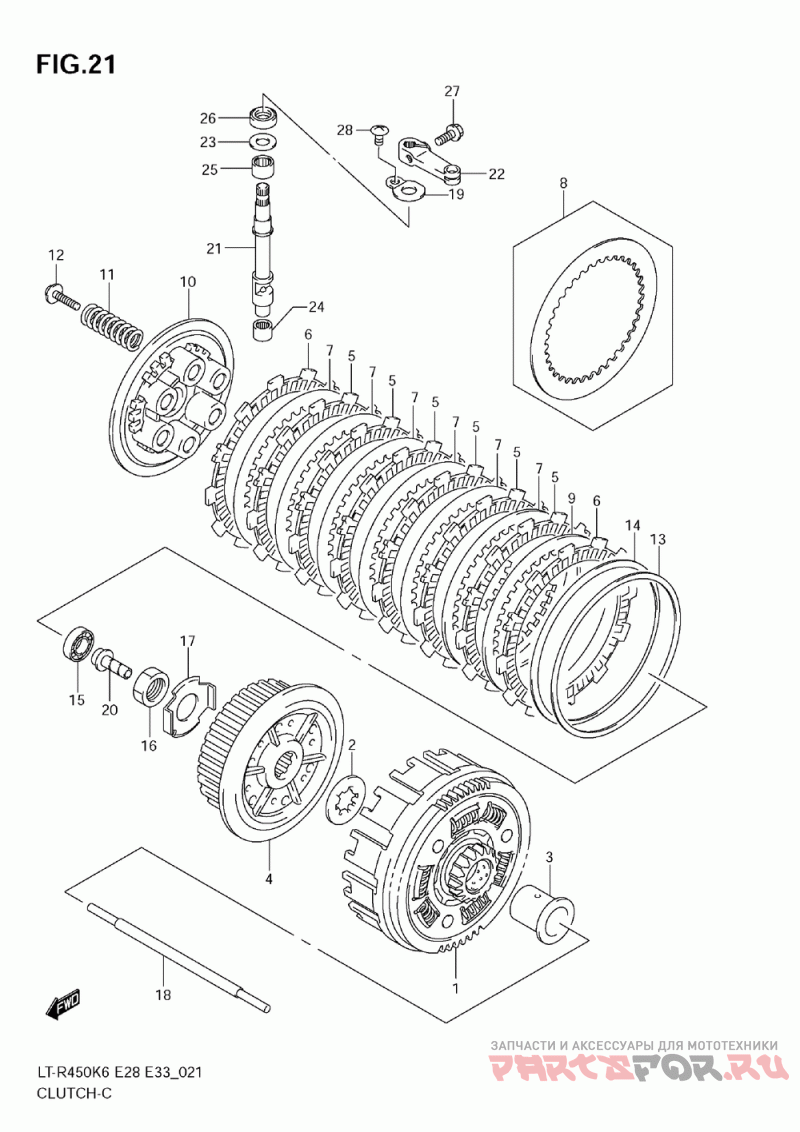

Clutch (model k6/k7)

Suzuki LT-R450,Z QuadRacer R450

Suzuki
#oem кодцена
1
21200-45G00
Gear Assy, Primary Driven (nt:77/18)
2
21415-35G00
Washer, Clutch Sleeve
3
21251-29F00
Spacer, Primary Driven
4
21411-35G11
Hub, Clutch Sleeve
5
21441-45G00
Plate, Drive No.1
6
21441-37F30
Plate, Clutch Drive No.2
7
21451-35G00
Plate, Clutch Driven (t:1.6)
8
21451-45G00
Plate, Driven No.3 (t:2.0)
9
21452-35G00
Plate, Clutch Driven (t:1.6)
10
21462-35G10
Disc, Clutch Pressure
11
09440-18039
Пружина
12
21412-45G00
Bolt, Clutch Spring
13
21471-35G00
Seat, Wave Washer (113.5x121.5x1.2)
14
21472-35G00
Washer, Clutch Plate Wave
15
08110-68040
Bearing, Clutch Release
16
09140-18017
Nut, Clutch Sleeve Hub
17
21416-35G10
Washer, Clutch Sleeve
18
23110-45G00
Rod, Clutch Push
19
23117-05200
Retainer, Cl Rlse Oil Seal
20
23121-45G00
Piece, Cl Rlse
21
23122-45G00
Camshaft, Cl Rlse
22
23271-31D00
Arm, Release
23
09181-10195
Washer, Cl Rlse (10x20x1)
24
09263-10014
Bearing, Cl Rlse Low (10x14x10)
25
09263-12024
Bearing, Cl Rlse Up (12x16x10)
26
09282-10012
Seal, Cl Rlse Arm (10x20x6)
27
01547-0616B
Болт
28
02142-0610B
Screw ( Refer To Fig.21a(d- 3) For Model K8/k9 )
