Сцепление (model k8/k9) для квадроциклов Suzuki LT-R450,Z QuadRacer R450 (2009)

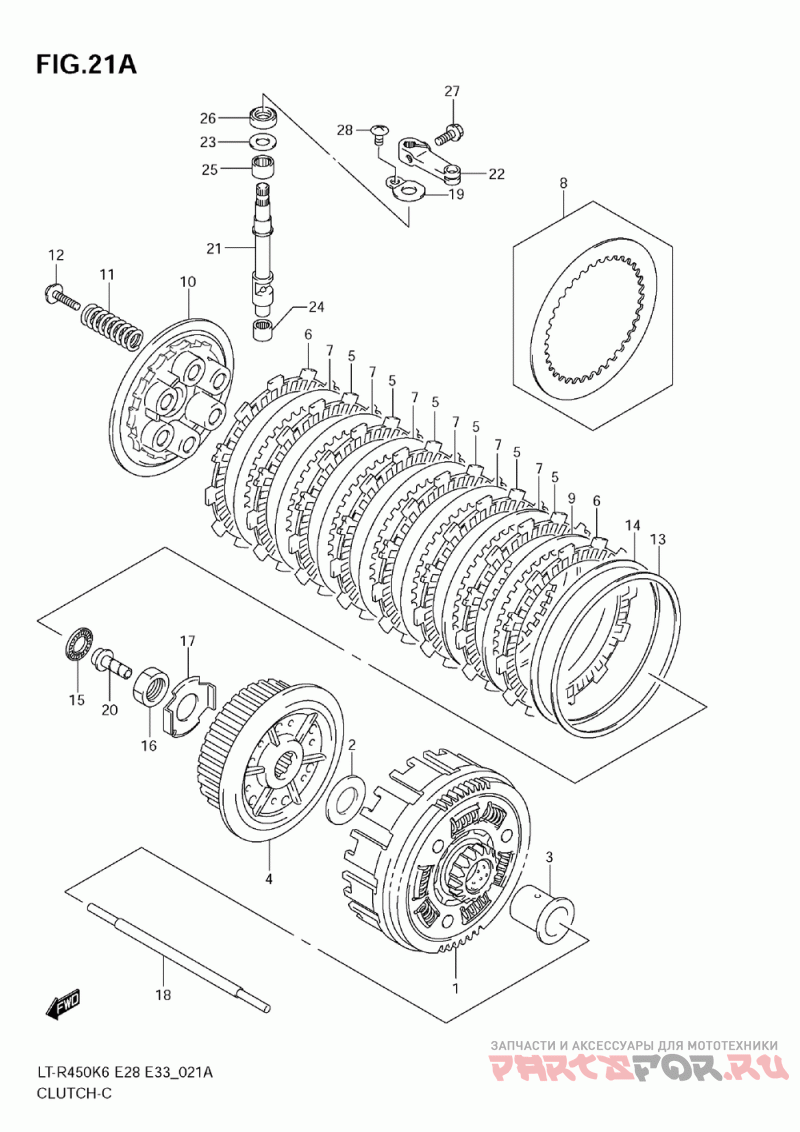

Сцепление (model k8/k9)

Suzuki LT-R450,Z QuadRacer R450

oem код

название

цена

1-1

21200-45G10

Gear Assy, Prima (nt:77/18 Model K8 )

1-2

21200-45G20

Gear Assy Prima (nt:77/18 Model K9 )

09160-22082

Washer, Clutch Hub Thr (22.5x39x3)

21251-29F00

Spacer, Primary Driven

21411-45G00

Hub, Clutch Slee

21441-45G00

Plate, Drive No.1

21441-37F30

Plate, Clutch Drive No.2

21451-35G00

Plate, Clutch Driven (t:1.6)

21451-45G00

Plate, Driven No.3 (t:2.0)

21452-35G00

Plate, Clutch Driven (t:1.6)

Disc, Clutch Pre

Пружина

Bolt, Clutch Spring

Seat, Wave Washer (113.5x121.5x1.2)

21472-35G00

Washer, Clutch Plate Wave

09263-10002

Thrust Bearing (10.1x22x2.8) (10x22x2.8)

09140-18017

Nut, Clutch Sleeve Hub

21416-35G10

Washer, Clutch Sleeve

23110-45G00

Rod, Clutch Push

23117-05200

Retainer, Cl Rlse Oil Seal

Piece, Clutch Pu

Camshaft, Cl Rlse

Arm, Release

Washer, Cl Rlse (10x20x1)

09263-10014

Bearing, Cl Rlse Low (10x14x10)

09263-12024

Bearing, Cl Rlse Up (12x16x10)

09282-10012

Seal, Cl Rlse Arm (10x20x6)

01547-0616A

Bolt, Rr Brake Pipe Clamp

02142-0610B

Винт
