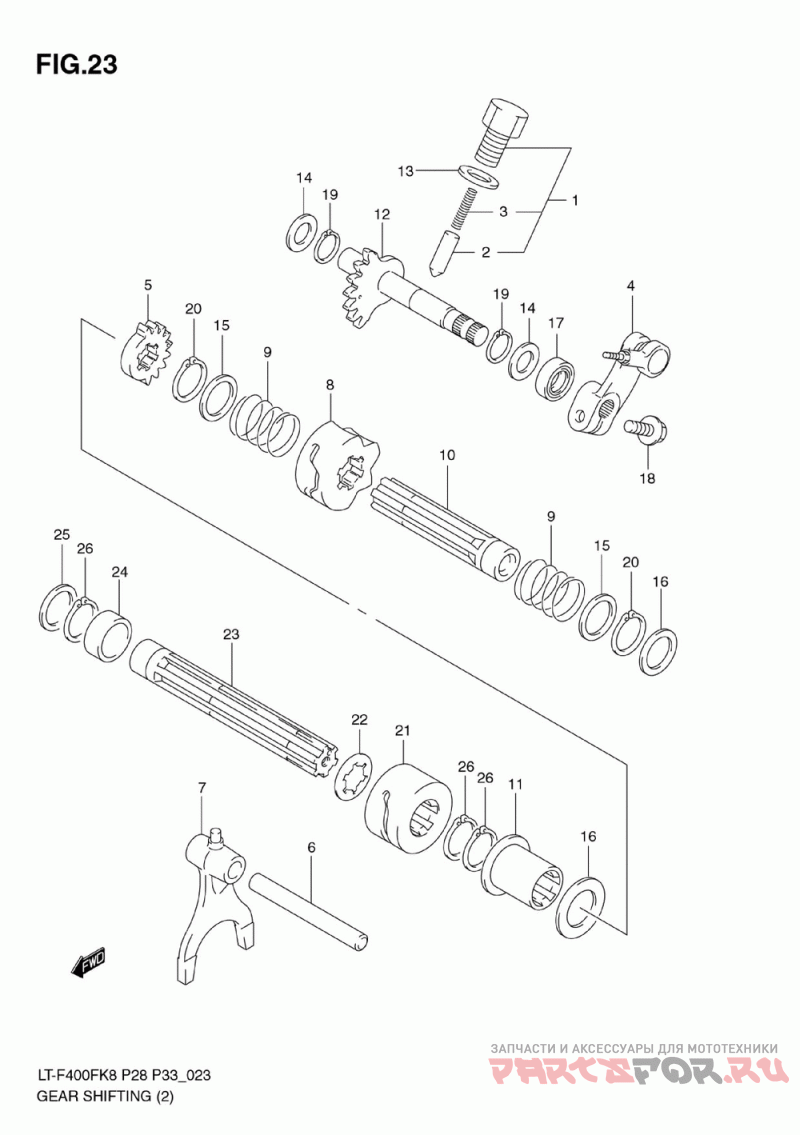

Gear shifting (2)
Suzuki LT-F400F KingQuad 400FS 4x4
| # | oem код | название | цена |
|---|---|---|---|
1 | 25350-38F60 Stopper, Sub T/m ( ) | Stopper, Sub T/m ( ) | |
2 | 25351-38F50 .stopper ( ) | .stopper ( ) | |
3 | 29613-38F60 Spring, Sub T/m ( ) | Spring, Sub T/m ( ) | |
4 | 25360-11H10 Arm, Sub T/m Gea ( ) | Arm, Sub T/m Gea ( ) | |
5 | 25381-38F60 Plate, Sub T/m G ( ) | Plate, Sub T/m G ( ) | |
7 | 29511-38F50 Fork, Sub T/m Gear ( ) | Fork, Sub T/m Gear ( ) | |
8 | 29611-38F60 Cam, Sub T/m Gea ( ) | Cam, Sub T/m Gea ( ) | |
9 | 29612-38F50 Spring, Sub T/m Shift ( ) | Spring, Sub T/m Shift ( ) | |
10 | 29620-38F50 Shaft, Sub T/m Gear ( ) | Shaft, Sub T/m Gear ( ) | |
11 | 29625-38F50 Joint, Shift Cam Shaft ( ) | Joint, Shift Cam Shaft ( ) | |
12 | 29640-38F60 Shaft, Sub T/m S ( ) | Shaft, Sub T/m S ( ) | |
13 | 09168-14004 .gasket (14.1x18x1.5) (13.8x18.8x0.4 ) | .gasket (14.1x18x1.5) (13.8x18.8x0.4 ) | |
14 | 09181-12167 Washer, Oil Pump Driven Gear (12x20x1.0 ) | Washer, Oil Pump Driven Gear (12x20x1.0 ) | |
15 | 09181-20139 Washer (20x26x1) (20x26x1.0 ) | Washer (20x26x1) (20x26x1.0 ) | |
16 | 09181-20251 Shim (t:1.0) (20x34x1.0 ) | Shim (t:1.0) (20x34x1.0 ) | |
17 | 09285-12006 Oil Seal (12x22x9) ( ) | Oil Seal (12x22x9) ( ) | |
18 | 01550-0620B Bolt ( ) | Bolt ( ) | |
19 | 08331-3112A Circlip, Gear Shift Lever ( ) | Circlip, Gear Shift Lever ( ) | |
20 | 08331-3120A Circlip, Kick Start Drive Gea ( ) | Circlip, Kick Start Drive Gea ( ) | |
21 | 25321-38F70 Cam, Reverse Shi ( ) | Cam, Reverse Shi ( ) | |
22 | 25322-38F70 Plate, Shift Cam ( ) | Plate, Shift Cam ( ) | |
23 | 25531-38F50 Shaft, Reverse Shift ( ) | Shaft, Reverse Shift ( ) | |
24 | 25532-38F70 Spacer, Reverse ( ) | Spacer, Reverse ( ) | |
25 | 09181-20167 Shim (20x28x1.0) (20x28x1.0 ) | Shim (20x28x1.0) (20x28x1.0 ) | |
6 | 25411-13A01 Shaft, Gear Shif ( ) | Shaft, Gear Shif ( ) | |
26 | 08331-3120A Circlip ( ) | Circlip ( ) |
